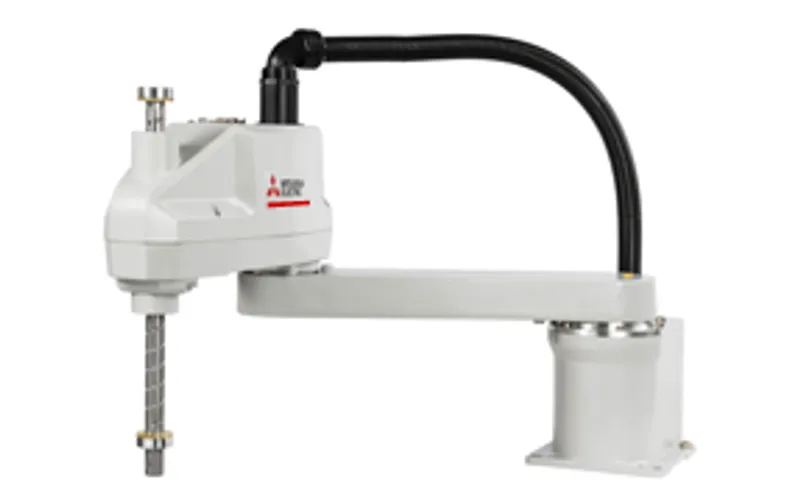

Mitsubishi Electric RH-6CRH7020-D

Mitsubishi MELFA robot RH-CRH series

MPN
RH-6CRH7020-D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RH-6CRH7020-D?

The Mitsubishi Electric RH-6CRH7020-D is a RH-CRH series in the MELFA robot. Standalone. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELFA robot
CategoryRH-CRH series
OutlineStandalone

Specifications

CategoryRobot arm
SeriesRH-CRH series
StructureHorizontal articulated
TypeRH-6CRH7020-D
Environmental specificationsStandard
Protection degreeIP20
InstallationFloor type
Degrees of freedom4
Drive systemAC servo motor
Position detection methodAbsolute encoder
Load capacity: Maximum: kg6
Load capacity: Rated: kg2
Arm length: No.1 arm: mm425
Arm length: No.2 arm: mm275
Maximum reach radius: mm700
Operating range: J1: deg-132 to +132
Operating range: J2: deg-150 to +150
Operating range: J3(Z): mm200
Operating range: J4(θ): deg-360 to +360
Maximum speed: J1: deg/s360
Maximum speed: J2: deg/s720
Maximum speed: J3(Z): mm/s1100
Maximum speed: J4(θ): deg/s2500
Maximum speed: J1+J2: mm/s7800 (*1)
Cycle time: s0.43 (*2)
Position repeatability: Y-X composite: mm±0.02
Position repeatability: J3(Z): mm±0.01
Position repeatability: J4(θ): deg±0.01
Ambient temperature: ℃0 to 40
Mass: kg18
Tolerable moment: Rating: kgm 20.01
Tolerable moment: Maximum: kgm 20.12(0.18) (*3)
Tool wiringD-sub 15 pins
Tool pneumatic pipesø6 × 2, ø4 × 1
Machine cable5m (connector on both ends)
Connected controller TypeCR800-CHD
Control TypeStandalone

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

RH-6CRH7020-D: frequently asked questions

When can RH-6CRH7020-D be shipped?

RH-6CRH7020-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RH-6CRH7020-D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RH-6CRH7020-D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RH-6CRH7020-D, subject to availability and destination.
