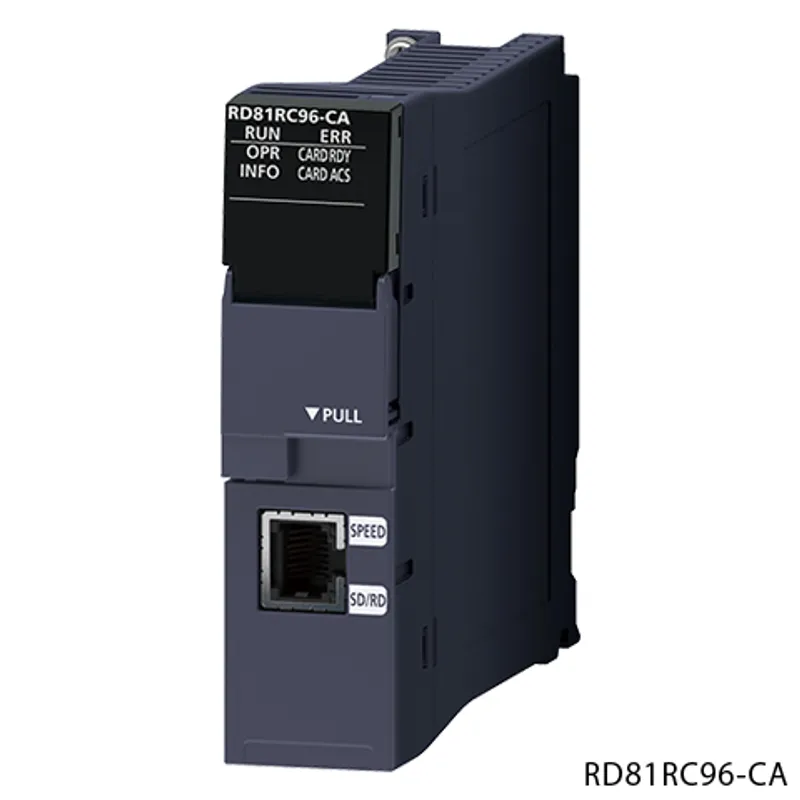

RD81RC96-CA Mitsubishi MELSEC iQ-R Series Camera recorder

MPN: RD81RC96-CA · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Information/network
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RD81RC96-CA be shipped?

RD81RC96-CA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RD81RC96-CA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RD81RC96-CA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD81RC96-CA, subject to availability and destination.

The Mitsubishi Electric RD81RC96-CA is a camera recorder in the MELSEC iQ-R Series. 10BASE-T/100BASE-TX/1000BASE-T: 1 channel, logging of all device and label data, camera image. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Camera recorder
Outline	10BASE-T/100BASE-TX/1000BASE-T: 1 channel, logging of all device and label data, camera image

Recording function specifications

Number of settings	Up to 4
Maximum number of device and label data points that can be sampled/accumulated: Maximum number of points that can be sampled (CPU module)	6M bytes (total of all settings)
Maximum number of device and label data points that can be sampled/accumulated: Maximum number of points that can be accumulated (Camera recorder module)	800M bytes (total of all settings)
Maximum capacity for accumulating video data	800M bytes (total of all settings)
Memory capacity: SD memory card	Differs depending on the SD memory card used. (SD/SDHC memory card: 16G bytes maximum)
Memory capacity: File server	File server capacity

Hardware specifications

Ethernet: Interface	10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet: Data transmission speed	10 Mbps (10BASE-T), 100 Mbps (100BASE-TX), 1 Gbps (1000BASE-T)
Ethernet: Transmission method	Base band
Ethernet: Number of cascaded connections	Maximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX)
Ethernet: Maximum segment length	100 m
Ethernet: Supported function	Auto-negotiation function (automatic recognition of communication speed/communication method) Auto-MDI/MDI-X (automatic recognition of a straight/crossing cable)
Ethernet: IP version	IPv4
SD memory card slot: Supply power voltage	3.3 V DC
SD memory card slot: Supply power capacity	Up to 200 mA
SD memory card slot: Interface	SD memory card, SDHC memory card
SD memory card slot: Number of installable cards	1
Number of occupied I/O points	32 points (I/O assignment: Intelligent 32 points)
Clock	• Acquired from a CPU module (in multiple CPU system, CPU No.1) • Time accuracy after obtaining the time is a daily variation of ±9.504 seconds
Internal current consumption (5 V DC)	1.0 A
External dimensions: Height	106 mm
External dimensions: Width	27.8 mm
External dimensions: Depth	110 mm
Weight	0.23 kg
Number of preset registrations	Up to 100,000

Specifications

General specifications

Refer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R System Recorder User's Manual (Startup) (SH-082279ENG-J)	PDF · 1.08MB
MELSEC iQ-R System Recorder User's Manual (Application) (SH-082281ENG-O)	PDF · 5.29MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
Before Using the Product (BCN-P5999-1273)	PDF · 0.13MB
Safety Guidelines (IB-0800525)	PDF · 11.79MB
