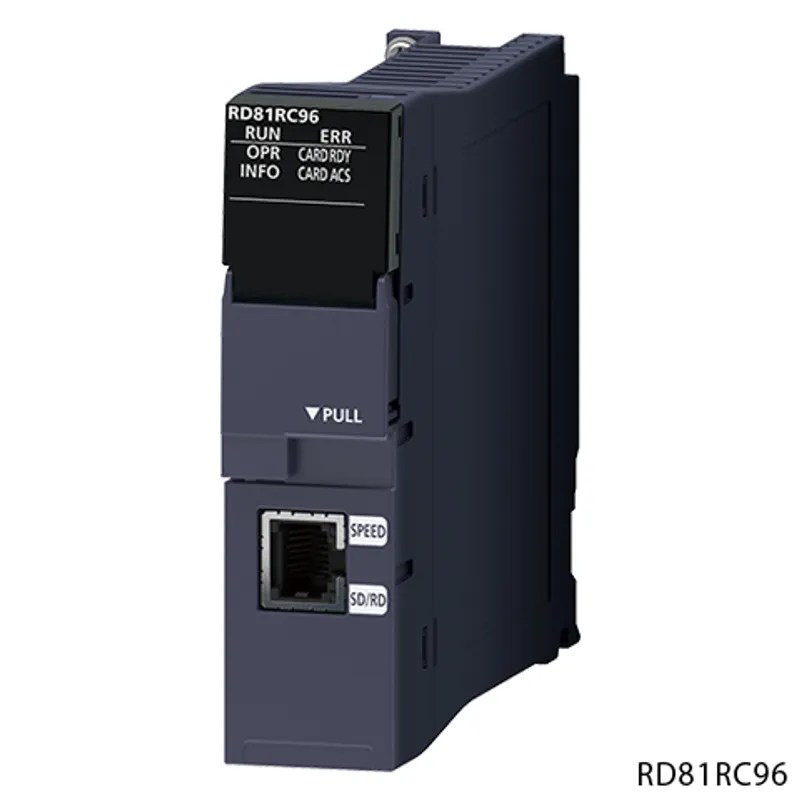

Mitsubishi Electric RD81RC96

Mitsubishi MELSEC iQ-R Series Recorder

MPN
RD81RC96
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RD81RC96?

The Mitsubishi Electric RD81RC96 is a recorder in the MELSEC iQ-R Series. 10BASE-T/100BASE-TX/1000BASE-T: 1 channel, logging of all device and label data. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryRecorder
Outline10BASE-T/100BASE-TX/1000BASE-T: 1 channel, logging of all device and label data

Recording function specifications

Number of settingsUp to 4
Maximum number of device and label data points that can be sampled/accumulated: Maximum number of points that can be sampled (CPU module)6M bytes (total of all settings)
Maximum number of device and label data points that can be sampled/accumulated: Maximum number of points that can be accumulated (Recorder module)800M bytes (total of all settings)
Memory capacity: SD memory cardDiffers depending on the SD memory card used. (SD/SDHC memory card: 16G bytes maximum)
Memory capacity: File serverFile server capacity

Hardware specifications

Ethernet: Interface10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet: Data transmission speed10 Mbps (10BASE-T), 100 Mbps (100BASE-TX), 1 Gbps (1000BASE-T)
Ethernet: Transmission methodBase band
Ethernet: Number of cascaded connectionsMaximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX)
Ethernet: Maximum segment length100 m
Ethernet: Supported functionAuto-negotiation function (automatic recognition of communication speed/communication method) Auto-MDI/MDI-X (automatic recognition of a straight/crossing cable)
Ethernet: IP versionIPv4
SD memory card slot: Supply power voltage3.3 V DC
SD memory card slot: Supply power capacityUp to 200 mA
SD memory card slot: InterfaceSD memory card, SDHC memory card
SD memory card slot: Number of installable cards1
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Clock• Acquired from a CPU module (in multiple CPU system, CPU No.1) • Time accuracy after obtaining the time is a daily variation of ±9.504 seconds
Internal current consumption (5 V DC)1.0 A
External dimensions: Height106 mm
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.23 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

RD81RC96: frequently asked questions

When can RD81RC96 be shipped?

RD81RC96 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RD81RC96 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RD81RC96 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD81RC96, subject to availability and destination.
