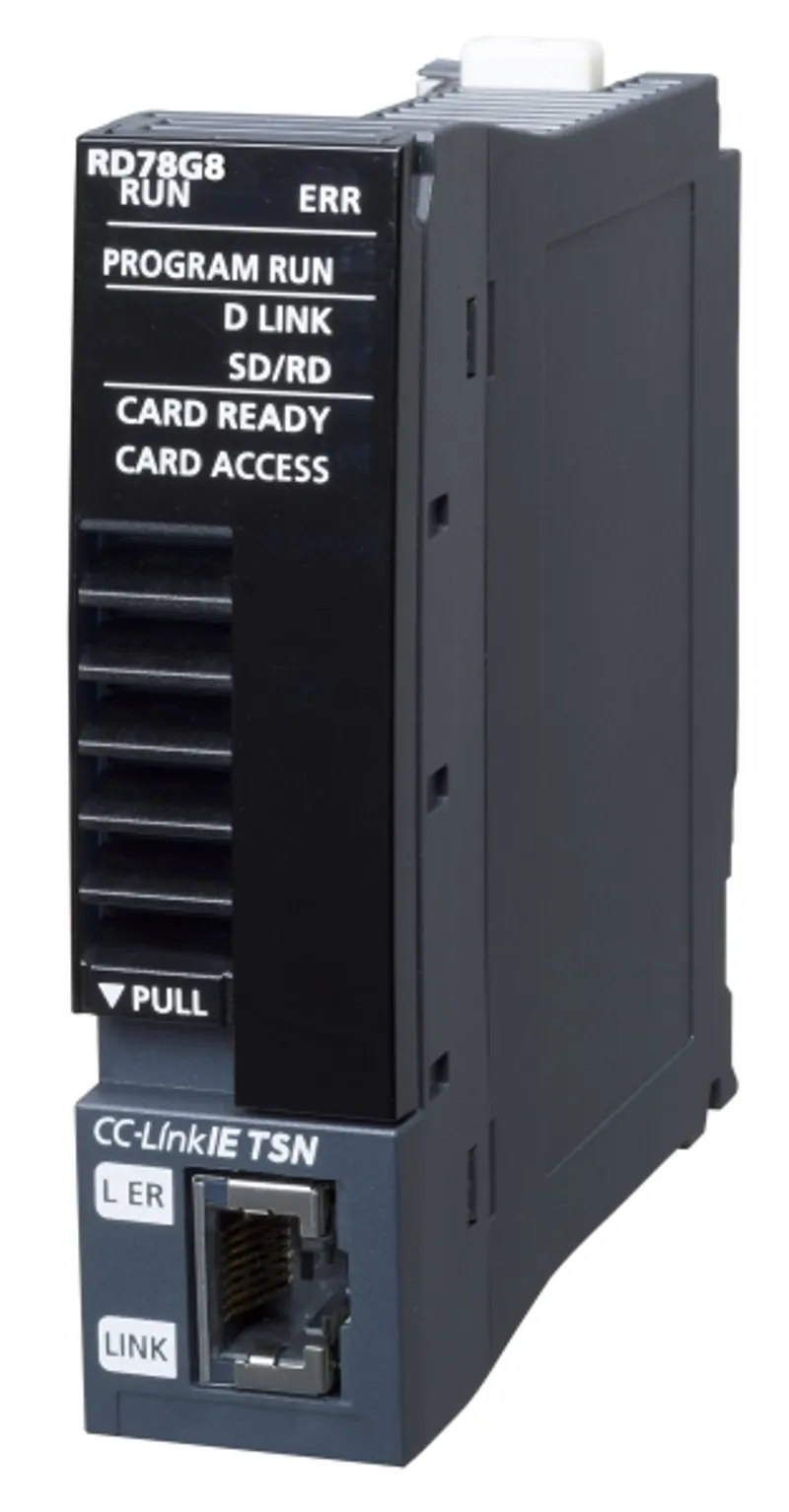

What is the Mitsubishi Electric RD78G8?

The Mitsubishi Electric RD78G8 is a motion in the MELSEC iQ-R Series. Maximum number of control axes: 8 axes, Minimum operation cycle: 62.5 μs, CC-Link IE TSN connection, Positioning control, synchronous control, speed control, torque control. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryMotion
TypeCC-Link IE TSN-compatible
OutlineMaximum number of control axes: 8 axes, Minimum operation cycle: 62.5 μs, CC-Link IE TSN connection, Positioning control, synchronous control, speed control, torque control

[Control specifications] Simple Motion mode

Number of control axesUp to 8 axes
Operation cycle (operation cycle settings) *1250 μs, 500 μs, 1000 μs, 2000 μs, 4000 μs
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation, helical interpolation (3 axes)
Control methodPositioning control, continuous path control, speed control, speed-torque control, synchronous control, continuous operation to torque control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation functionBacklash compensation, electronic gear, near pass function
Synchronous controlSynchronous encoder input, command generation axis, cam, phase compensation, cam auto-generation
Control unitmm, inch, degree, pulse
Positioning control methodMotion profile table
Number of positioning data600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works3 or a sequence program.)
BackupParameters, positioning data, and block start data can be saved on flash ROM (batteryless backup)
Home position returnDriver home position return *2
Positioning controlLinear interpolation control (up to 4 axes) *3 , fixed-pitch feed control (up to 4 axes), 2-axis circular interpolation (auxiliary point-specified, central point-specified), helical interpolation, speed control (up to 4 axes), speed-position switching control (INC mode, ABS mode), position-speed switching control (INC mode), current value change
Manual controlJOG operation, inching operation, manual pulse generator operation (up to 1 module)
Speed-torque controlSpeed control not including position loop, torque control, continuous operation to torque control
Absolute position systemProvided (batteryless)
Synchronous encoder operation functionUp to the number of axes of the connected servo amplifiers (via a servo amplifier or a CPU *4 )
Speed limitSpeed limit value, JOG speed limit value
Torque limit functionTorque limit value same setting, torque limit value individual setting
Forced stopValid/invalid setting
Software stroke limit functionMovable range check with feed current value or with machine feed value
Hardware stroke limit functionProvided
Speed changeProvided
Acceleration/deceleration processing changeAcceleration/deceleration time
Torque change functionProvided
Torque limit value changeProvided
Target position change functionSpeed to a target position address and a target position is changeable.
Override0 to 300 %
Event history functionProvided
Amplifier-less operation functionProvided
M-code output functionProvided
Step functionDeceleration unit step, data No. unit step
Skip functionVia a PLC CPU or an external command signal
Parameter initialization functionProvided
External input signal setting functionVia a CPU (buffer memory) or a servo amplifier
Teaching functionProvided
Mark detection functionContinuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signalSignals for the number of axes of the connected servo amplifiers
Mark detection function: Mark detection setting16 settings
Optional data monitor functionUp to 4 points/axis
Functional safetySafety communication (network connection), DI/O connection of the servo amplifier
Driver communication functionProvided *5
Inter-module synchronizationProvided
CC-Link IE TSN safety communication functionProvided
Digital oscilloscope functionBit data: 16 channels, word data: 16 channels *6
Automatic returnProvided
Number of slots occupied1
5 V DC internal current consumption [A]1.93
Servo amplifier connection methodCC-Link IE TSN
CC-Link IE TSN ClassB
Number of occupied I/O points32 points (I/O allocation: intelligent function module 32 points)
Maximum distance between stations [m]CC-Link IE TSN: 100
PERIPHERAL I/FVia a CPU module (USB, Ethernet)
Extended memorySD/SDHC memory card
Mass [kg]0.26
Exterior dimensions [mm]106.0 (H) x 27.8 (W) x 110.0 (D)

[Control specifications] PLCopen ® Motion Control FB Mode

Number of control axesUp to 8 axes
Operation cycle (operation cycle settings) *162.5 μs, 125 μs, 250 μs, 500 μs, 1000 μs, 2000 μs, 4000 μs, 8000 μs
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation
Control methodPositioning control, speed control, torque control, synchronous control, cam control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, jerk acceleration/deceleration, acceleration/deceleration time fixed method
Compensation functionDriver unit conversion
Synchronous control• Module: master axis, cam, gear • Master axis: real drive axis, virtual drive axis, real encoder axis, virtual encoder axis, virtual linked axis
Control unitUnit character string and decimal digit can be defined by users. (The following are given units: mm, inch, degree, pulse)
Programming language• PLC CPU: ladder diagram, function block diagram/ladder diagram, structured text language • Motion module: structured text language
BackupParameters and programs can be saved on a flash ROM (batteryless backup)
Home position returnDriver home position return *2
Positioning controlLinear interpolation control (up to 4 axes), 2-axis circular interpolation (border point-specified, central point-specified, radius-specified circular interpolation), speed control, current value change
Manual controlJOG operation
Direct control: Speed controlSpeed control not including position loop, speed control including position loop
Direct control: Torque controlTorque control, continuous operation to torque control
Absolute position systemProvided (batteryless)
Speed limitSpeed command range
Torque limit functionTorque limit value (positive/negative direction)
Forced stopValid/invalid setting
Software stroke limit functionMovable range check with an address of the set position or the feed machine position.
Hardware stroke limit functionProvided
Speed changeProvided
Acceleration/deceleration processing changeAcceleration/deceleration, acceleration/deceleration time
Torque change functionProvided
Torque limit value changeProvided
Target position change functionTarget position change, movement distance change
Override0.00 to 10.00 (0 to 1000 %)
Event history functionProvided
LoggingData logging, real-time monitor
Axis emulate (amplifier-less operation)Provided
Touch probe (mark detection)Provided
Monitoring of servo dataCyclic transmission, transient transmission
Servo system recorder functionProvided
CC-Link IE TSN safety communication functionProvided
Inter-module synchronizationProvided
Number of module occupied slots1
5 V DC internal current consumption [A]1.93
Servo amplifier connection methodCC-Link IE TSN
CC-Link IE TSN ClassB
Number of occupied I/O points32 points, 1 slot (I/O assignment: 32 points)
Maximum distance between stations [m]CC-Link IE TSN: 100
PERIPHERAL I/FVia a CPU module (USB, Ethernet)
Extended memorySD/SDHC memory card
Memory capacity: Built-in memory16 M bytes
Memory capacity: SD memory cardUp to 32 G bytes
Mass [kg]0.26
Exterior dimensions [mm]106.0 (H) x 27.8 (W) x 110.0 (D)

RD78G8: frequently asked questions

When can RD78G8 be shipped?

RD78G8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RD78G8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RD78G8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD78G8, subject to availability and destination.
