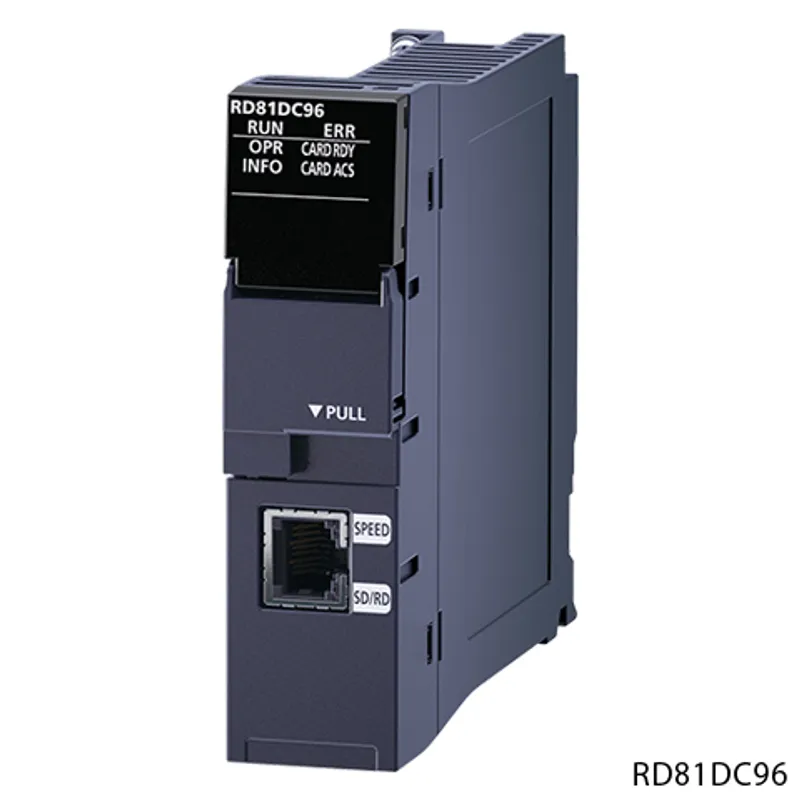

Mitsubishi Electric RD81DC96

Mitsubishi MELSEC iQ-R Series High speed data communication

MPN
RD81DC96
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RD81DC96?

The Mitsubishi Electric RD81DC96 is a high speed data communication in the MELSEC iQ-R Series. 10BASE-T/100BASE-TX/1000BASE-T: 1 channel, label function/streaming transfer function. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryHigh speed data communication
Outline10BASE-T/100BASE-TX/1000BASE-T: 1 channel, label function/streaming transfer function

Software specifications

Number of transfer-enabled personal computersUp to four host computers Note that the following limits apply: • Up to two host computers as a transfer destination of high speed sampling label for streaming transfer • Up to four simultaneous connections from one host computer
Streaming transfer function: The maximum number of registered data to be transferred (the size of registered data)• Up to 262144 units of data (262144 words) per module • Up to 65536 units of data per connection However, the maximum of 32768 units of data (32768 words) is applied for high speed sampling labels per module.
Streaming transfer function: Transfer size: High speed data samplingUp to 3276800 words words per transfer (registered data to be transferred × number of sampling times of transfer cycle)
Streaming transfer function: Transfer size: General data samplingRegistered data to be transferred per transfer (up to 262144 words)
Streaming transfer function: Data transfer interval: High speed data sampling• Sampling synchronization: batch-transfer of multiple records (2...100 records) is possible. • Time specification: 0.5...100 ms (data sampling interval is the shortest)
Streaming transfer function: Data transfer interval: General data samplingSampling synchronization
Streaming transfer function: Data sampling interval: High speed data sampling• Sequence scan time synchronization • 0.5...0.9 ms, 1...32767 ms (sequence scan time is the shortest)
Streaming transfer function: Data sampling interval: General data sampling0.1...0.9 s, 1...32767 s
Streaming transfer function: Data type• Bit • Word [Signed] • Double Word [Signed] • Word [Unsigned]/Bit String [16-bit] • Double Word [Unsigned]/Bit String [32-bit] • FLOAT [Single Precision] • FLOAT [Double Precision] • 16bit BCD • 32bit BCD • String: 1...8192 characters (up to 8192 bytes) • String [Unicode]: 1...4096 characters (up to 8192 bytes) • Raw: 1...8192 bytes
Streaming transfer function: Data output format• Bit • Word [Signed] • Double Word [Signed] • Word [Unsigned]/Bit String [16-bit] • Double Word [Unsigned]/Bit String [32-bit] • FLOAT [Single Precision] • FLOAT [Double Precision] • String • String [Unicode] • Raw
Data read/data write: The number of data (the number of devices)Up to 65536 units of data per transfer
Data read/data write: Transfer sizeSpecified data to be transferred per transfer (up to 262144 words words)
Authentication function• Host computer IP address • Access account Number of accounts: up to 16 User name: 1 to 20 characters Password: 6 to 32 characters
Maximum number of connectable programmable controller CPUsUp to 64 CPUs
Label function: The maximum number of labels: High speed data sampling• Up to 1024 labels per label group • Total: up to 32768 labels
Label function: The maximum number of labels: General data sampling• Up to 1024 labels per label group • Total: up to 65536 labels
Label function: The maximum number of device points: High speed data sampling• Up to 4096 points per label group • Total: up to 32768 points
Label function: The maximum number of device points: General data sampling• Up to 4096 points per label group • Total: up to 262144 points

Hardware specifications

Ethernet: Interface10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet: Data transmission speed10 Mbps (10BASE-T), 100 Mbps (100BASE-TX), 1 Gbps (1000BASE-T)
Ethernet: Transmission methodBase band
Ethernet: Number of cascaded connectionsMaximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX), Consult the manufacturer of the repeater hub used. (1000BASE-T)
Ethernet: Maximum segment length100 m
Ethernet: Supported functionAuto-negotiation function (automatic recognition of communication speed/communication method) Auto-MDI/MDI-X (automatic recognition of a straight/crossing cable)
Ethernet: IP versionIPv4
SD memory card slot: Supply power voltage3.3 V DC
SD memory card slot: Supply power capacityUp to 200 mA
SD memory card slot: InterfaceSD memory card, SDHC memory card
SD memory card slot: Number of installable cards1
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Clock• Acquired from a CPU module (in multiple CPU system, CPU No.1) • Time accuracy after obtaining the time is a daily variation of ±9.504 seconds
Internal current consumption (5 V DC)1.1 A
External dimensions: Height106 mm
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.24 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

RD81DC96: frequently asked questions

When can RD81DC96 be shipped?

RD81DC96 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RD81DC96 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RD81DC96 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD81DC96, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric RD78G64 – Mitsubishi MELSEC iQ-R Series Motion
Mitsubishi Electric
RD78G64

Mitsubishi MELSEC iQ-R Series Motion

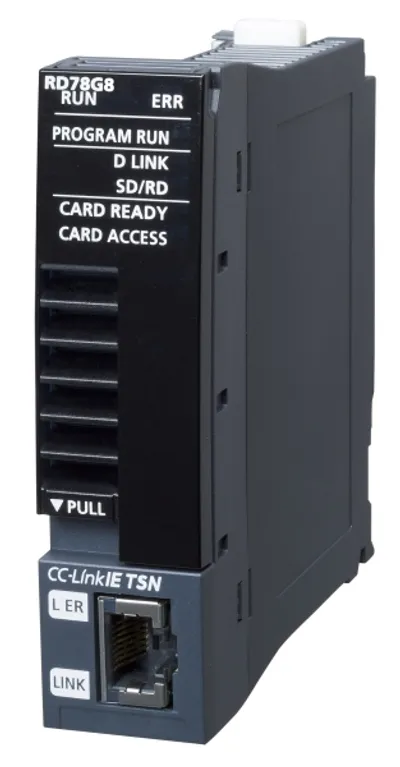

Mitsubishi Electric RD78G8 – Mitsubishi MELSEC iQ-R Series Motion
Mitsubishi Electric
RD78G8

Mitsubishi MELSEC iQ-R Series Motion

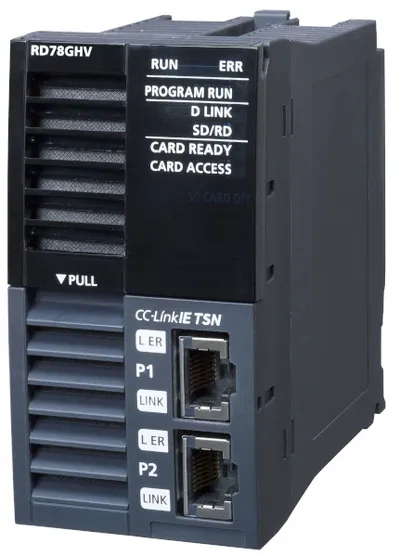

Mitsubishi Electric RD78GHV – Mitsubishi MELSEC iQ-R Series Motion
