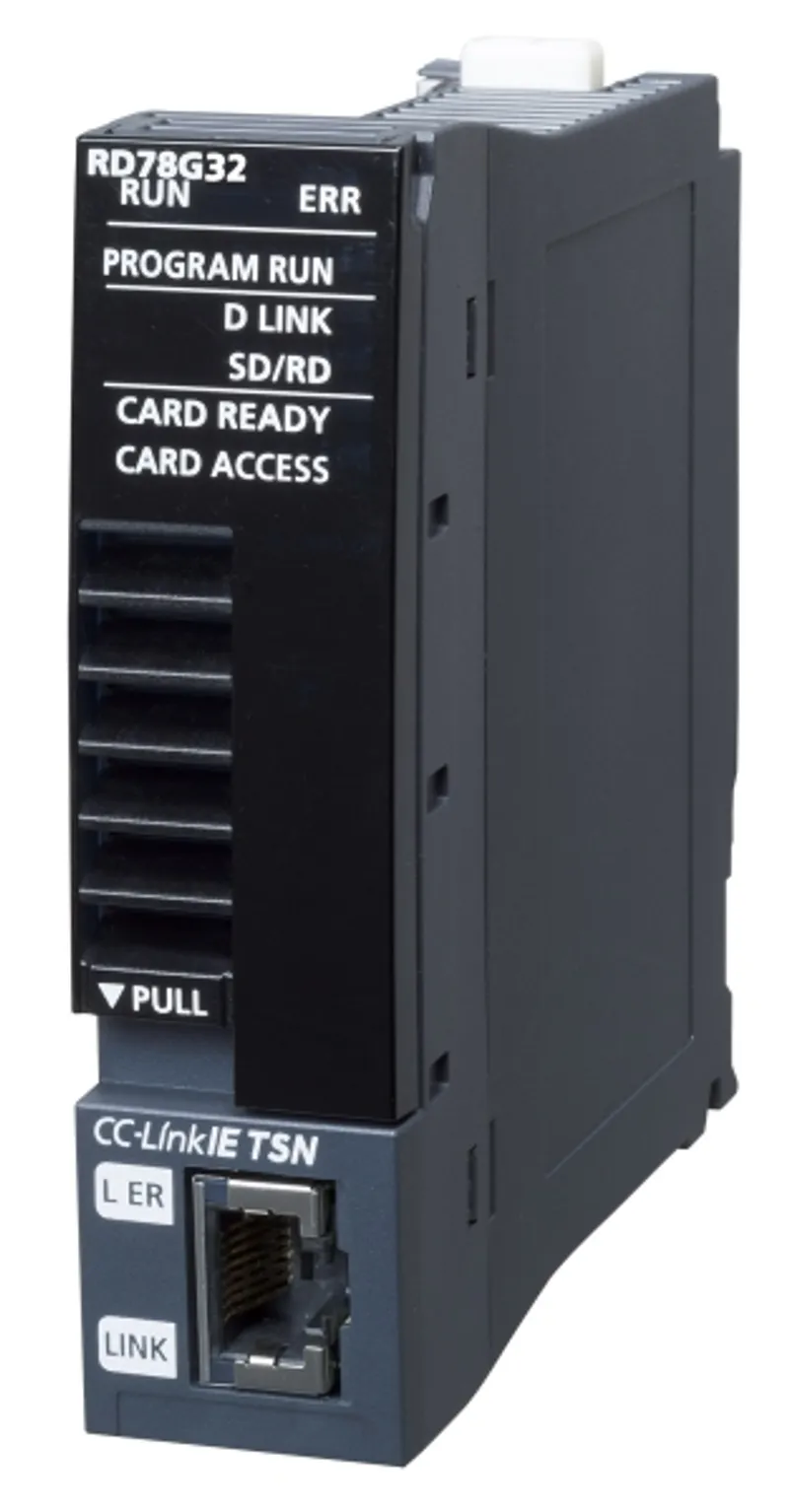

Mitsubishi Electric RD78G32

Mitsubishi MELSEC iQ-R Series Motion

MPN
RD78G32
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RD78G32?

The Mitsubishi Electric RD78G32 is a motion in the MELSEC iQ-R Series. Maximum number of control axes: 32 axes, Minimum operation cycle: 62.5 μs, CC-Link IE TSN connection, Positioning control, synchronous control, speed control, torque control. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryMotion
TypeCC-Link IE TSN-compatible
OutlineMaximum number of control axes: 32 axes, Minimum operation cycle: 62.5 μs, CC-Link IE TSN connection, Positioning control, synchronous control, speed control, torque control

[Control specifications] PLCopen ® Motion Control FB Mode

Number of control axesUp to 32 axes
Operation cycle (operation cycle settings) *162.5 μs, 125 μs, 250 μs, 500 μs, 1000 μs, 2000 μs, 4000 μs, 8000 μs
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation
Control methodPositioning control, speed control, torque control, synchronous control, cam control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, jerk acceleration/deceleration, acceleration/deceleration time fixed method
Compensation functionDriver unit conversion
Synchronous control• Module: master axis, cam, gear • Master axis: real drive axis, virtual drive axis, real encoder axis, virtual encoder axis, virtual linked axis
Control unitUnit character string and decimal digit can be defined by users. (The following are given units: mm, inch, degree, pulse)
Programming language• PLC CPU: ladder diagram, function block diagram/ladder diagram, structured text language • Motion module: structured text language
BackupParameters and programs can be saved on a flash ROM (batteryless backup)
Home position returnDriver home position return *2
Positioning controlLinear interpolation control (up to 4 axes), 2-axis circular interpolation (border point-specified, central point-specified, radius-specified circular interpolation), speed control, current value change
Manual controlJOG operation
Direct control: Speed controlSpeed control not including position loop, speed control including position loop
Direct control: Torque controlTorque control, continuous operation to torque control
Absolute position systemProvided (batteryless)
Speed limitSpeed command range
Torque limit functionTorque limit value (positive/negative direction)
Forced stopValid/invalid setting
Software stroke limit functionMovable range check with an address of the set position or the feed machine position.
Hardware stroke limit functionProvided
Speed changeProvided
Acceleration/deceleration processing changeAcceleration/deceleration, acceleration/deceleration time
Torque change functionProvided
Torque limit value changeProvided
Target position change functionTarget position change, movement distance change
Override0.00 to 10.00 (0 to 1000 %)
Event history functionProvided
LoggingData logging, real-time monitor
Axis emulate (amplifier-less operation)Provided
Touch probe (mark detection)Provided
Monitoring of servo dataCyclic transmission, transient transmission
Servo system recorder functionProvided
CC-Link IE TSN safety communication functionProvided
Inter-module synchronizationProvided
Number of module occupied slots1
5 V DC internal current consumption [A]1.93
Servo amplifier connection methodCC-Link IE TSN
CC-Link IE TSN ClassB
Number of occupied I/O points32 points, 1 slot (I/O assignment: 32 points)
Maximum distance between stations [m]CC-Link IE TSN: 100
PERIPHERAL I/FVia a CPU module (USB, Ethernet)
Extended memorySD/SDHC memory card
Memory capacity: Built-in memory16 M bytes
Memory capacity: SD memory cardUp to 32 G bytes
Mass [kg]0.26
Exterior dimensions [mm]106.0 (H) x 27.8 (W) x 110.0 (D)

RD78G32: frequently asked questions

When can RD78G32 be shipped?

RD78G32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RD78G32 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RD78G32 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD78G32, subject to availability and destination.
