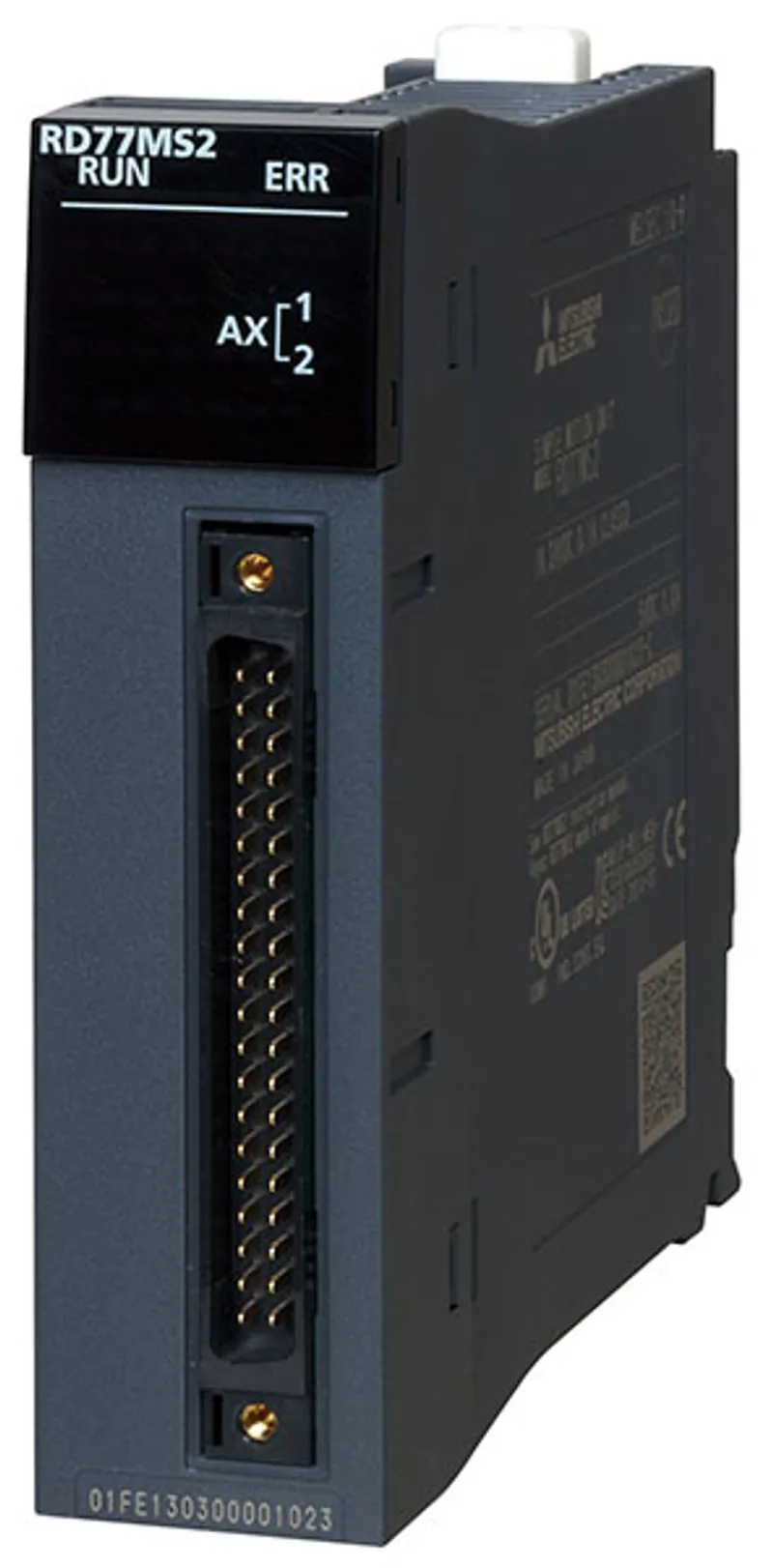

Mitsubishi Electric RD77MS2

Mitsubishi MELSEC iQ-R Series Simple motion

MPN
RD77MS2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RD77MS2?

The Mitsubishi Electric RD77MS2 is a simple motion in the MELSEC iQ-R Series. Maximum number of control axis: 2 axes, SSCNET III/H connection, Positioning control, synchronous control, speed-torque control, continuous operation to torque control. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategorySimple motion
TypeSSCNETⅢ/H-compatible
OutlineMaximum number of control axis: 2 axes, SSCNET III/H connection, Positioning control, synchronous control, speed-torque control, continuous operation to torque control

Control specifications

Number of control axesUp to 2 axes (virtual servo amplifier axis included)
Operation cycle (operation cycle settings) *10.444 ms, 0.888 ms, 1.777 ms, 3.555 ms
Interpolation functionLinear interpolation (up to 2 axes), 2-axis circular interpolation
Control methodPositioning control, speed control, speed-torque control, speed-position switching control, fixed-pitch feed, advanced synchronous control, cam control, continuous path control, position-speed switching control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation functionBacklash compensation, electronic gear, near pass function
Synchronous controlSynchronous encoder input, cam, phase compensation, cam auto-generation
Control unitmm, inch, degree, pulse
Positioning control methodMotion profile table
Number of positioning data600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works3 or a sequence program.)
BackupParameters, positioning data, and block start data can be saved on flash ROM (batteryless backup)
Home position returnProximity dog method, count method 1, count method 2, data set method, scale home position signal detection method (fast home position return control, home position return retry function, and home position shift function provided)
Positioning controlLinear interpolation control (up to 2 axes), fixed-pitch feed control (up to 2 axes), 2-axis circular interpolation (auxiliary point-specified, central point-specified), speed control (up to 2 axes), speed-position switching control (INC mode, ABS mode), position-speed switching control (INC mode), current value change
Manual controlJOG operation, inching operation, manual pulse generator operation (up to 1 module)
Speed-torque controlSpeed control not including position loop, torque control, continuous operation to torque control
Synchronous encoder operation functionPossible to connect 4 modules (Total of the internal interface (incremental 1 channel), via PLC CPU interface, and servo amplifier interface)
Absolute position systemProvided (Made compatible by setting battery to servo amplifier.)
Speed limitSpeed limit value, JOG speed limit value
Torque limit functionTorque limit value same setting, torque limit value individual setting
Forced stopValid/invalid setting
Software stroke limit functionMovable range check with feed current value or with machine feed value
Hardware stroke limit functionProvided
Speed changeProvided
Override0 to 300 %
Acceleration/deceleration processing changeAcceleration/deceleration time
Torque change functionProvided
Torque limit value changeProvided
Target position change functionSpeed to a target position address and a target position is changeable.
M-code output functionProvided
Step functionDeceleration unit step, data No. unit step
Skip functionVia a PLC CPU or an external command signal
Teaching functionProvided
Parameter initialization functionProvided
External input signal setting functionVia an internal interface, a CPU (buffer memory), or a servo amplifier
Event history functionProvided
Amplifier-less operation functionProvided
Mark detection functionContinuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signalUp to 10 points
Mark detection function: Mark detection setting16 settings
Optional data monitor functionUp to 4 points/axis
Driver communication functionProvided
Connect/disconnect function of SSCNET communicationProvided
Digital oscilloscope functionBit data: 16 channels, word data: 16 channels *4

Module specifications

Servo amplifier connection methodSSCNET III/H
Maximum distance between stations [m]SSCNET III/H: 100
PERIPHERAL I/FVia a CPU module (USB, Ethernet)
Number of occupied I/O points32 points (I/O allocation: intelligent function module 32 points)
Number of module occupied slots1
5 V DC internal current consumption [A]1.0
Mass [kg]0.22
Exterior dimensions [mm]106.0 (H) x 27.8 (W) x 110.0 (D)

RD77MS2: frequently asked questions

When can RD77MS2 be shipped?

RD77MS2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RD77MS2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RD77MS2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD77MS2, subject to availability and destination.
