What is the Mitsubishi Electric RD77GF8?

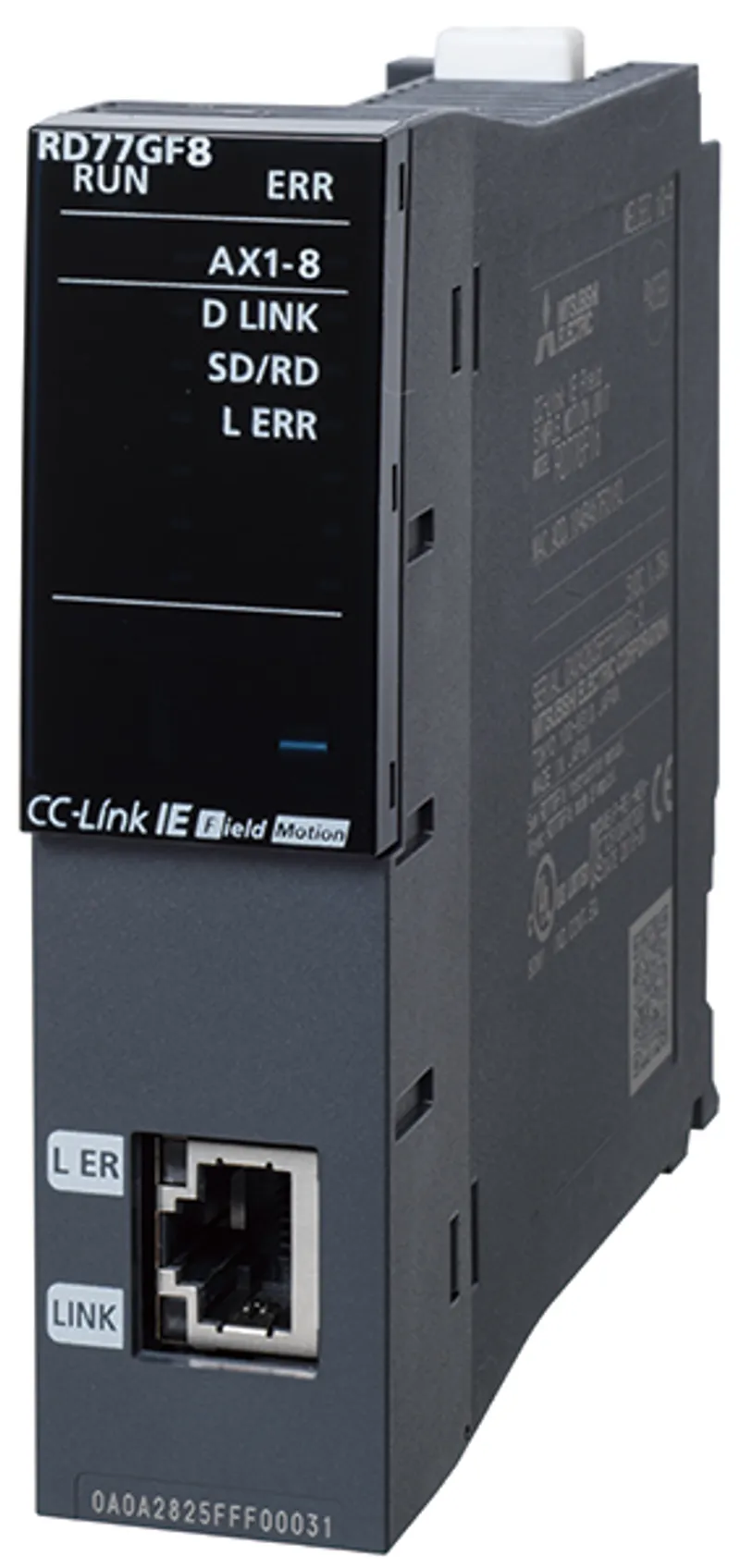

The Mitsubishi Electric RD77GF8 is a simple motion in the MELSEC iQ-R Series. Maximum number of control axes: 8 axes, CC-Link IE Field Network connection, Positioning control, synchronous control, speed-torque control. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategorySimple motion
TypeCC-Link IE Field Network-compatible
Sales status2028/03 To be end of order (Mitsubishi Electric)
OutlineMaximum number of control axes: 8 axes, CC-Link IE Field Network connection, Positioning control, synchronous control, speed-torque control

Control specifications

Number of control axesUp to 8 axes (virtual servo amplifier axis included)
Operation cycle (operation cycle settings) *10.5 ms, 1.0 ms, 2.0 ms, 4.0 ms
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation, helical interpolation (3 axes)
Control methodPositioning control, continuous path control, speed control, speed-position switching control, position-speed switching control, speed-torque control, advanced synchronous control, cam control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation functionBacklash compensation, electronic gear, near pass function
Synchronous controlSynchronous encoder input, cam, phase compensation, cam auto-generation
Control unitmm, inch, degree, pulse
Positioning control methodMotion profile table
Number of positioning data600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works3 or a sequence program.)
BackupParameters, positioning data, and block start data can be saved on flash ROM (batteryless backup)
Home position returnDriver home position return
Positioning controlLinear interpolation control (up to 4 axes) *2 , fixed-pitch feed control (up to 4 axes), 2-axis circular interpolation (auxiliary point-specified, central point-specified), speed control (up to 4 axes), speed-position switching control (INC mode, ABS mode), position-speed switching control (INC mode), current value change
Manual controlJOG operation, inching operation, manual pulse generator operation (up to 1 module)
Speed-torque controlSpeed control not including position loop, torque control
Absolute position systemProvided (Made compatible by setting battery to servo amplifier.)
Speed limitSpeed limit value, JOG speed limit value
Torque limit functionTorque limit value same setting, torque limit value individual setting
Forced stopValid/invalid setting
Software stroke limit functionMovable range check with feed current value or with machine feed value
Hardware stroke limit functionProvided
Speed changeProvided
Override0 to 300 %
Acceleration/deceleration processing changeAcceleration/deceleration time
Torque change functionProvided
Target position change functionSpeed to a target position address and a target position is changeable.
M-code output functionProvided
Step functionDeceleration unit step, data No. unit step
Skip functionVia a PLC CPU or an external command signal
Teaching functionProvided
Parameter initialization functionProvided
External input signal setting functionVia a CPU (buffer memory), a servo amplifier, or a link device
Event history functionProvided
Amplifier-less operation functionProvided
Mark detection functionContinuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signalUp to 16 points *3
Mark detection function: Mark detection setting16 settings
Optional data monitor functionUp to 4 points/axis
Digital oscilloscope functionBit data: 16 channels, word data: 16 channels *4

Module specifications

Servo amplifier connection methodCC-Link IE Field
Maximum distance between stations [m]CC-Link IE Field: 100
PERIPHERAL I/FVia a CPU module (USB, Ethernet)
Synchronous encoder operation function8 units Total of the link device, via PLC CPU interface, and servo amplifier interface
Number of occupied I/O points32 points (I/O allocation: intelligent function module 32 points)
Number of module occupied slots1
5 V DC internal current consumption [A]1.1
Mass [kg]0.23
Exterior dimensions [mm]106.0 (H) x 27.8 (W) x 110.0 (D)

RD77GF8: frequently asked questions

When can RD77GF8 be shipped?

RD77GF8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RD77GF8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RD77GF8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD77GF8, subject to availability and destination.
