Mitsubishi Electric RD60P8-G
Mitsubishi MELSEC iQ-R Series Channel isolated pulse input
- MPN
- RD60P8-G
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric RD60P8-G?

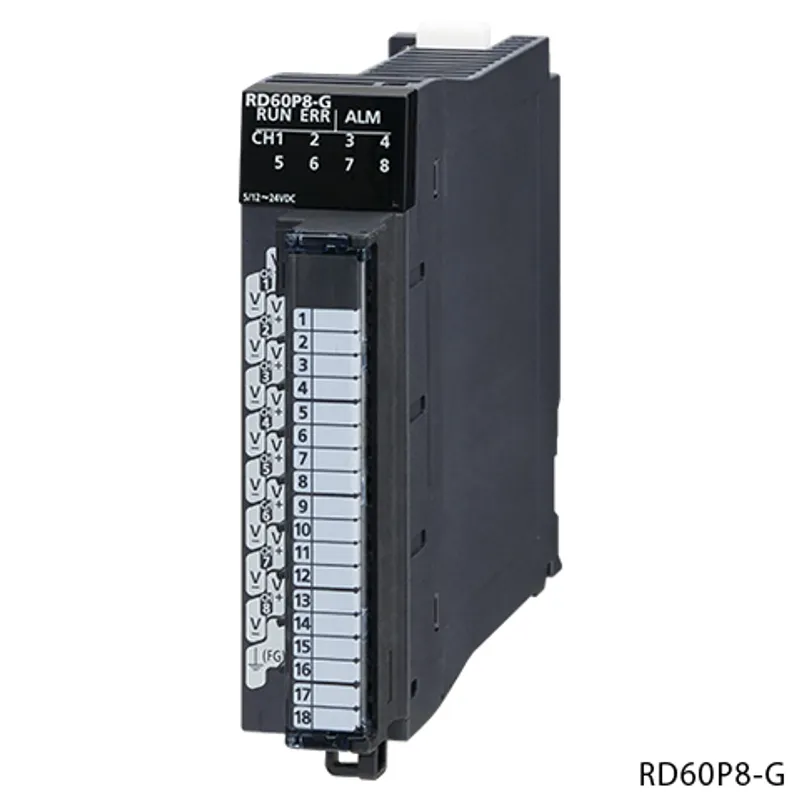

The Mitsubishi Electric RD60P8-G is a channel isolated pulse input in the MELSEC iQ-R Series. 8 channels, 30 k/10 k/1 k/100/50/10/1/0.1 pps, count input signal: 5/12...24 V DC, channel isolated. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | Channel isolated pulse input |
| Outline | 8 channels, 30 k/10 k/1 k/100/50/10/1/0.1 pps, count input signal: 5/12...24 V DC, channel isolated |
Specifications
| Number of channels | 8 channels |
| Counting speed switch settings | 30kpps, 10kpps, 1kpps, 100pps, 50pps, 10pps, 1pps, 0.1pps |
| Count input signal: Phase | 1-phase input |
| Count input signal: Signal level | 5 V DC/12...24 V DC |
| Counter: Counting speed (maximum) | 30k pulse/s, 10k pulse/s, 1k pulse/s, 100 pulse/s, 50 pulse/s, 10 pulse/s, 1 pulse/s, 0.1 pulse/s |
| Counter: Counting range | Sampling pulse number: 16-bit binary (0...32767) Accumulating count value: 32-bit binary (0...99999999) Input pulse value: 32-bit binary (0...2147483647) |
| Counter: Type | Linear counter method, ring counter method |
| Counter: Minimum count pulse width (Duty ratio 50 %) | 30k pulse/s: 33.4 µs (ON/OFF 16.7 µs) 10k pulse/s: 100 µs (ON/OFF 50 µs) 1k pulse/s: 1 ms (ON/OFF 0.5 ms) 100 pulse/s: 10 ms (ON/OFF 5 ms) 50 pulse/s: 20 ms (ON/OFF 10 ms) 10 pulse/s: 100 ms (ON/OFF 50 ms) 1 pulse/s: 1 s (ON/OFF 0.5 s) 0.1 pulse/s: 10 s (ON/OFF 5 s) |
| Dielectric withstand voltage | Between I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute 1780 V AC for 1 minute between channels |
| Insulation resistance | Between I/O terminals and programmable controller power supply, between channels: 500 V DC, 10 MΩ or higher |
| External interface | 18-point terminal block (M3 screw) |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.72 A |
| External dimensions: Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions: Width | 27.8 mm |
| External dimensions: Depth | 131 mm |
| Weight | 0.23 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
No matching specifications
