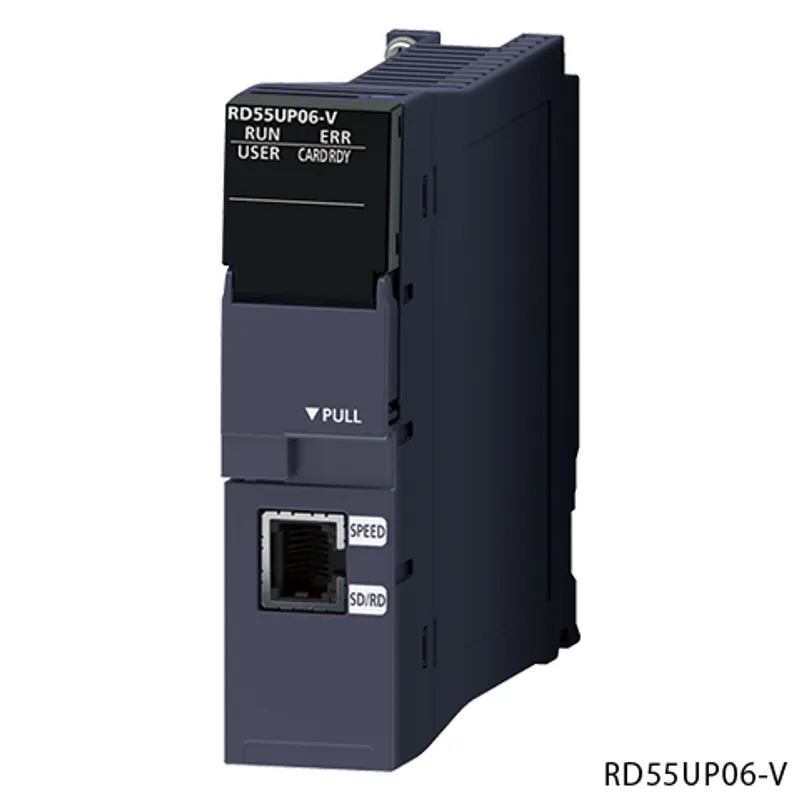

Mitsubishi Electric RD55UP06-V
Mitsubishi MELSEC iQ-R Series C intelligent function
- MPN
- RD55UP06-V
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric RD55UP06-V?
The Mitsubishi Electric RD55UP06-V is a C intelligent function in the MELSEC iQ-R Series. 10BASE-T/100BASE-TX/1000BASE-T: 1 channel, endian format: little endian, SD card: available, work RAM: 128 MB, OS: VxWorks Version 6.9. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | C intelligent function |
| Outline | 10BASE-T/100BASE-TX/1000BASE-T: 1 channel, endian format: little endian, SD card: available, work RAM: 128 MB, OS: VxWorks Version 6.9 |
Software specifications
| Operating system | VxWorks Version 6.9 |
| Programming language | C language (C/C++) |
Hardware specifications
| MPU | ARM ® Cortex-A9 Dual Core |
| Endian format | Little endian |
| Memory capacity: Work RAM | 128M bytes |
| Memory capacity: ROM | 12M bytes |
| SD memory card specifications: Interface | SD/SDHC memory card (up to 16G bytes) |
| SD memory card specifications: Power supply | +3.3 V DC, up to 200 mA |
| Ethernet port: Number of channels | 1 |
| Ethernet port: Interface | 10BASE-T/100BASE-TX/1000BASE-T |
| Ethernet port: Communication method | Full-duplex/half-duplex |
| Ethernet port: Data transmission speed | 10 Mbps (10BASE-T), 100 Mbps (100BASE-TX), 1 Gbps (1000BASE-T) |
| Ethernet port: Number of cascaded connections | Maximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX) |
| Ethernet port: Maximum segment length | 100 m |
| Ethernet port: Connector applicable to external wiring | RJ45 |
| Ethernet port: Supported function | Auto-negotiation function (automatic recognition of communication speed/communication method) Auto-MDI/MDI-X (automatic recognition of straight/crossing cable) |
| Ethernet port: IP version | IPv4 |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Clock function | Acquired from a CPU module (in multiple CPU system, CPU No.1) |
| Allowable momentary power failure time | The time differs depending on the power supply module used. |
| Internal current consumption (5 V DC) | 1.09 A |
| External dimensions: Height | 106 mm |
| External dimensions: Width | 27.8 mm |
| External dimensions: Depth | 110 mm |
| Weight | 0.24 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- MELSEC iQ-R C Intelligent Function Module User's Manual (Startup) (SH-081566ENG-I)
- MELSEC iQ-R C Intelligent Function Module User's Manual (Application) (SH-081567ENG-O)
- MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)
- MELSEC iQ-R C Intelligent Function Module Programming Manual (SH-081568ENG-H)
- MELSEC iQ-R C Controller Module/C Intelligent Function Module Programming Manual (Data Analysis) (SH-081756ENG-E)
- MELSEC iQ-R C Intelligent Function Module Function Block Reference (BCN-P5999-1037-E)
- Before Using the Product (BCN-P5999-0580)
- Safety Guidelines (IB-0800525E-AC)
