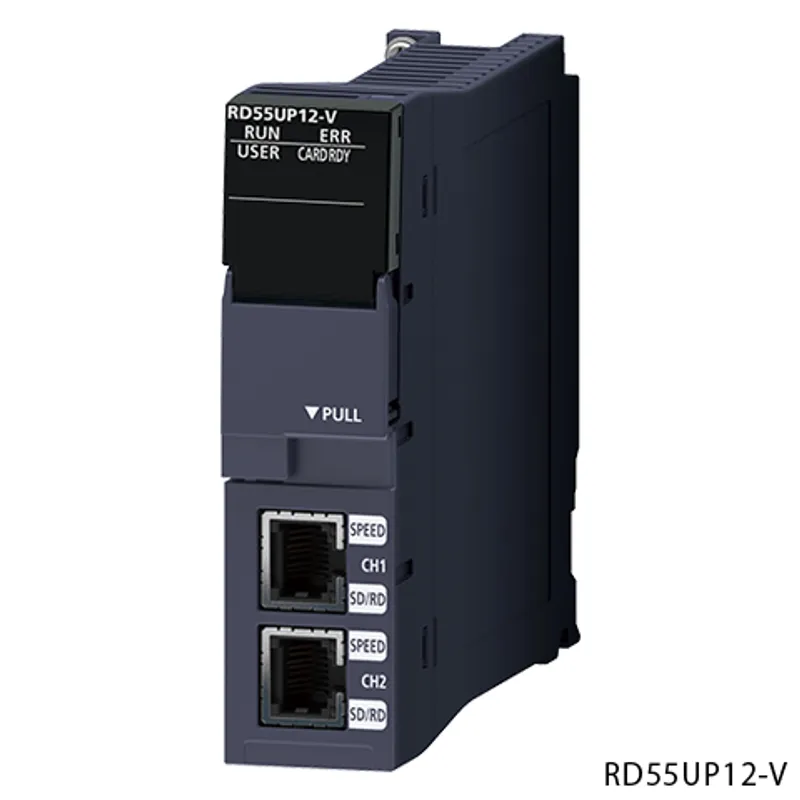

Mitsubishi Electric RD55UP12-V

Mitsubishi MELSEC iQ-R Series C intelligent function

MPN
RD55UP12-V
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RD55UP12-V?

The Mitsubishi Electric RD55UP12-V is a C intelligent function in the MELSEC iQ-R Series. 10BASE-T/100BASE-TX/1000BASE-T: 2 channels, Endian format: little endian, SD card: available, work RAM: 1GB, OS: VxWorks Version 6.9. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryC intelligent function
Outline10BASE-T/100BASE-TX/1000BASE-T: 2 channels, Endian format: little endian, SD card: available, work RAM: 1GB, OS: VxWorks Version 6.9

Software specifications

Operating systemVxWorks Version 6.9
Programming languageC language (C/C++)

Hardware specifications

MPUARM ® Cortex-A9 Dual Core
Endian formatLittle endian
Memory capacity: Work RAM1G bytes
Memory capacity: ROM12M bytes
SD memory card specifications: InterfaceSD/SDHC memory card (up to 16G bytes)
SD memory card specifications: Power supply+3.3 V DC, up to 200 mA
Ethernet port: Number of channels2
Ethernet port: Interface10BASE-T/100BASE-TX/1000BASE-T
Ethernet port: Communication methodFull-duplex/half-duplex
Ethernet port: Data transmission speed10 Mbps (10BASE-T), 100 Mbps (100BASE-TX), 1 Gbps (1000BASE-T)
Ethernet port: Number of cascaded connectionsMaximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX)
Ethernet port: Maximum segment length100 m
Ethernet port: Connector applicable to external wiringRJ45
Ethernet port: Supported functionAuto-negotiation function (automatic recognition of communication speed/communication method) Auto-MDI/MDI-X (automatic recognition of straight/crossing cable)
Ethernet port: IP versionIPv4
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Clock functionAcquired from a CPU module (in multiple CPU system, CPU No.1)
Allowable momentary power failure timeThe time differs depending on the power supply module used.
Internal current consumption (5 V DC)1.10 A
External dimensions: Height106 mm
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.24 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

RD55UP12-V: frequently asked questions

When can RD55UP12-V be shipped?

RD55UP12-V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RD55UP12-V in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RD55UP12-V and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD55UP12-V, subject to availability and destination.
