R63RP Mitsubishi MELSEC iQ-R Series Redundant power supply type

MPN: R63RP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Power supply
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R63RP be shipped?

R63RP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R63RP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R63RP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R63RP, subject to availability and destination.

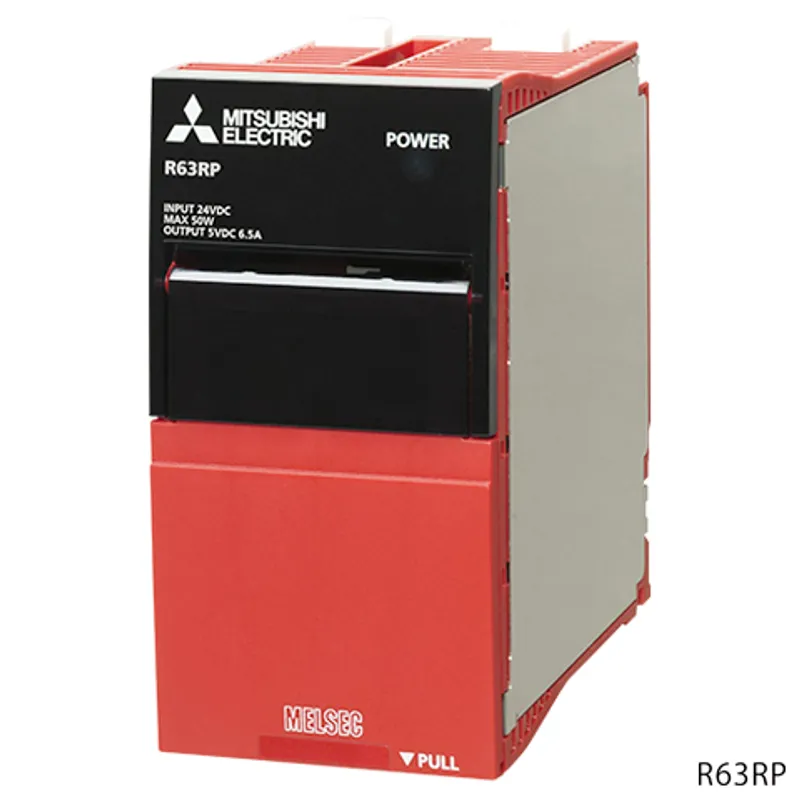

The Mitsubishi Electric R63RP is a redundant power supply type in the MELSEC iQ-R Series. Input: 24 V DC, output: 5 V DC 6.5 A. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Redundant power supply type
Type	DC input
Subtype	24 V DC input
Outline	Input: 24 V DC, output: 5 V DC 6.5 A

Specifications

Input power supply voltage	24 V DC (19.2...31.2 V DC)
Maximum input power	50 W
Inrush current	100 A, within 1 ms
Rated output current: 5 V DC	6.5 A
Overcurrent protection: 5 V DC	7.1 A or more
Overvoltage protection: 5 V DC	5.5...6.5 V
Efficiency	70 % or more
Allowable momentary power failure time	Within 10 ms
Withstand voltage	510 V AC per minute (altitude 0...2000 m), between all input & LG terminals and all output & FG terminals
Insulation resistance	10 MΩ or higher between all input & LG terminals, all output & FG terminals, all input terminals and LG terminal, between all output terminals and FG terminal (500 V DC insulation resistance tester)
Fuse	Built-in (user-unchangeable)
Contact output section: Application	ERR contact
Contact output section: Rated switching voltage/current	24 V DC, 0.5 A
Contact output section: Minimum switching load	5 V DC, 1 mA
Contact output section: Response time: OFF to ON	10 ms or less
Contact output section: Response time: ON to OFF	12 ms or less
Contact output section: Life: Mechanical	20 million times or more
Contact output section: Life: Electrical	Rated switching voltage/current load: 100 thousand times or more
Contact output section: Surge suppressor	None
Contact output section: Fuse	None
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	54.6 mm
External dimensions: Depth	110 mm
Weight	0.41 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
Before Using the Product (BCN-P5999-0188)	PDF · 0.33MB
Safety Guidelines (IB-0800525)	PDF · 11.79MB
