Mitsubishi Electric R65B

Mitsubishi MELSEC iQ-R Series Extension base

MPN
R65B
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

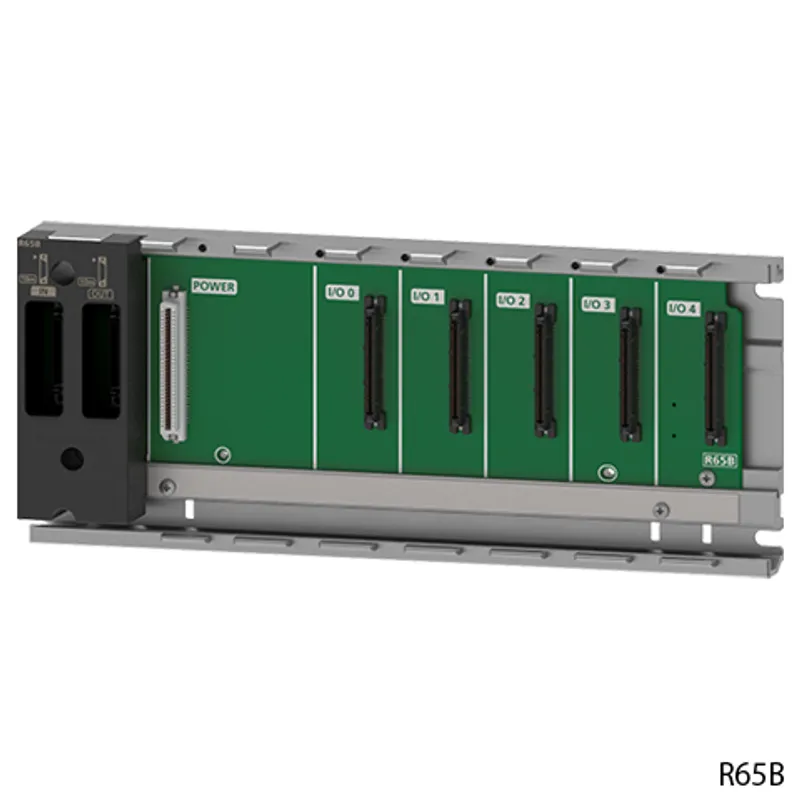

What is the Mitsubishi Electric R65B?

The Mitsubishi Electric R65B is a extension base in the MELSEC iQ-R Series. 5 slots. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryExtension base
Outline5 slots

Specifications

Number of mountable I/O modules5
Applicable moduleMELSEC iQ-R series modules
Applicable power supply moduleMELSEC iQ-R series power supply module
Internal current consumption (5 V DC)0.70 A
Mounting hole sizeM4 screw hole or ø4.5 hole (for M4 screw)
External dimensions: Height101 mm
External dimensions: Width245 mm
External dimensions: Depth32.5 mm
Weight0.41 kg
DIN rail mounting adapter typeR6DIN1 (sold separately)

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

R65B: frequently asked questions

When can R65B be shipped?

R65B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R65B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R65B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R65B, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

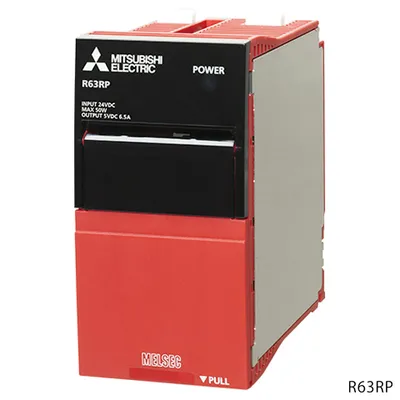

Mitsubishi Electric R63RP – Mitsubishi MELSEC iQ-R Series Redundant power supply type
Mitsubishi Electric
R63RP

Mitsubishi MELSEC iQ-R Series Redundant power supply type

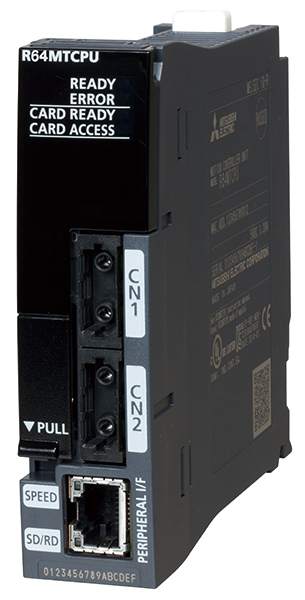

Mitsubishi Electric R64MTCPU – Mitsubishi MELSEC iQ-R Series Motion CPU
Mitsubishi Electric
R64MTCPU

Mitsubishi MELSEC iQ-R Series Motion CPU

Mitsubishi Electric R64P – Mitsubishi MELSEC iQ-R Series Large capacity type
Mitsubishi Electric
R64P

Mitsubishi MELSEC iQ-R Series Large capacity type

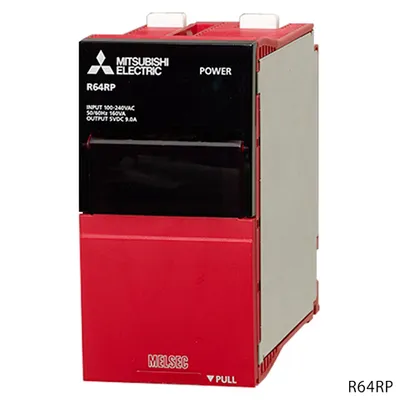

Mitsubishi Electric R64RP – Mitsubishi MELSEC iQ-R Series Redundant power supply type
