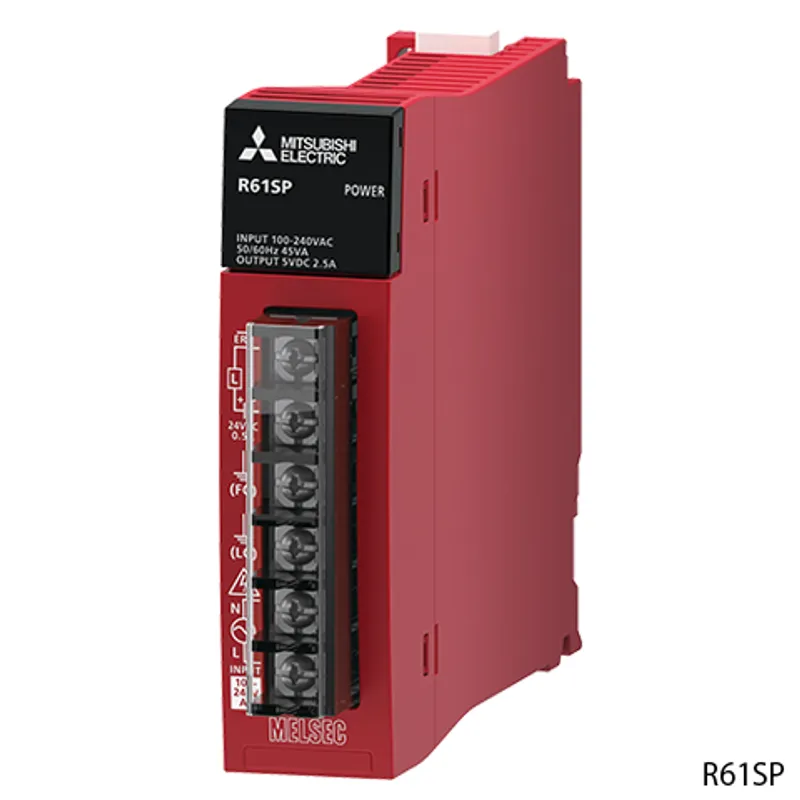

R61SP Mitsubishi MELSEC iQ-R Series Slim type

MPN: R61SP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Power supply
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R61SP be shipped?

R61SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R61SP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R61SP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R61SP, subject to availability and destination.

The Mitsubishi Electric R61SP is a slim type in the MELSEC iQ-R Series. Input: 100...240 V DC, output: 5 V DC 2.5 A. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Slim type
Type	AC input
Subtype	100...240 V AC input
Outline	Input: 100...240 V DC, output: 5 V DC 2.5 A

Specifications

Input power supply voltage	100...240 VAC (85...264 V AC)
Input frequency	50/60 Hz ±5 %
Input voltage distortion	Within 5%
Maximum input apparent power	45 VA
Inrush current	40 A, within 8ms
Rated output current: 5 V DC	2.5 A
Overcurrent protection: 5 V DC	2.8 A or more
Overvoltage protection: 5 V DC	5.5...6.5 V
Efficiency	70 % or more
Allowable momentary power failure time	Within 20 ms
Withstand voltage	3000 V AC rms per minute (altitude 0...2000 m), Between the combined "line input/LG terminals" and the "FG terminal and output"
Insulation resistance	10 MΩ or higher by 500 V DC insulation resistance tester (between the combined "line input/LG terminals" and the "FG terminal and output", the line input and LG terminals, the output and FG terminals)
Fuse	Built-in (user-unchangeable)
Contact output section: Application	ERR contact
Contact output section: Rated switching voltage/current	24 V DC, 0.5 A
Contact output section: Minimum switching load	5 V DC, 1 mA
Contact output section: Response time: OFF to ON	10 ms or less
Contact output section: Response time: ON to OFF	12 ms or less
Contact output section: Life: Mechanical	20 million times or more
Contact output section: Life: Electrical	Rated switching voltage/current load: 100 thousand times or more
Contact output section: Surge suppressor	None
Contact output section: Fuse	None
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	123 mm
Weight	0.20 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.
