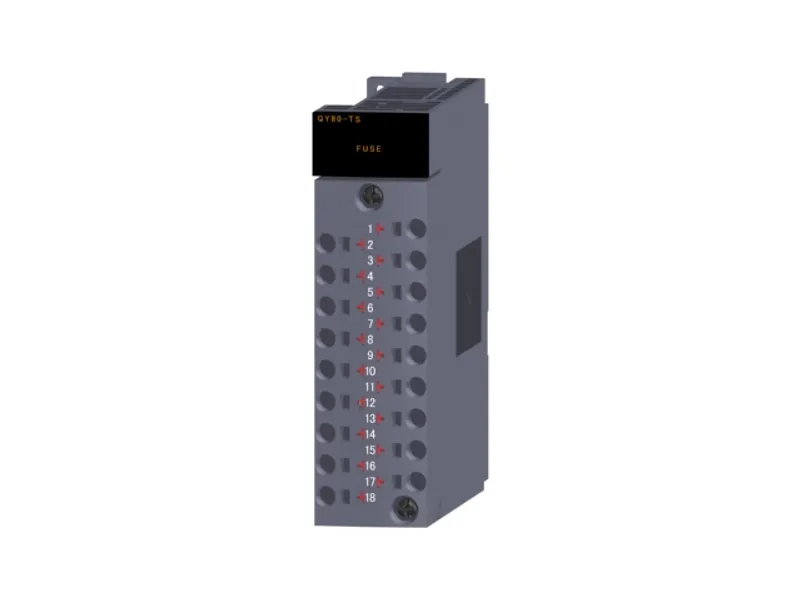

Mitsubishi Electric QY80-TS

Mitsubishi MELSEC-Q Series Output

MPN
QY80-TS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QY80-TS?

The Mitsubishi Electric QY80-TS is a output in the MELSEC-Q Series. Transistor output: 16 points, 12...24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, source type, 18-point spring-clamp terminal block with indicators. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryOutput
TypeTransistor output (source)
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineTransistor output: 16 points, 12...24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, source type, 18-point spring-clamp terminal block with indicators

Output specifications

Output typeTransistor output (source type)
Number of output points16 points
Rated load voltage12...24 V DC (+20/-15 %)
Maximum load current0.5 A/point, 4 A/common
Maximum inrush current4 A, 10 ms or less
Leakage current at OFF0.1 mA or less
Maximum voltage drop at ON0.2 V DC (TYP.) 0.5 A, 0.3 V DC (MAX.) 0.5 A
Output response time: OFF to ON1 ms or less
Output response time: ON to OFF1 ms or less (rated load, resistive load)
Surge suppressorZener diode
Fuse6.7 A (Not replaceable) (Fuse capacity: 50 A)
Fuse blown indicatorProvided (when a fuse blows, LED turns on and a signal is output to the CPU module.)
External power supply: Voltage12...24 V DC (+20/-15 %) (ripple ratio within 5 %)
External power supply: Current20 mA (at 24 V DC)
Output common terminal arrangement16 points/common

Common specifications

Isolation methodPhotocoupler
Dielectric withstand voltage560 V AC rms/3 cycles (altitude 2000 m)
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP2X
Operation indicationON indication (LED)
External interface18-point two-piece spring clamp terminal block
Number of occupied I/O points16 points (I/O assignment: Output 16 points)
Internal current consumption (5 V DC)80 mA (TYP. all points ON)
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.17 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QY80-TS: frequently asked questions

When can QY80-TS be shipped?

QY80-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QY80-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QY80-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QY80-TS, subject to availability and destination.
