QY68A Mitsubishi MELSEC-Q Series Output

MPN: QY68A · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – I/O
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can QY68A be shipped?

QY68A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QY68A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QY68A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QY68A, subject to availability and destination.

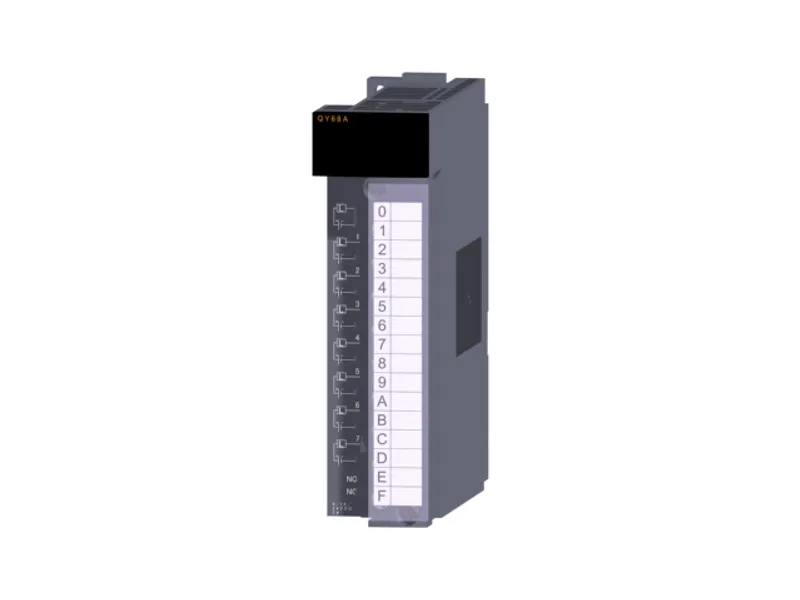

The Mitsubishi Electric QY68A is a output in the MELSEC-Q Series. Transistor output: 8 points, 5...24 V DC, 2 A/point, 8 A/module, response time: 10 ms, all points independent, sink/source shared type, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Output
Type	Transistor output (independent, sink/source shared)
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	Transistor output: 8 points, 5...24 V DC, 2 A/point, 8 A/module, response time: 10 ms, all points independent, sink/source shared type, 18-point terminal block

Output specifications

Output type	Transistor output (all points independent, sink/source type)
Number of output points	8 points
Rated load voltage	5...24 V DC (+20/-10 %)
Maximum load current	2 A/point, 8 A/module
Maximum inrush current	8 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.3 V DC (MAX.) 2 A
Output response time: OFF to ON	3 ms or less
Output response time: ON to OFF	10 ms or less (resistive load)
Surge suppressor	Zener diode
Fuse	None (attaching a fuse to each external wiring is recommended.)
Output common terminal arrangement	All points independent

Common specifications

Isolation method	Photocoupler
Dielectric withstand voltage	560 V AC rms/3 cycles (altitude 2000 m)
Insulation resistance	10 MΩ or higher by insulation resistance tester
Protection degree	IP2X
Operation indication	ON indication (LED)
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Output 16 points)
Internal current consumption (5 V DC)	110 mA (TYP. all points ON)
External dimensions: Height	98 mm
External dimensions: Width	27.4 mm
External dimensions: Depth	90 mm
Weight	0.14 kg
