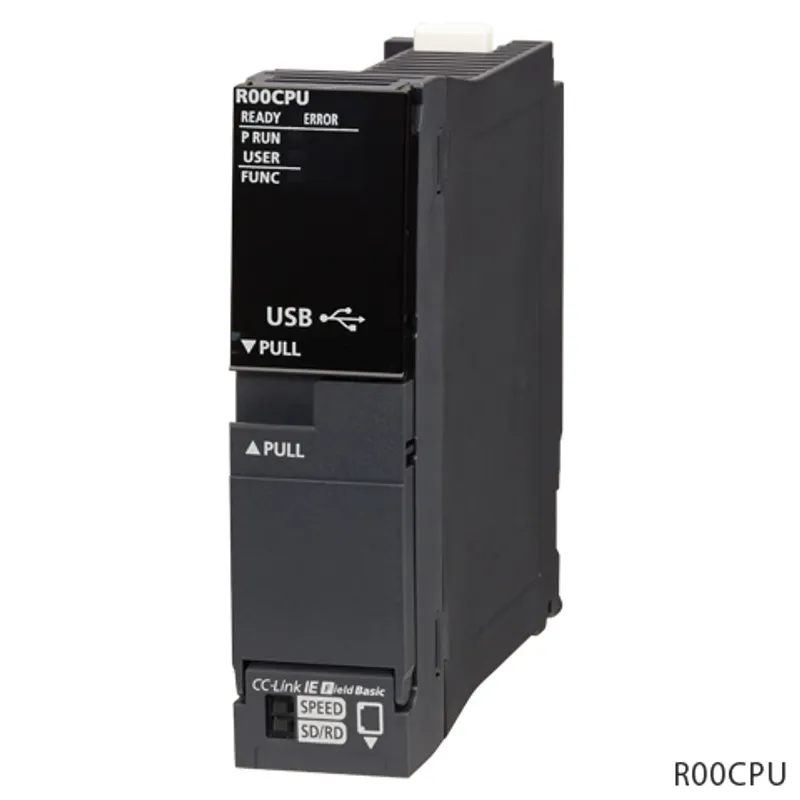

R00CPU Mitsubishi MELSEC iQ-R Series Programmable controller CPU

MPN: R00CPU · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – CPU
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R00CPU be shipped?

R00CPU is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R00CPU in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R00CPU and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R00CPU, subject to availability and destination.

The Mitsubishi Electric R00CPU is a programmable controller CPU in the MELSEC iQ-R Series. Number of I/O points: 4096, program capacity: 10K steps, basic operation processing speed (LD X0): 31.3 ns, program memory capacity: 40K bytes, external interface: USB/Ethernet. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Programmable controller CPU
Outline	Number of I/O points: 4096, program capacity: 10K steps, basic operation processing speed (LD X0): 31.3 ns, program memory capacity: 40K bytes, external interface: USB/Ethernet

Hardware specifications

Operation control method	Stored program cyclic operation
I/O control mode	Refresh mode (The direct access input/output is available by specifying the direct access input/output (DX, DY).)
Instruction processing time: LD instruction	31.3 ns
Instruction processing time: MOV instruction	62.7 ns
Instruction processing time (structured text): IF	31.3 ns
Instruction processing time (structured text): CASE	31.3 ns
Instruction processing time (structured text): FOR	31.3 ns
Memory capacity: Program capacity	10K steps (40K bytes)
Memory capacity: Program memory	40K bytes
Memory capacity: Device/label memory	252K bytes
Memory capacity: Signal flow memory: Area for programs	1.25K bytes
Memory capacity: Signal flow memory: Area for function blocks	256K bytes
Memory capacity: Data memory	1.5M bytes
Memory capacity: CPU buffer memory	1072K bytes (536K words) (including the fixed scan communication area (24K words))
Memory capacity: Refresh memory	2048K bytes
Maximum number of storable files: Program memory	Number of program files: 32 Number of FB files: 16
Maximum number of storable files: Device/label memory (file storage area)	128
Maximum number of storable files: Data memory	256
Number of storable folders: Data memory	256
USB port	USB2.0 High Speed (miniB)×1
Ethernet port	10BASE-T/100BASE-TX×1
Clock function	Year, month, date, hour, minute, second, and day of week (automatic leap year detection) Accuracy: -2.43...+3.52 s (TYP. +0.55 s)/d at 0 ˚C Accuracy: -3.08...+3.53 s (TYP. +0.23 s)/d at 25 ˚C Accuracy: -13.03...+1.91 s (TYP. -5.56 s)/d at 55 ˚C
Backup power: Backup method	Capacitor
Backup power: Backup power time	10 days
Backup power: Data retained	Clock data
Allowable momentary power failure time	The time differs depending on the power supply module used.
Internal current consumption (5 V DC)	0.67 A
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	110 mm
Weight	0.20 kg

Programming specifications

Programming language	Ladder diagram (LD), sequential function chart (SFC), structured text (ST), function block diagram (FBD/LD)
Programming supporting function	Function block (FB), label programming (system/local/global)
Program operation: Execution type: Standard program	Initial execution type, scan execution type, fixed scan execution type, event execution type, standby type
Program operation: Type of interrupt: Standard program	Internal timer interrupt (I28 to I31), interrupt by modules, inter-module synchronous interrupt (I44), multiple CPU synchronous interrupt (I45)
Number of executable programs: General program	32
Number of FB files: FB file	16
Tact performance: Constant scan	0.5...2000 ms (in 0.1 ms increments)
Tact performance: Cyclic interrupt: Interrupt using the internal timer (I28...I31)	0.5...1000 ms (in 0.5 ms increments)
Tact performance: Cyclic interrupt: Inter-module synchronous interrupt (I44)	0.5...10.00 ms (in 0.05 ms increments)
Tact performance: Cyclic interrupt: Multiple CPU synchronous interrupt (I45)	0.5...10.00 ms (in 0.05 ms increments)
Timer performance: Low-speed timer	1...1000 ms (Default: 100 ms)
Timer performance: High-speed timer	0.01...100 ms (Default: 10 ms)
Timer performance: Long timer	0.001...1000 ms (Default: 0.001 ms)
Number of I/O points	4096 points
Number of user device points: Input (X)	8192 points (fixed)
Number of user device points: Output (Y)	8192 points (fixed)
Number of user device points: Internal relay (M)	8192 points (user-changeable)
Number of user device points: Latch relay (L)	8192 points (user-changeable)
Number of user device points: Link relay (B)	8192 points (user-changeable)
Number of user device points: Link special relay (SB)	2048 points (user-changeable)
Number of user device points: Annunciator (F)	2048 points (user-changeable)
Number of user device points: Edge relay (V)	2048 points (user-changeable)
Number of user device points: Step relay (S)	0 points (user-changeable)
Number of user device points: Timer device: Timer (T)	2048 points (user-changeable)
Number of user device points: Timer device: Long timer (LT)	0 points (user-changeable)
Number of user device points: Retentive timer device: Retentive timer (ST)	0 points (user-changeable)
Number of user device points: Retentive timer device: Long retentive timer (LST)	0 points (user-changeable)
Number of user device points: Counter device: Counter (C)	1024 points (user-changeable)
Number of user device points: Counter device: Long counter (LC)	0 points (user-changeable)
Number of user device points: Data register (D)	12288 points (user-changeable)
Number of user device points: Link register (W)	8192 points (user-changeable)
Number of user device points: Link special register (SW)	2048 points (user-changeable)
Number of system device points: Special relay (SM)	4096 points (fixed)
Number of system device points: Special register (SD)	4096 points (fixed)
Number of system device points: Function input (FX)	16 points (fixed)
Number of system device points: Function output (FY)	16 points (fixed)
Number of system device points: Function register (FD)	5 points × 4 words (fixed)
Number of file register points: File register (R/ZR)	0 points (user-changeable)
Number of index register points: Index register (Z)	20 points (user-changeable, up to 24 points)
Number of index register points: Long index register (LZ)	2 points (user-changeable, up to 12 points)
Number of pointer points: Pointer (P) (global/local)	8192 points (user-changeable, up to 16384 points)
Number of pointer points: Interrupt pointer (I)	1024 points (fixed)
Number of link direct device points: Link input (J☐\X☐)	160K points maximum
Number of link direct device points: Link output (J☐\Y☐)	160K points maximum
Number of link direct device points: Link relay (J☐\B☐)	640K points maximum
Number of link direct device points: Link register (J☐\W☐)	2560K points maximum
Number of link direct device points: Link special relay (J☐\SB☐)	5120 points maximum
Number of link direct device points: Link special register (J☐\SW☐)	5120 points maximum
Number of module access device points: Intelligent function module device (U☐\G☐)	268435456 points maximum
Number of CPU buffer memory access device points: Buffer memory (U3E☐\G☐)	268435456 points maximum
Number of CPU buffer memory access device points: Fixed scan communication area in the buffer memory (U3E☐\HG☐)	12288 points maximum
Number of refresh data register points: Refresh data register (RD)	524288 points (1048576 points maximum)
Number of nesting points: Nesting (N)	15 points
Number of other device points: SFC block device (BL)	128 points
Number of other device points: SFC transition device (TR)	0 points (Can be used for device comments only)

Specifications of the built-in Ethernet function

Transmission specifications: Data transmission speed	100/10 Mbps
Transmission specifications: Communication mode	100BASE-TX: Full-duplex/half-duplex 10BASE-T: Full-duplex/half-duplex
Transmission specifications: Interface	RJ45 (AUTO MDI/MDI-X)
Transmission specifications: Transmission method	Base band
Transmission specifications: Maximum frame size	1518 bytes
Transmission specifications: Jumbo frame	Not available
Transmission specifications: Maximum segment length	100 m (length between hub and node)
Transmission specifications: IP version	IPv4
Sending/receiving data storage memory: Number of simultaneously open connections	16 connections (connections usable on a program)
Sending/receiving data storage memory: Socket communications	5K words × 16

Specifications

Operating ambient temperature	0...55 ˚C (When an extended temperature range base unit is not used) 0...60 ˚C (When an extended temperature range base unit is used)
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
