What is the Mitsubishi Electric QY42P?

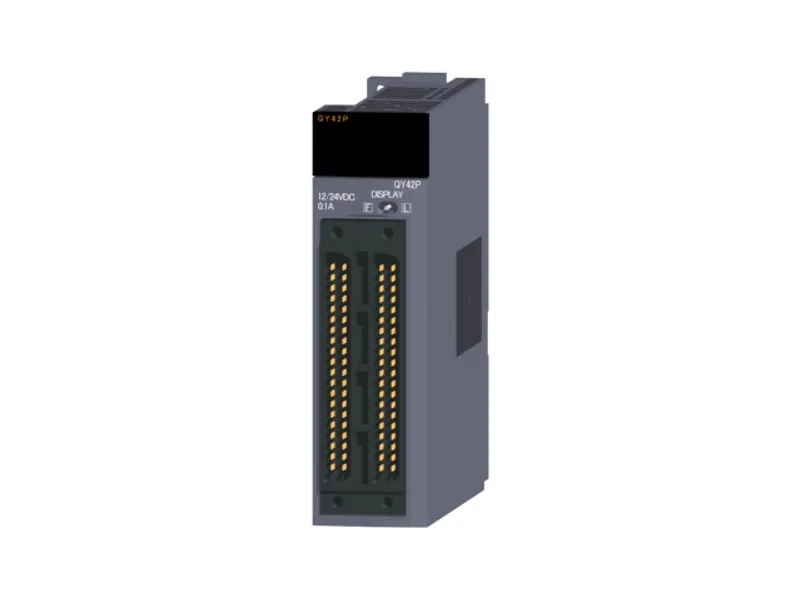

The Mitsubishi Electric QY42P is a output in the MELSEC-Q Series. Transistor output: 64 points, 12...24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryOutput
TypeTransistor output (sink)
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineTransistor output: 64 points, 12...24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2

Output specifications

Output typeTransistor output (sink type)
Number of output points64 points
Rated load voltage12...24 V DC (+20/-15 %)
Maximum load current0.1 A/point, 2 A/common
Maximum inrush current0.7 A, 10 ms or less
Leakage current at OFF0.1 mA or less
Maximum voltage drop at ON0.1 V DC (TYP.) 0.1 A, 0.2 V DC (MAX.) 0.1 A
Output response time: OFF to ON1 ms or less
Output response time: ON to OFF1 ms or less (rated load, resistive load)
Surge suppressorZener diode
FuseNone
Protection function: Overheat protection functionAvailable
Protection function: Overload protection functionAvailable
External power supply: Voltage12...24 V DC (+20/-15 %) (ripple ratio within 5 %)
External power supply: Current40 mA (at 24 V DC)/common
Output common terminal arrangement32 points/common

Common specifications

Isolation methodPhotocoupler
Dielectric withstand voltage560 V AC rms/3 cycles (altitude 2000 m)
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP2X
Operation indicationON indication (LED), 32 point switch-over using switch
External interface40-pin connector × 2
External interface: Applicable connectorA6CON1, A6CON2, A6CON3, A6CON4 (sold separately)
Number of occupied I/O points64 points (I/O assignment: Output 64 points)
Internal current consumption (5 V DC)150 mA (TYP. all points ON)
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.17 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
