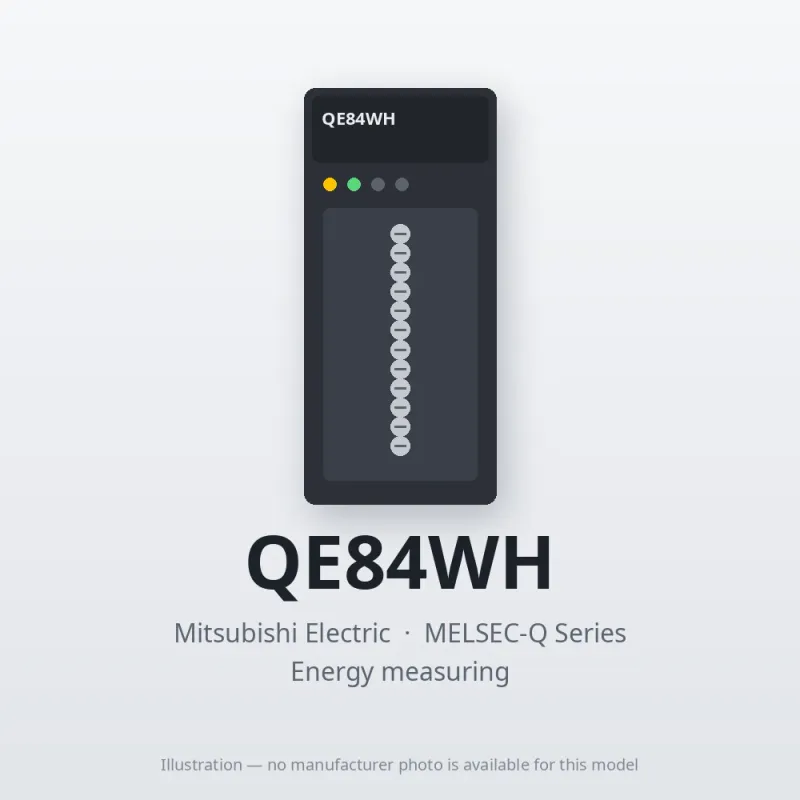

Mitsubishi Electric QE84WH

Mitsubishi MELSEC-Q Series Energy measuring

MPN
QE84WH
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QE84WH?

The Mitsubishi Electric QE84WH is a energy measuring in the MELSEC-Q Series. Number of measurement circuits : 4 circuits Phase wire system : Single-phase 2-wire, single-phase 3-wire, 3-phase 3-wire common Measurement items : Current, demanded current, voltage, power, demanded power, reactive power, frequency, power factor, electric energy, reactive electric energy, time-based electric energy. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryEnergy measuring
OutlineNumber of measurement circuits : 4 circuits Phase wire system : Single-phase 2-wire, single-phase 3-wire, 3-phase 3-wire common Measurement items : Current, demanded current, voltage, power, demanded power, reactive power, frequency, power factor, electric energy, reactive electric energy, time-based electric energy

Specifications

Number of measurement circuits4 circuits in same voltage system (4 channels) *Current measurement mode : 8 circuits (8 channels)
Phase wire systemSingle-phase 2-wire, single-phase 3-wire, 3-phase 3-wire common
Instrument rating: Voltage circuit: Single-phase 2-wire, 3-phase 3-wire100 to 220V AC (If the voltage exceeds 220V AC, an external voltage transformer is required.)
Instrument rating: Voltage circuit: Single-phase 3-wire110V AC (between wires 1 and 2, and wires 2 and 3), 220V AC (between wires 1 and 3)
Instrument rating: Current circuit50A, 100A, 250A, 400A, 600A (Dedicated split-type current sensor is used. All values indicate primary current values of current sensor.) 5A (Dedicated 5A current sensor is used. Current transformer (CT) is used in two-step configuration together with the 5A current sensor in order to allow a maximum primary current value setting of 6,000A)
Instrument rating: Frequency50 to 60Hz (automatic frequency selection)
Main unit tolerances (current sensors not included in tolerance)Current, demanded current : ±1.0% (relative to rated input) Voltage : ±1.0% (relative to rated input) Power, demanded power : ±1.0% (relative to rated input) Reactive power : ±1.0% (relative to rated input) Frequency : ±1.0% (in 45 to 65Hz range) Power factor : ±3.0% (relative to electrical angle of 90°) Electric energy : ±2.0% (in 5 to 100% range of rated values, power factor = 1) Reactive electr
Data update cycle500ms *Current measurement mode : 100ms
Response time2s or less
Power outage compensationBackup is made using nonvolatile memory. (Stored items: settings, the max./min. values and time of occurrence, electric energy (consumption, regenerated), reactive energy (consumption lag), and periodic electric energy)
Internal current cunsumption (DC 5V)0.46A
No. of required slots1
No. of input/output points32 points (I/O assignment: 32 intelligent points)
Applicable wire: Voltage input terminal: Single wireAWG24 to AWG12
Applicable wire: Voltage input terminal: Stranded wireAWG24 to AWG12
Applicable wire: Current input terminal: Single wireー
Applicable wire: Current input terminal: Stranded wireAWG22 to AWG18
Applicable standardsEMC: EN61131-2:2007, EN61326-1:2013 LVD: EN61131-2:2007, EN61010-1:2010 UL Standards: UL508 c-UL Standards: CSA C22.2 No.142 KC Marking
External dimensions: Height (H)98mm
External dimensions: Width (W)27.4mm
External dimensions: Depth (D)112mm
Weight0.19kg

Specifications

General SpecificationsRefer to the general Specifications of CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QE84WH: frequently asked questions

When can QE84WH be shipped?

QE84WH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QE84WH in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QE84WH and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QE84WH, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

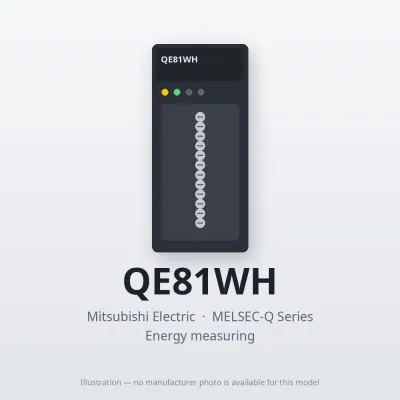

Mitsubishi Electric QE81WH – Mitsubishi MELSEC-Q Series Energy measuring
Mitsubishi Electric
QE81WH

Mitsubishi MELSEC-Q Series Energy measuring

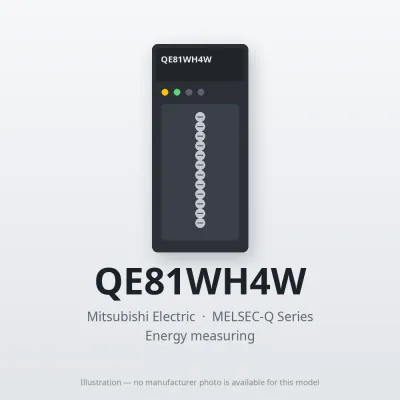

Mitsubishi Electric QE81WH4W – Mitsubishi MELSEC-Q Series Energy measuring
