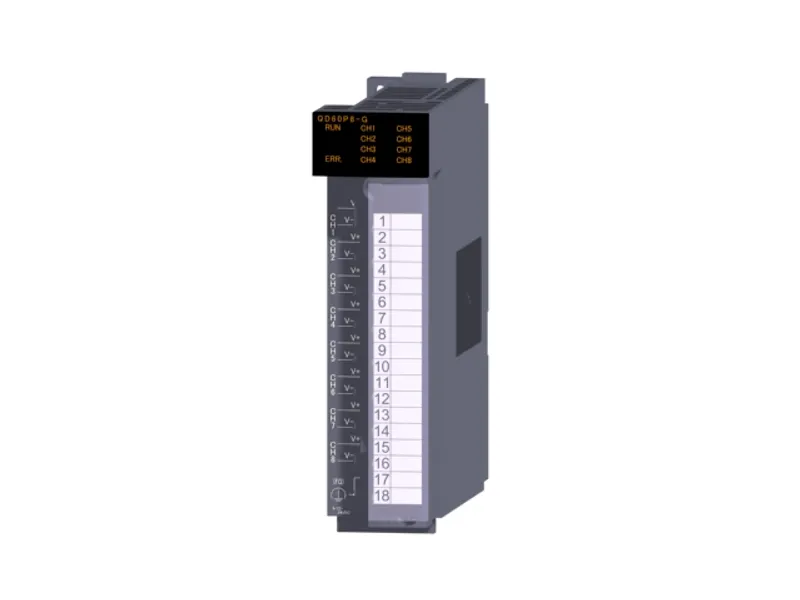

Mitsubishi Electric QD60P8-G

Mitsubishi MELSEC-Q Series Channel isolated pulse input

MPN
QD60P8-G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QD60P8-G?

The Mitsubishi Electric QD60P8-G is a channel isolated pulse input in the MELSEC-Q Series. 8 channel, 30 k/10 k/1 k/100/50/10/1/0.1 pps, count input signal: 5/12...24 V DC, channel isolated. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryChannel isolated pulse input
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline8 channel, 30 k/10 k/1 k/100/50/10/1/0.1 pps, count input signal: 5/12...24 V DC, channel isolated

Specifications

Number of channels8 channels
Counting speed switch settings30kpps, 10kpps, 1kpps, 100pps, 50pps, 10pps, 1pps, 0.1pps
Count input signal: Phase1-phase input
Count input signal: Signal level5 V DC/12...24 V DC
Counter: Counting speed (maximum)30k pulse/s, 10k pulse/s, 1k pulse/s, 100 pulse/s, 50 pulse/s, 10 pulse/s, 1 pulse/s, 0.1 pulse/s
Counter: Counting rangeSampling pulse number: 16-bit binary (0...32767) Accumulating count value: 32-bit binary (0...99999999) Input pulse value: 32-bit binary (0...2147483647)
Counter: TypeLinear counter method, ring counter method
Counter: Minimum count pulse width (Duty ratio 50 %)30k pulse/s: 33.4 µs (ON/OFF 16.7 µs) 10k pulse/s: 100 µs (ON/OFF 50 µs) 1k pulse/s: 1 ms (ON/OFF 0.5 ms) 100 pulse/s: 10 ms (ON/OFF 5 ms) 50 pulse/s: 20 ms (ON/OFF 10 ms) 10 pulse/s: 100 ms (ON/OFF 50 ms) 1 pulse/s: 1 s (ON/OFF 0.5 s) 0.1 pulse/s: 10 s (ON/OFF 5 s)
Dielectric withstand voltageBetween all AC external terminals and ground: 1500 V AC for 1 minute Between all DC external terminals and ground: 500 V AC for 1 minute Between channels: 1780 V AC for 1 minute
Insulation resistanceBetween all AC external terminals and ground: 500 V DC, 5 MΩ or higher
External interface18-point terminal block (M3 screw)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.58 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.17 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QD60P8-G: frequently asked questions

When can QD60P8-G be shipped?

QD60P8-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QD60P8-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QD60P8-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QD60P8-G, subject to availability and destination.
