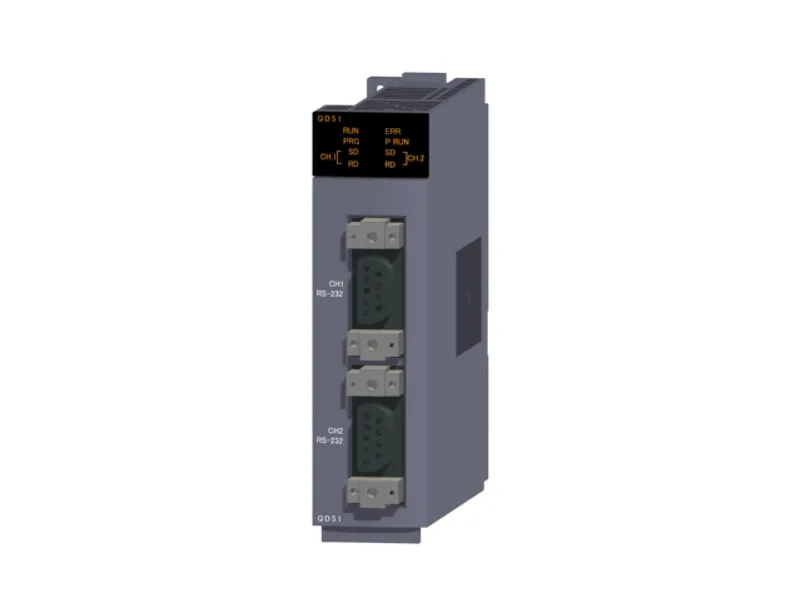

Mitsubishi Electric QD51

Mitsubishi MELSEC-Q Series Intelligent communication

MPN
QD51
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QD51 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QD51?

The Mitsubishi Electric QD51 is a intelligent communication in the MELSEC-Q Series. Module for running BASIC program, RS-232: 2 channels. Mitsubishi Electric has discontinued it (2017/02 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryIntelligent communication
Sales status2017/02 Discontinued (Mitsubishi Electric)
OutlineModule for running BASIC program, RS-232: 2 channels

Specifications

Programming languageAD51H-BASIC (Interpreter, Compiler)
Number of tasks2
Task start conditions• Start by power is turned on. • Start by an interrupt from the programmable controller CPU. (Not possible when compiled BASIC is used.) • Start by a start request from another task.
Internal memory: ProgramMaximum 64K bytes (Task 1 capacity + Task 2 capacity ≤ 64K bytes)
Internal memory: Common memory8K bytes
Internal memory: Buffer memory6K bytes
Internal memory: Expansion relay (EM)1024 points
Internal memory: Expansion register (ED)1024 points
General input/outputInput: 26 points Output: 23 points
Memory protectionYes (Flash ROM write protectable)
Interface: CH1RS-232-compliance (D-sub 9 pin)
Interface: CH2RS-232-compliance (D-sub 9 pin)
Communication methodFull-duplex communications
Synchronization methodStart-stop synchronization method
Transmission speed300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400 bps • Total transmission speed of two interfaces is available up to 38400 bps.
Transmission distance: RS-232Maximum 15 m
Data format: Start bits1
Data format: Data bits7/8
Data format: Parity bits1 (vertical parity) or none
Data format: Stop bits1/2
Transmission control: RS-232: DTR/DSR controlEnabled
Transmission control: RS-232: RS/CS controlEnabled
Transmission control: RS-232: CD(DCD) signal controlDisabled
Transmission control: RS-232: DC1/DC3 (Xon/Xoff) controlDC2/DC4 controlEnabled
Transmission control: RS-232: DC2/DC4 controlDisabled
Line configuration of connection (External device side : CPU module side): RS-2321:1
Clock functionNone
Power failure maintenanceNone
User program ROM storageThe program area only can be stored in Flash ROM.
ConsoleDOS/V personal computer or PC-9800 Series
Multitask debuggingPossible (when the debugger is used)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.26 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

QD51: frequently asked questions

Can I still buy the QD51 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QD51, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QD51 be shipped?

QD51 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QD51 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QD51 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QD51, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric QC30TR – Mitsubishi MELSEC-Q Series Redundant CPU
Mitsubishi Electric
QC30TR

Mitsubishi MELSEC-Q Series Redundant CPU

Mitsubishi Electric QC50B – Mitsubishi MELSEC-Q Series Extension cable
Mitsubishi Electric
QC50B

Mitsubishi MELSEC-Q Series Extension cable

Mitsubishi Electric QD35ID1 – Mitsubishi MELSEC-Q Series ID interface
Mitsubishi Electric
QD35ID1

Mitsubishi MELSEC-Q Series ID interface

Mitsubishi Electric QD35ID2 – Mitsubishi MELSEC-Q Series ID interface
Mitsubishi Electric
QD35ID2

Mitsubishi MELSEC-Q Series ID interface

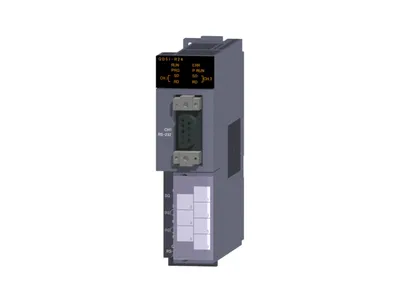

Mitsubishi Electric QD51-R24 – Mitsubishi MELSEC-Q Series Intelligent communication
Mitsubishi Electric
QD51-R24

Mitsubishi MELSEC-Q Series Intelligent communication

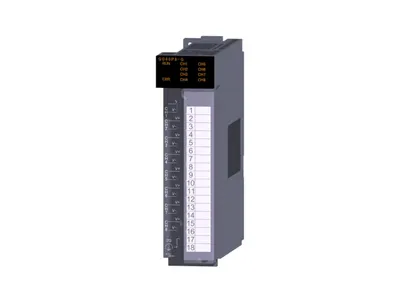

Mitsubishi Electric QD60P8-G – Mitsubishi MELSEC-Q Series Channel isolated pulse input
