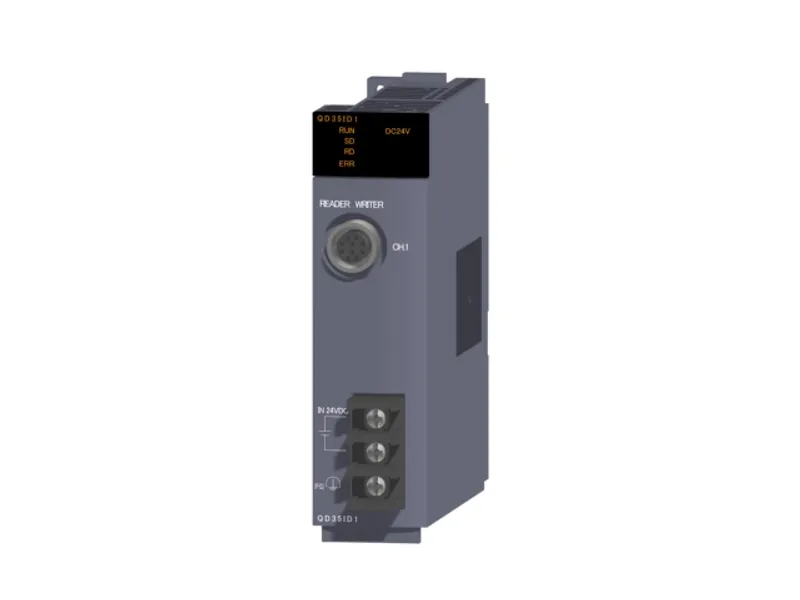

QD35ID1 Mitsubishi MELSEC-Q Series ID interface
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QD35ID1 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-Q Series – Information/network |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the QD35ID1 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the QD35ID1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can QD35ID1 be shipped?
QD35ID1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up QD35ID1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for QD35ID1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QD35ID1, subject to availability and destination.
The Mitsubishi Electric QD35ID1 is a ID interface in the MELSEC-Q Series. 1 reader writer connectable, for QCPU. Mitsubishi Electric has discontinued it (2011/01 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | ID interface |
| Sales status | 2011/01 Discontinued (Mitsubishi Electric) |
| Outline | 1 reader writer connectable, for QCPU |
Specifications
| Connectable reader writer | D-2N422RW(-C2), D-2N422RWS(-C2) |
| Number of connectable reader writers | 1 |
| Connectable cable | D-NS422CAB10 (10 m), D-NS422CAB20 (20 m), D-NS422CAB40 (40 m), D-NS422CAB100 (100 m) (Maximum of two cables can be combined, maximum extension distance of cable: 200m) |
| Data carrier that can be used | D-2N03PS, D-2N03PM |
| External power supply: Voltage | 24 V DC |
| External power supply: Current | 0.17 A |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.40 A |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 27.4 mm |
| External dimensions: Depth | 90 mm |
| Weight | 0.13 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
