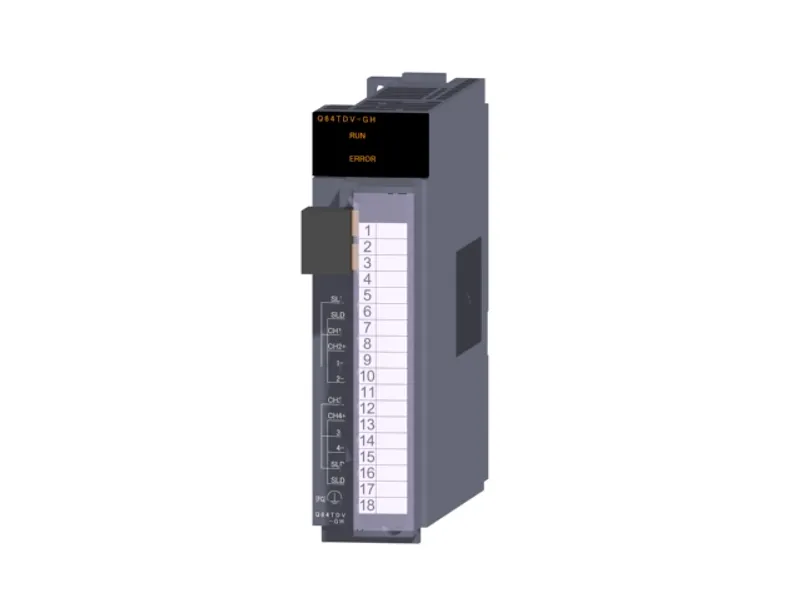

The Mitsubishi Electric Q64TDV-GH is a temperature input in the MELSEC-Q Series. 4 channels, thermocouple (B, R, S, K, E, J, T, N), micro voltage (-100...100 mV), conversion speed: (sampling cycle x 3)/channel, 18-point terminal block, channel isolated. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Temperature input
Type	Thermocouple input
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	4 channels, thermocouple (B, R, S, K, E, J, T, N), micro voltage (-100...100 mV), conversion speed: (sampling cycle x 3)/channel, 18-point terminal block, channel isolated

Specifications

Number of analog input points	4 points (4 channels + cold junction compensation channels)
Number of channels	4 channels
Digital output: Temperature measured value	16-bit signed binary value (-2700...18200: value to the first decimal place × 10)
Digital output: Micro voltage conversion value	16-bit signed binary value (-25000...25000)
Digital output: Scaling value	16-bit signed binary value
Thermocouple compliance standards	JIS C1602-1995
Micro voltage input: Input range	-100...+100 mV (input resistance 2 MΩ or more)
Micro voltage input: Accuracy	±0.2 mV (at 25 ± 5 ˚C operating ambient temperature) ±0.8 mV (at 0...55 ˚C operating ambient temperature)
Micro voltage input: Resolution	4 µV
Resolution	B: 0.7 ˚C R, S:0.8 ˚C K, T: 0.3 ˚C E: 0.2 ˚C J: 0.1 ˚C N: 0.4 ˚C
Accuracy: Thermocouple type: Measured temperature range	Accuracy (℃) = (Conversion accuracy) + (Temperature characteristics) Conversion accuracy (at operating ambient temperature 25±5 ﾟC) Temperature characteristic (per operating ambient temperature variation of 1 ﾟC) Maximum temperature error at ambient temperature 55ﾟC Effect per wiring resistance 1Ω
Accuracy: B: 0...600 ﾟC	―
Accuracy: B: 600...800 ﾟC	Conversion accuracy: ±4.0 ˚C Temperature characteristics: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±14.0 ˚C Effect per wiring resistance: 0.011 ˚C/Ω
Accuracy: B: 800...1700 ﾟC	Conversion accuracy: ±3.5 ˚C Temperature characteristics: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±13.5 ˚C Effect per wiring resistance: 0.010 ˚C/Ω
Accuracy: B: 1700...1820 ﾟC	―
Accuracy: R: -50...0 ﾟC	―
Accuracy: R: 0...300 ﾟC	Conversion accuracy: ±4.0 ˚C Temperature characteristics: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±14.0 ˚C Effect per wiring resistance: 0.013 ˚C/Ω
Accuracy: R: 300...1600 ﾟC	Conversion accuracy: ±3.5 ˚C Temperature characteristics: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±13.5 ˚C Effect per wiring resistance: 0.008 ˚C/Ω
Accuracy: R: 1600...1760 ﾟC	―
Accuracy: S: -50...0 ﾟC	―
Accuracy: S: 0...300 ﾟC	Conversion accuracy: ±4.0 ˚C Temperature characteristics: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±14.0 ˚C Effect per wiring resistance: 0.013 ˚C/Ω
Accuracy: S: 300...1600 ﾟC	Conversion accuracy: ±3.5 ˚C Temperature characteristics: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±13.5 ˚C Effect per wiring resistance: 0.008 ˚C/Ω
Accuracy: S: 1600...1760 ﾟC	―
Accuracy: K: -270...-200 ﾟC	―
Accuracy: K: -200...0 ﾟC	Conversion accuracy: ±2.0 ˚C Temperature characteristics: ±0.25 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±8.25 ˚C Effect per wiring resistance: 0.005 ˚C/Ω
Accuracy: K: 0...200 ﾟC	Conversion accuracy: ±1.5 ˚C Temperature characteristics: ±0.25 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±7.75 ˚C Effect per wiring resistance: 0.002 ˚C/Ω
Accuracy: K: 200...1200 ﾟC	Conversion accuracy: ±2.0 ˚C Temperature characteristics: ±0.25 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±8.25 ˚C Effect per wiring resistance: 0.002 ˚C/Ω
Accuracy: K: 1200...1370 ﾟC	―
Accuracy: E: -270...-200 ﾟC	―
Accuracy: E: -200...200 ﾟC	Conversion accuracy: ±1.5 ˚C Temperature characteristics: ±0.15 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±5.25 ˚C Effect per wiring resistance: 0.003 ˚C/Ω
Accuracy: E: 200...900 ﾟC	Conversion accuracy: ±2.0 ˚C Temperature characteristics: ±0.15 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±5.75 ˚C Effect per wiring resistance: 0.001 ˚C/Ω
Accuracy: E: 900...1000 ﾟC	―
Accuracy: J: -210...-40 ﾟC	―
Accuracy: J: -40...200 ﾟC	Conversion accuracy: ±1.5 ˚C Temperature characteristics: ±0.15 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±5.25 ˚C Effect per wiring resistance: 0.002 ˚C/Ω
Accuracy: J: 200...750 ﾟC	Conversion accuracy: ±2.0 ˚C Temperature characteristics: ±0.15 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±5.75 ˚C Effect per wiring resistance: 0.002 ˚C/Ω
Accuracy: J: 750...1200 ﾟC	―
Accuracy: T: -270...-200 ﾟC	―
Accuracy: T: -200...0 ﾟC	Conversion accuracy: ±2.0 ˚C Temperature characteristics: ±0.1 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±4.5 ˚C Effect per wiring resistance: 0.004 ˚C/Ω
Accuracy: T: 0...350 ﾟC	Conversion accuracy: ±1.5 ˚C Temperature characteristics: ±0.1 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±4.0 ˚C Effect per wiring resistance: 0.002 ˚C/Ω
Accuracy: T: 350...400 ﾟC	―
Accuracy: N: -270...-200 ﾟC	―
Accuracy: N: -200...0 ﾟC	Conversion accuracy: ±2.5 ˚C Temperature characteristics: ±0.25 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±8.75 ˚C Effect per wiring resistance: 0.007 ˚C/Ω
Accuracy: N: 0...200 ﾟC	Conversion accuracy: ±2.0 ˚C Temperature characteristics: ±0.25 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±8.25 ˚C Effect per wiring resistance: 0.003 ˚C/Ω
Accuracy: N: 200...1250 ﾟC	Conversion accuracy: ±2.5 ˚C Temperature characteristics: ±0.25 ˚C Maximum temperature error at ambient temperature 55 ﾟC: ±8.75 ˚C Effect per wiring resistance: 0.002 ˚C/Ω
Accuracy: N: 1250...1300 ﾟC	―
Accuracy: Cold junction compensation accuracy	±1.0 ˚C
Sampling cycle	20 ms/1 channel
Conversion speed	Sampling period × 3
Absolute maximum input	±5 V
Disconnection detection	Available (each channel independent)
Isolation method	Between thermocouple input/micro voltage input and programmable controller power supply: Transformer Between thermocouple input/micro voltage input channels: Transformer Between cold junction temperature compensation channel (Pt100) and programmable controller power supply: Non-isolation
Dielectric withstand voltage	Between thermocouple input/micro voltage input and programmable controller power supply, between thermocouple input/micro voltage input channels: 1780 V AC rms/3 cycles (altitude 2000 m)
Insulation resistance	Between thermocouple input/micro voltage input and programmable controller power supply: 500 V DC, 100 MΩ or higher Between thermocouple input/micro voltage input channels: 500 V DC, 10 MΩ or higher
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.50 A
External dimensions: Height	98 mm
External dimensions: Width	27.4 mm
External dimensions: Depth	112 mm
Weight	0.25 kg

Specifications

General specifications

Refer to the general specifications of the CPU module.
