Q61LD Mitsubishi MELSEC-Q Series Load cell input

MPN: Q61LD · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – Analog
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can Q61LD be shipped?

Q61LD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q61LD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q61LD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q61LD, subject to availability and destination.

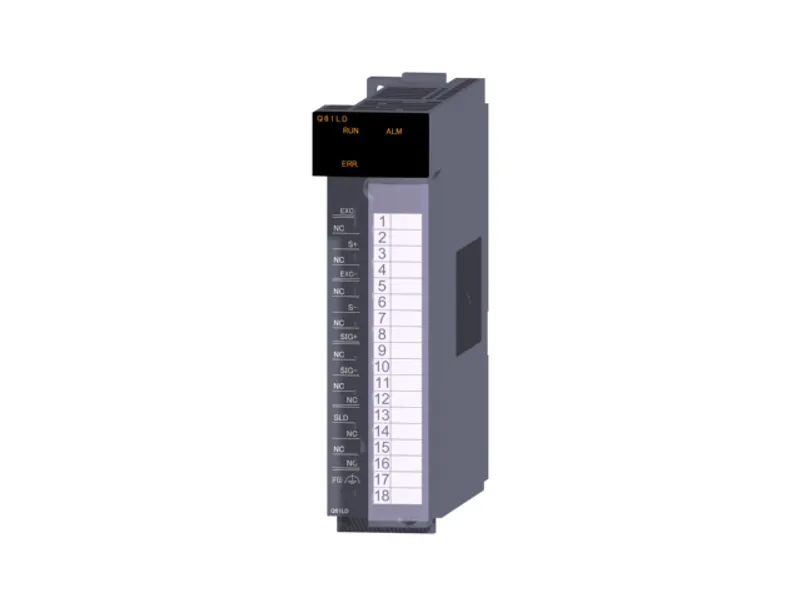

The Mitsubishi Electric Q61LD is a load cell input in the MELSEC-Q Series. 1 channel, input: load cell output 0.0...3.3 mV/V, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Load cell input
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	1 channel, input: load cell output 0.0...3.3 mV/V, 18-point terminal block

Input specifications

Number of analog input points	1 point (1 channel)
Analog input: Load cell output	0.0...3.3 mV/V
Analog input range: Load cell rated output	0.0...1.0 mV/V, 0.0...2.0 mV/V, 0.0...3.0 mV/V
Gross weight output (maximum weighing capacity output value)	32-bit signed binary -99999...99999 (Excluding any decimal point or unit symbol)
ZERO point adjustment range	0.0...3.0 mV/V
Gain adjustment range	0.3...3.2 mV/V
Load cell applied voltage	5 V DC±5 %, output current within 60 mA (four 350 Ω load cells can be connected in parallel.) 6-wire type (combined use of remote sensing method and ratio metric method)
Digital output	32-bit signed binary (0...10000)
I/O characteristics, maximum resolution: Analog input range	Digital output value/Gross weight output value/Maximum resolution
I/O characteristics, maximum resolution: Load cell rated output/Module analog input value: 0...1.0 mV/V / 0...5.0 mV/V	0...10000/-99999...99999 (0.5 µV)
I/O characteristics, maximum resolution: Load cell rated output/Module analog input value: 0...2.0 mV/V / 0...10.0 mV/V	0...10000/-99999...99999 (1.0 µV)
I/O characteristics, maximum resolution: Load cell rated output/Module analog input value: 0...3.0 mV/V / 0...15.0 mV/V	0...10000/-99999...99999 (1.5 µV)
Accuracy (accuracy relative to analog input (load cell rated output) of a module)	Nonlinearity: Within ±0.01 %/FS (ambient temperature 25 ˚C) Zero drift: Within ±0.25 µV/˚C RTI Gain drift: Within ±15 ppm/˚C
Sampling cycle	10 ms
Response time	0.4 s or less (0 to 90 %)
Absolute maximum input	±2.5 V

Common specifications

Isolation method	Photocoupler
Dielectric withstand voltage	Between input terminals and programmable controller power supply: 500 V AC for 1 minute
Insulation resistance	Between input terminals and programmable controller power supply: 500 V DC, 10 MΩ or higher
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.48 A
External dimensions: Height	98 mm
External dimensions: Width	27.4 mm
External dimensions: Depth	90 mm
Weight	0.17 kg
