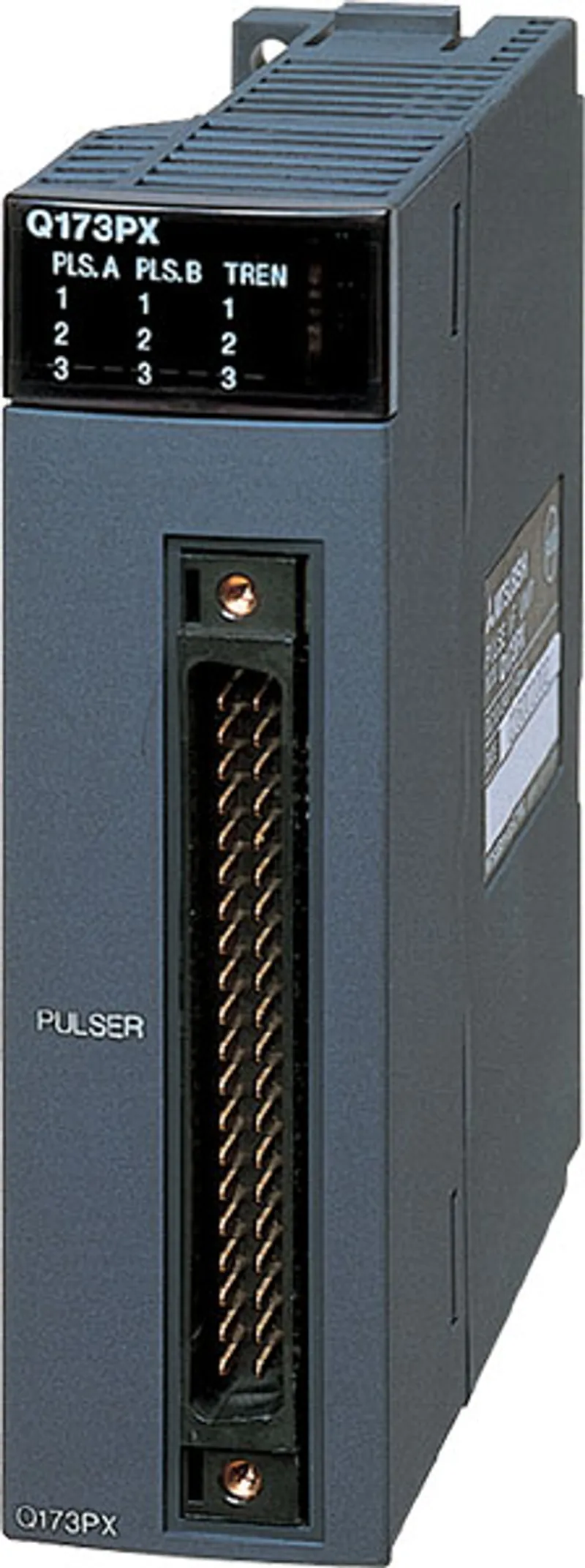

Mitsubishi Electric Q173PX

Mitsubishi MELSEC-Q Series Motion CPU

MPN
Q173PX
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q173PX (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q173PX?

The Mitsubishi Electric Q173PX is a motion CPU in the MELSEC-Q Series. Manual pulse generator interface module Manual pulse generator MR-HDP01/Incremental synchronous encoder interface × 3, Tracking input 3 points. Mitsubishi Electric has discontinued it (2018/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMotion CPU
TypeMotion controller
SubtypeManual pulse input
Sales status2018/09 Discontinued (Mitsubishi Electric)
OutlineManual pulse generator interface module Manual pulse generator MR-HDP01/Incremental synchronous encoder interface × 3, Tracking input 3 points

Module specifications

Manual pulse generator/incremental synchronous encoder input: Number of modules3 per module
Manual pulse generator/incremental synchronous encoder input: Voltage-output/Open-collector type: High-voltage3.0 V DC to 5.25 V DC
Manual pulse generator/incremental synchronous encoder input: Voltage-output/Open-collector type: Low-voltage0 V DC to 1.0 V DC
Manual pulse generator/incremental synchronous encoder input: Differential-output type: High-voltage2.0 V DC to 5.25 V DC
Manual pulse generator/incremental synchronous encoder input: Differential-output type: Low-voltage0 V DC to 0.8 V DC
Manual pulse generator/incremental synchronous encoder input: Input frequencyUp to 200 kpps (magnification by 4)
Manual pulse generator/incremental synchronous encoder input: Applicable typesVoltage-output/open-collector type (5 V DC) (Recommended product: MR-HDP01) Differential-output type (26LS31 or equivalent)
Manual pulse generator/incremental synchronous encoder input: Maximum cable lengthVoltage-output type: 10 m/differential-output type: 30 m
Tracking enable input: Number of input points3 points
Tracking enable input: Input methodSink/source (photocoupler isolation)
Tracking enable input: Rated input voltage/current12 V DC/2 mA, 24 V DC/4 mA
Tracking enable input: Operating voltage range10.2 V DC to 26.4 V DC (ripple ratio 5 % or less)
Tracking enable input: ON voltage/current10 V DC or more/2.0 mA or more
Tracking enable input: OFF voltage/current1.8 V DC or less/0.18 mA or less
Tracking enable input: Response time0.4 ms, 0.6 ms, 1 ms (OFF to ON, ON to OFF) *CPU parameter setting, default 0.4 ms
Number of occupied I/O points32 points (I/O allocation: intelligent function module, 32 points)
5 V DC internal current consumption [A]0.11
Mass [kg]0.15
Exterior dimensions [mm]98.0 (H) × 27.4 (W) × 90.0 (D)
Note1. Compatible model: Q173HCPU(-T), Q172HCPU(-T), Q173CPUN(-T), Q172CPUN(-T), Q173CPU, Q172CPU

Q173PX: frequently asked questions

Can I still buy the Q173PX now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q173PX, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can Q173PX be shipped?

Q173PX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q173PX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q173PX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q173PX, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric Q173DSCPU – Mitsubishi MELSEC-Q Series Motion CPU
Mitsubishi Electric
Q173DSCPU

Mitsubishi MELSEC-Q Series Motion CPU

Mitsubishi Electric Q173DSXY – Mitsubishi MELSEC-Q Series Motion CPU
Mitsubishi Electric
Q173DSXY

Mitsubishi MELSEC-Q Series Motion CPU

Mitsubishi Electric Q173HCPU – Mitsubishi MELSEC-Q Series Motion CPU
Mitsubishi Electric
Q173HCPU

Mitsubishi MELSEC-Q Series Motion CPU

Mitsubishi Electric Q173HCPU-T – Mitsubishi MELSEC-Q Series Motion CPU
Mitsubishi Electric
Q173HCPU-T

Mitsubishi MELSEC-Q Series Motion CPU

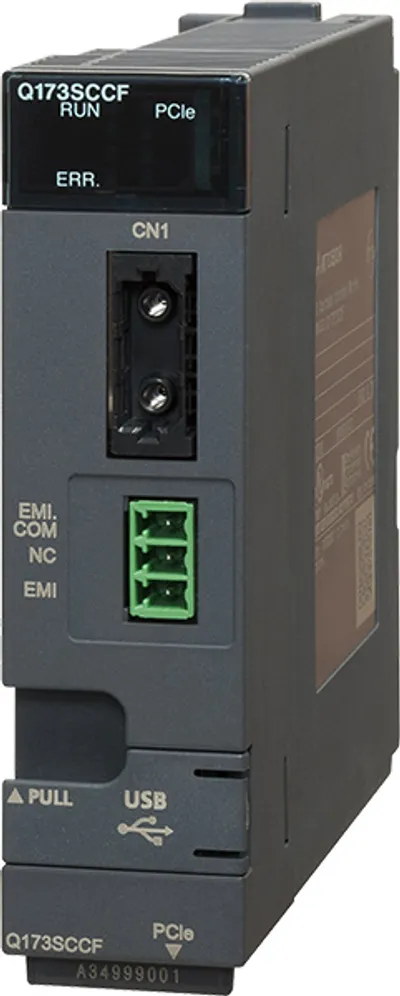

Mitsubishi Electric Q173SCCF – Mitsubishi MELSEC-Q Series C Controller CPU
Mitsubishi Electric
Q173SCCF

Mitsubishi MELSEC-Q Series C Controller CPU

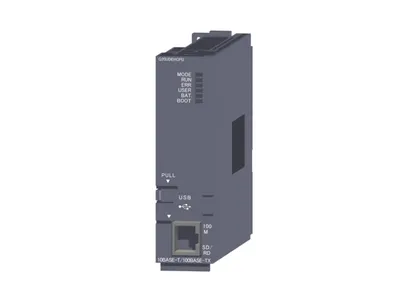

Mitsubishi Electric Q20UDEHCPU – Mitsubishi MELSEC-Q Series Programmable controller CPU
Mitsubishi Electric
Q20UDEHCPU

Mitsubishi MELSEC-Q Series Programmable controller CPU

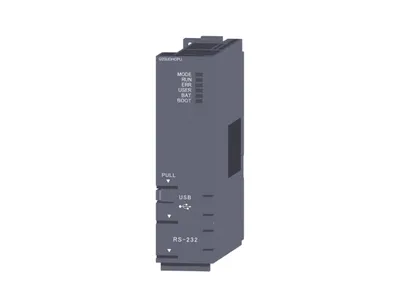

Mitsubishi Electric Q20UDHCPU – Mitsubishi MELSEC-Q Series Programmable controller CPU
Mitsubishi Electric
Q20UDHCPU

Mitsubishi MELSEC-Q Series Programmable controller CPU

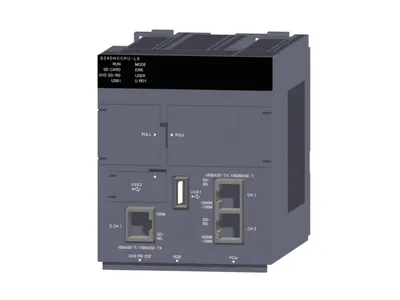

Mitsubishi Electric Q24DHCCPU-LS – Mitsubishi MELSEC-Q Series C Controller CPU
