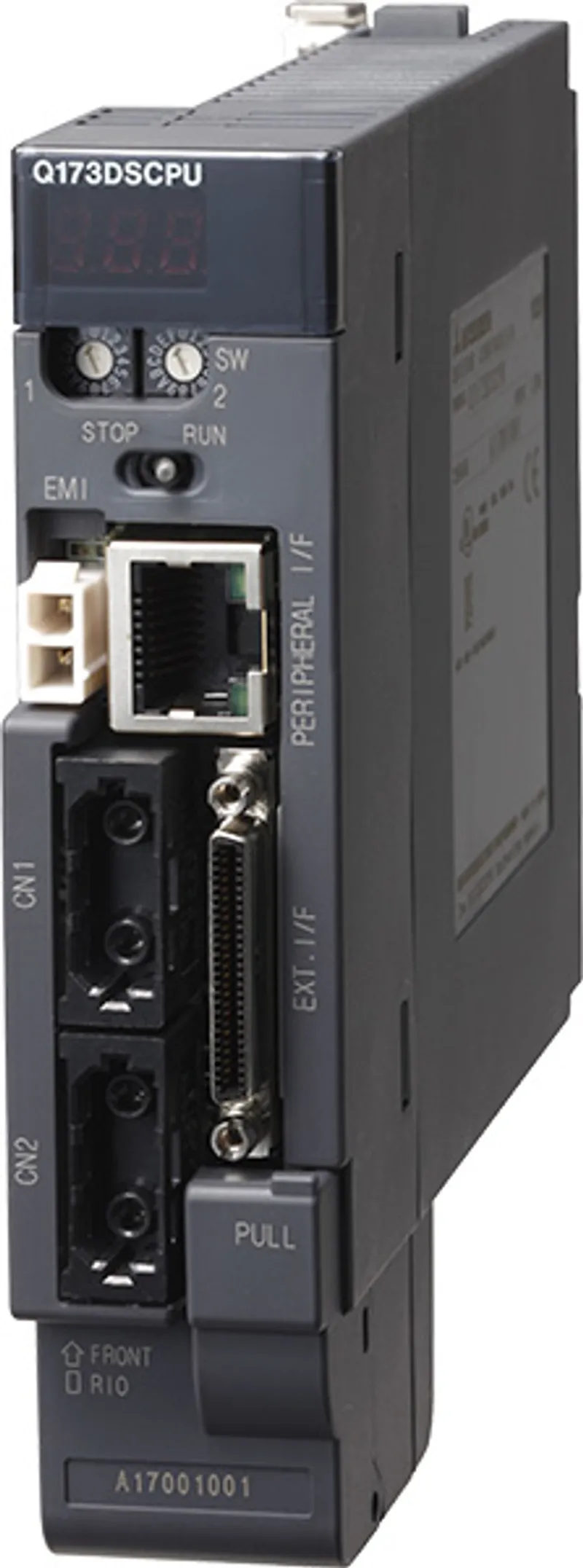

Mitsubishi Electric Q173DSCPU

Mitsubishi MELSEC-Q Series Motion CPU

MPN
Q173DSCPU
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q173DSCPU?

The Mitsubishi Electric Q173DSCPU is a motion CPU in the MELSEC-Q Series. Maximum number of control axes: 32 axes (up to 16 axes/line × 2), SSCNET III/H connection. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMotion CPU
TypeMotion controller
SubtypeSSCNETⅢ/H
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineMaximum number of control axes: 32 axes (up to 16 axes/line × 2), SSCNET III/H connection

Control specifications

Number of control axesUp to 32 axes (16 axes/line)
Operation cycle (operation cycle settings) *10.22 ms, 0.44 ms, 0.88 ms, 1.77 ms, 3.55 ms, 7.11 ms
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation, helical interpolation (3 axes)
Control methodPositioning control, speed control, speed-torque control, speed-position switching control, fixed-pitch feed control, synchronous control (SV22 (advanced synchronous control method/virtual mode switching method)), cam control (SV22), constant speed control, position follow-up control, speed control with fixed position stop, high-speed oscillation control, speed switching control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, S-curve acceleration/deceleration, advanced S-curve acceleration/deceleration
Compensation functionBacklash compensation, electronic gear, phase compensation (SV22)
Synchronous controlSynchronous encoder input, cam, phase compensation, cam auto-generation
Control unitmm, inch, degree, pulse
Programming languageMotion SFC, dedicated instruction, mechanical support language (SV22)
Servo program capacity16k steps
Number of positioning points3200 points (positioning data can be set indirectly)
Home position returnProximity dog method (2 types), count method (3 types), data set method (2 types), dog cradle method, stopper method (2 types), limit switch combined method, scale home position signal detection method, dogless home position signal reference method (home position return re-try function provided, home position shift function provided)
Positioning controlLinear interpolation control (up to 4 axes), fixed-pitch feed control (up to 3 axes), 2-axis circular interpolation (auxiliary point-specified, radius-specified, central point-specified), speed control (1-axis), speed-position switching control (INC mode), current value change
Manual controlJOG operation, manual pulse generator operation (possible to connect 3 modules (Q173DPX use), possible to connect 1 module (internal I/F use) *6 )
Speed-torque controlSpeed control not including position loop, torque control, continuous operation to torque control
Multiple CPU synchronous controlUp to 96 axes (by use of three modules of Q173DSCPU)
Synchronous encoder operation function12 modules connectable (SV22) *8 (Q172DEX + Q173DPX + built-in interface in Motion CPU + via device *7 + via servo amplifier *7 *9 + multiple CPU synchronous control *7 )
Speed limitSpeed limit value, JOG speed limit value
Torque limit functionTorque limit value (positive/negative direction)
M-code output functionProvided
Speed changeProvided
Acceleration/deceleration processing changeAcceleration/deceleration time
Limit switch output functionNumber of output points: 64 points (advanced synchronous control method), 32 points (virtual mode switching method (SV13)) Watch data: Motion control data, word device
ROM operation functionProvided
External input signalQ172DLX (FLS, RLS, STOP, DOG), external input signals (FLS, RLS, DOG) of servo amplifier, internal I/F (DI), bit device
High-speed reading function *10Available (via input module, built-in interface in Motion CPU, tracking of Q172DEX/Q173DPX)
Mark detection functionContinuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signal4 points (via Internal I/F), bit device, Q172DLX (DOG)
Mark detection function: Mark detection setting32 settings
Torque limit value changeProvided
Target position change functionTarget position change, movement distance change
Servo parameter change functionProvided
Servo amplifier control mode switching functionGain switching function, PI-PID control, control loop changing (fully closed loop control, semi closed loop control)
Optional data monitor functionUp to 6 data/axis (communication data: up to 6 points/axis)
Forced stopMotion controller forced stop (EMI connector, system setting), forced stop terminal of servo amplifier
Software stroke limit functionMovable range check with current feed value
Hardware stroke limit functionProvided
Number of I/O points256 points
Clock functionProvided
Security functionPassword registration, password for every Motion SFC program, software security key function
All clear functionDelete all user data in Motion CPU
Remote operationRemote RUN/STOP, remote latch clear
Digital oscilloscope functionBit data: 16 channels, word data: 16 channels *5
Driver communication functionProvided
Amplifier-less operation functionProvided
Absolute position systemProvided (Made compatible by setting battery to servo amplifier.)
Number of SSCNET III/H lines *22 lines
Number of Motion modulesQ172DLX: 4 modules usable Q172DEX: 6 modules usable *3 Q173DPX: 4 modules usable *4

Module specifications

Number of control axesUp to 32 axes
Servo amplifier connection methodSSCNET III/H (2 lines)
Maximum overall cable distance [m]SSCNET III/H: 1600, SSCNET III: 800
Maximum distance between stations [m]SSCNET III/H: 100, SSCNET III: 50
Number of SSCNET III/H head module connection stationsUp to 8 stations (up to 4 stations/line)
PERIPHERAL I/FMotion CPU: PERIPHERAL I/F Via PLC CPU: USB, RS-232, Ethernet
Manual pulse generator interfacePossible to connect 3 modules of manual pulse generator
Controllable modules: Q172DLXUp to 4 modules per CPU
Controllable modules: Q172DEXUp to 6 modules per CPU (SV22 use)
Controllable modules: Q173DPXUp to 4 modules per CPU (incremental synchronous encoder use in SV22) Up to 1 module per CPU (only manual pulse generator use)
Controllable modules: Q173DSXYUp to 3 modules
Controllable modules: I/O moduleTotal: up to 256 points per CPU
Controllable modules: Analog moduleTotal: up to 256 points per CPU
Controllable modules: QI60Up to 1 module per CPU
Input signal: Number of input points4 points
Input signal: Input methodPositive common/negative common shared type (photocoupler isolation)
Input signal: Rated input voltage/current24 V DC/Approx. 5 mA
Input signal: Operating voltage range20.4 V DC to 26.4 V DC (+10 %/-15 %, ripple ratio 5 % or less)
Input signal: ON voltage/current17.5 V DC or more/3.5 mA or more
Input signal: OFF voltage/current5 V DC or less/0.9 mA or less
Input signal: Input resistanceApprox. 5.6 kΩ
Input signal: Response time1 ms or less (OFF to ON, ON to OFF)
Input signal: Recommended wire sizeAWG 18 to AWG 22
Forced stop input signal: Number of input points1 point
Forced stop input signal: Input methodSink/source (photocoupler isolation)
Forced stop input signal: Rated input voltage/current24 V DC/Approx. 2.4 mA
Forced stop input signal: Operating voltage range20.4 V DC to 26.4 V DC (+10 %/-15 %, ripple ratio 5 % or less)
Forced stop input signal: ON voltage/current17.5 V DC or more/2.0 mA or more
Forced stop input signal: OFF voltage/current1.8 V DC or less/0.18 mA or less
Forced stop input signal: Input resistanceApprox. 10 kΩ
Forced stop input signal: Response time1 ms or less (OFF to ON, ON to OFF)
Forced stop input signal: Recommended wire sizeAWG 22
Manual pulse generator/incremental synchronous encoder signal: Signal input formPhase A/phase B (magnification by 4)
Manual pulse generator/incremental synchronous encoder signal: Maximum input pulse frequencyUp to 1 Mpps (after magnification by 4, up to 4 Mpps) (differential-output type) Up to 200 kpps (after magnification by 4, up to 800 kpps) (voltage-output/open-collector type)
Number of stages of extension baseUp to 7 stages
5 V DC internal current consumption [A]1.75
Mass [kg]0.38
Exterior dimensions [mm]120.5 (H) × 27.4 (W) × 120.3 (D)

Q173DSCPU: frequently asked questions

When can Q173DSCPU be shipped?

Q173DSCPU is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q173DSCPU in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q173DSCPU and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q173DSCPU, subject to availability and destination.
