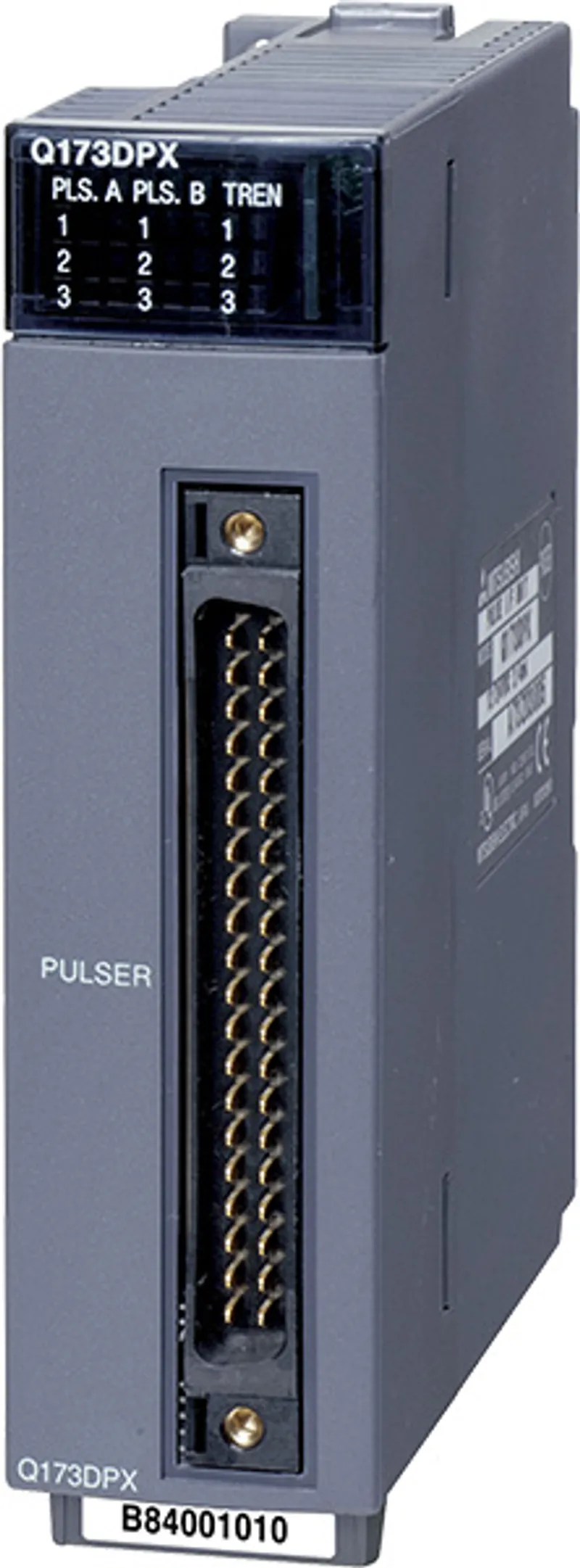

Q173DPX Mitsubishi MELSEC-Q Series Motion CPU

MPN: Q173DPX · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – CPU
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can Q173DPX be shipped?

Q173DPX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q173DPX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q173DPX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q173DPX, subject to availability and destination.

The Mitsubishi Electric Q173DPX is a motion CPU in the MELSEC-Q Series. Manual pulse generator interface module Manual pulse generator MR-HDP01/Incremental synchronous encoder interface × 3, Tracking input 3 points. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Motion CPU
Type	Motion controller
Subtype	Manual pulse input
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	Manual pulse generator interface module Manual pulse generator MR-HDP01/Incremental synchronous encoder interface × 3, Tracking input 3 points

Module specifications

Manual pulse generator/incremental synchronous encoder input: Number of modules	3 per module
Manual pulse generator/incremental synchronous encoder input: Voltage-output/Open-collector type: High-voltage	3.0 V DC to 5.25 V DC
Manual pulse generator/incremental synchronous encoder input: Voltage-output/Open-collector type: Low-voltage	0 V DC to 1.0 V DC
Manual pulse generator/incremental synchronous encoder input: Differential-output type: High-voltage	2.0 V DC to 5.25 V DC
Manual pulse generator/incremental synchronous encoder input: Differential-output type: Low-voltage	0 V DC to 0.8 V DC
Manual pulse generator/incremental synchronous encoder input: Input frequency	50 kpps (up to 200 kpps after magnification by 4)
Manual pulse generator/incremental synchronous encoder input: Applicable types	Voltage-output/open-collector type (5 V DC) (Recommended product: MR-HDP01) Differential-output type (26C31 or equivalent)
Manual pulse generator/incremental synchronous encoder input: Maximum cable length	Voltage-output type: 10 m/differential-output type: 30 m
Tracking enable input: Number of input points	3 points
Tracking enable input: Input method	Positive common/negative common shared type (photocoupler isolation)
Tracking enable input: Rated input voltage/current	12 V DC/2 mA, 24 V DC/4 mA
Tracking enable input: Operating voltage range	10.2 V DC to 26.4 V DC (ripple ratio 5 % or less)
Tracking enable input: ON voltage/current	10 V DC or more/2.0 mA or more
Tracking enable input: OFF voltage/current	1.8 V DC or less/0.18 mA or less
Tracking enable input: Response time	0.4 ms, 0.6 ms, 1 ms (OFF to ON, ON to OFF) *CPU parameter setting, default 0.4 ms
Number of occupied I/O points	32 points (I/O allocation: intelligent function module, 32 points)
5 V DC internal current consumption [A]	0.38
Mass [kg]	0.15
Exterior dimensions [mm]	98.0 (H) × 27.4 (W) × 90.0 (D)
Note	1. Motion modules cannot be installed in CPU slot and I/O slot 0 to 2 of the main base unit. 2. Compatible model: Q173DSCPU, Q172DSCPU, Q170MSCPU(-S1), Q173DCPU, Q172DCPU, Q170MCPU
