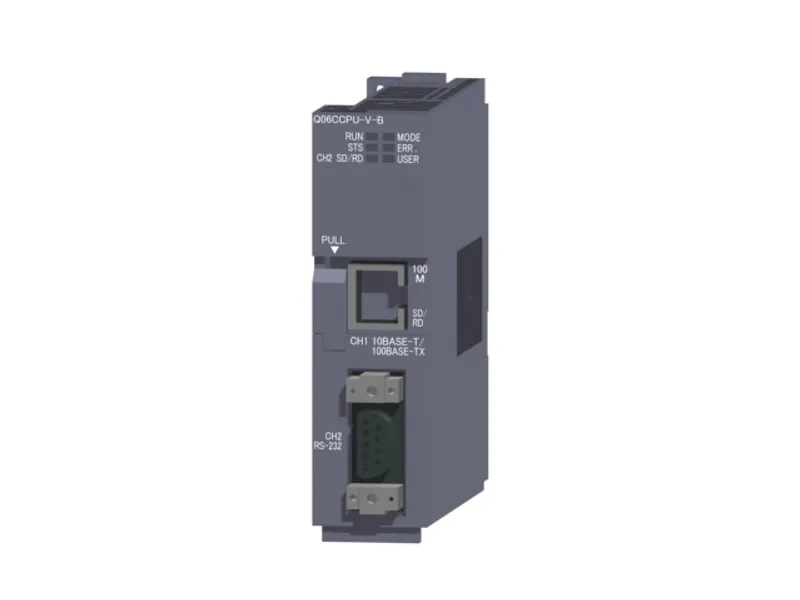

Mitsubishi Electric Q06CCPU-V-B

Mitsubishi MELSEC-Q Series C Controller CPU

MPN
Q06CCPU-V-B
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q06CCPU-V-B (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q06CCPU-V-B?

The Mitsubishi Electric Q06CCPU-V-B is a C Controller CPU in the MELSEC-Q Series. Number of I/O points: 4096, endian format: big endian, CF card not supported, OS: VxWorks Version 5.4. Mitsubishi Electric has discontinued it (2015/11 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryC Controller CPU
TypeC Controller
Sales status2015/11 Discontinued (Mitsubishi Electric)
OutlineNumber of I/O points: 4096, endian format: big endian, CF card not supported, OS: VxWorks Version 5.4

Software specifications

Operating systemVxWorks Version 5.4
Programming languageC language (C/C++)

Hardware specifications

Endian formatBig endian
User file capacity (For user file storage): Standard ROM6M bytes
Work RAM (for OS, driver, user program execution)64M bytes
Battery-backed-up RAM128K bytes
Ethernet: Number of channels1 channel
Ethernet: Interface10BASE-T, 100BASE-TX
Ethernet: Communication methodFull-duplex/half-duplex communication mode
Ethernet: Data transmission speed10 Mbps (10BASE-T), 100 Mbps (100BASE-TX)
Ethernet: Transmission methodBase band
Ethernet: Number of cascaded connectionsMaximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX)
Ethernet: Maximum segment length100 m
Ethernet: Connector applicable to external wiringRJ45
Ethernet: Supported functionAuto-negotiation function (automatic recognition of communication speed/communication method)
RS-232: InterfaceCompliant with RS-232
RS-232: Communication methodFull-duplex/half-duplex communications
RS-232: Synchronization methodStart-stop synchronization method
RS-232: Transmission speed9600, 14400, 19200, 28800, 38400, 57600, 115200 bps
RS-232: Transmission distanceUp to 15 m
RS-232: Data format: Start bit1
RS-232: Data format: Data bit7/8
RS-232: Data format: Parity bits1 (vertical parity) or none
RS-232: Data format: Stop bit1/2
RS-232: Parity checkYes (Even/Odd) / No
RS-232: Sum check codeYes / No
RS-232: Transmission controlFlow control (RS/CS control)
RS-232: Connector applicable to external wiring9-pin D-sub (male) screw type
Number of I/O points4096 points (X/Y0...FFF)
Clock function: Displayed informationYear, month, date, hour, minute, second, and day of the week (Automatic leap year detection)
Clock function: Clock accuracy during power ONAccuracy of VxWorks POSIX Clock Accuracy may vary by the operation program.
Clock function: Clock accuracy during power OFFDaily error: -10.89...+8.64 s (0...55 ˚C) Daily error: -4.32...+5.25 s (25 ˚C) At power ON, an additional error of -0.5...+0.5 s seconds may occur.
Allowable momentary power failure timeThe time differs depending on the power supply module used.
Internal current consumption (5 V DC)0.71 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth89.3 mm
Weight0.17 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I

Q06CCPU-V-B: frequently asked questions

Can I still buy the Q06CCPU-V-B now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q06CCPU-V-B, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can Q06CCPU-V-B be shipped?

Q06CCPU-V-B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q06CCPU-V-B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q06CCPU-V-B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q06CCPU-V-B, subject to availability and destination.
