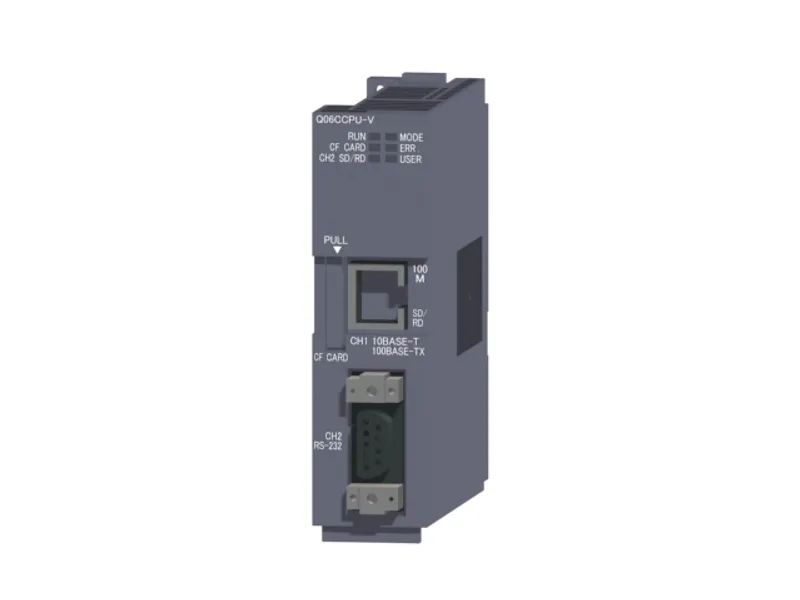

Q06CCPU-V Mitsubishi MELSEC-Q Series C Controller CPU
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q06CCPU-V (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-Q Series – CPU |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the Q06CCPU-V now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q06CCPU-V, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can Q06CCPU-V be shipped?
Q06CCPU-V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Q06CCPU-V in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Q06CCPU-V and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q06CCPU-V, subject to availability and destination.
The Mitsubishi Electric Q06CCPU-V is a C Controller CPU in the MELSEC-Q Series. Number of I/O points: 4096, endian format: little endian, CF card supported, OS: VxWorks Version 5.4. Mitsubishi Electric has discontinued it (2022/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | C Controller CPU |
| Type | C Controller |
| Sales status | 2022/03 Discontinued (Mitsubishi Electric) |
| Outline | Number of I/O points: 4096, endian format: little endian, CF card supported, OS: VxWorks Version 5.4 |
Software specifications
| Operating system | VxWorks Version 5.4 |
| Programming language | C language (C/C++) |
Hardware specifications
| Endian format | Little endian |
| User file capacity (For user file storage): Standard ROM | 6M bytes |
| User file capacity (For user file storage): CompactFlash card | Depends on the CompactFlash card used (Up to 1G bytes) |
| Work RAM (for OS, driver, user program execution) | 64M bytes |
| Battery-backed-up RAM | 128K bytes |
| CompactFlash card: Interface | TYPE I (max. 1G bytes) TYPE II card is not supported I/O cards including a modem card are not supported |
| CompactFlash card: Power supply | +3.3 V DC, max. 150 mA |
| Ethernet: Number of channels | 1 channel |
| Ethernet: Interface | 10BASE-T, 100BASE-TX |
| Ethernet: Communication method | Full-duplex/half-duplex communication mode |
| Ethernet: Data transmission speed | 10 Mbps (10BASE-T), 100 Mbps (100BASE-TX) |
| Ethernet: Transmission method | Base band |
| Ethernet: Number of cascaded connections | Maximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX) |
| Ethernet: Maximum segment length | 100 m |
| Ethernet: Connector applicable to external wiring | RJ45 |
| Ethernet: Supported function | Auto-negotiation function (automatic recognition of communication speed/communication method) |
| RS-232: Interface | Compliant with RS-232 |
| RS-232: Communication method | Full-duplex/half-duplex communications |
| RS-232: Synchronization method | Start-stop synchronization method |
| RS-232: Transmission speed | 9600, 14400, 19200, 28800, 38400, 57600, 115200 bps |
| RS-232: Transmission distance | Up to 15 m |
| RS-232: Data format: Start bit | 1 |
| RS-232: Data format: Data bit | 7/8 |
| RS-232: Data format: Parity bits | 1 (vertical parity) or none |
| RS-232: Data format: Stop bit | 1/2 |
| RS-232: Parity check | Yes (Even/Odd) / No |
| RS-232: Sum check code | Yes / No |
| RS-232: Transmission control | Flow control (RS/CS control) |
| RS-232: Connector applicable to external wiring | 9-pin D-sub (male) screw type |
| Number of I/O points | 4096 points (X/Y0...FFF) |
| Clock function: Displayed information | Year, month, date, hour, minute, second, and day of the week (Automatic leap year detection) |
| Clock function: Clock accuracy during power ON | Accuracy of VxWorks POSIX Clock Accuracy may vary by the operation program. |
| Clock function: Clock accuracy during power OFF | Daily error: -10.89...+8.64 s (0...55 ˚C) Daily error: -4.32...+5.25 s (25 ˚C) At power ON, an additional error of -0.5...+0.5 s seconds may occur. |
| Allowable momentary power failure time | The time differs depending on the power supply module used. |
| Internal current consumption (5 V DC) | 0.75 A |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 27.4 mm |
| External dimensions: Depth | 89.3 mm |
| Weight | 0.17 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -25...75 ˚C |
| Operating ambient humidity | 5...95 %RH, non-condensing |
| Storage ambient humidity | 5...95 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
| Equipment class | Class I |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
More Mitsubishi Electric (Factory Automation) parts
Available on requestQ04UDEHCPU Mitsubishi MELSEC-Q Series Programmable controller CPU
Available on requestQ04UDHCPU Mitsubishi MELSEC-Q Series Programmable controller CPU
Available on requestQ04UDPVCPU Mitsubishi MELSEC-Q Series Process CPU
Available on requestQ04UDVCPU Mitsubishi MELSEC-Q Series Programmable controller CPU
Available on requestQ06CCPU-V-B Mitsubishi MELSEC-Q Series C Controller CPU
Available on requestQ06HCPU Mitsubishi MELSEC-Q Series Programmable controller CPU
Available on requestQ06HCPU-A Mitsubishi MELSEC-Q Series Programmable controller CPU

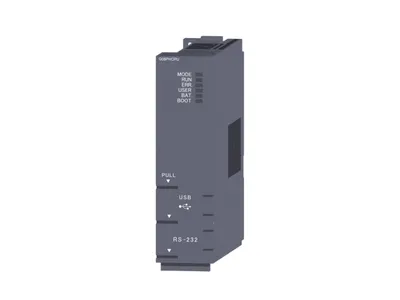

Available on requestQ06PHCPU Mitsubishi MELSEC-Q Series Process CPU
