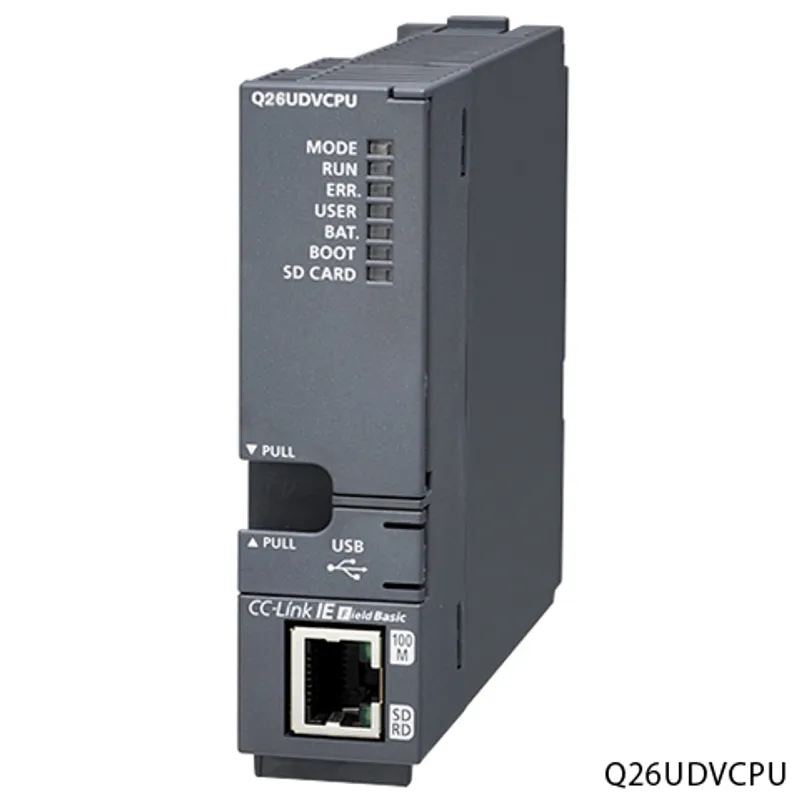

Q04UDVCPU Mitsubishi MELSEC-Q Series Programmable controller CPU

MPN: Q04UDVCPU · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – CPU
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can Q04UDVCPU be shipped?

Q04UDVCPU is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q04UDVCPU in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q04UDVCPU and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q04UDVCPU, subject to availability and destination.

The Mitsubishi Electric Q04UDVCPU is a programmable controller CPU in the MELSEC-Q Series. Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 40K steps, basic operation processing speed (LD X0): 1.9 ns, program memory capacity: 160K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Programmable controller CPU
Type	Universal model
Subtype	High-speed type
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 40K steps, basic operation processing speed (LD X0): 1.9 ns, program memory capacity: 160K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface

Specifications

Control method	Stored program cyclic operation
I/O control mode	Refresh mode (The direct access input/output is available by specifying the direct access input/output (DX, DY).)
Programming language: Sequence control language	Relay symbol language, logic symbolic language, MELSAP3 (SFC), MELSAP-L, function block and structured text (ST)
Processing speed: Sequence instruction: LD X0	1.9 ns
Processing speed: Sequence instruction: MOV D0 D1	3.9 ns
Constant scan	0.5...2000 ms (setting is available in increments of 0.1 ms by parameter)
Program capacity	40K steps (160K bytes)
Memory capacity: Program memory (drive 0)	160K bytes
Memory capacity: Memory card (SD) (drive 2)	Depends on the SD memory card (SD or SDHC type) used. (Max. 32G bytes)
Memory capacity: Standard RAM (drive 3): Without an extended SRAM cassette	256K bytes
Memory capacity: Standard RAM (drive 3): With an extended SRAM cassette	Capacities of the memory in the module + extended SRAM cassette (The maximum capacity of an extended SRAM cassettes is 8M bytes.)
Memory capacity: Standard ROM (drive 4)	1025.5K bytes
Memory capacity: CPU shared memory: QCPU standard memory	8K bytes
Memory capacity: CPU shared memory: Multiple CPU high speed transmission area	32K bytes
Maximum number of storable files: Program memory	124
Maximum number of storable files: Memory card (SD): SD	Root directory: 512 (maximum) Subdirectory: 65534 (maximum)
Maximum number of storable files: Memory card (SD): SDHC	Root directory: 65535 (maximum) Subdirectory: 65534 (maximum)
Maximum number of storable files: Standard RAM	323
Maximum number of storable files: Standard ROM	256
Maximum number of intelligent function module parameters: Initial setting	4096 parameters
Maximum number of intelligent function module parameters: Refresh	2048 parameters
Number of I/O device points	8192 points (X/Y0...1FFF)
Number of I/O points	4096 points (X/Y0...FFF)
No. of device points: Internal relay (M)	15360 points (M0...15359) by default (changeable)
No. of device points: Latch relay (L)	8192 points (L0...8191) by default (changeable)
No. of device points: Link relay (B)	8192 points (B0...1FFF) by default (changeable)
No. of device points: Timer (T)	2048 points (T0...2047) by default (changeable) (Low-speed and high-speed timers available) Low-speed or high-speed is specified by an instruction. The measurement unit is set by parameter. (Low-speed timer: 1...1000 ms (in increments of 1 ms), default: 100 ms) (High-speed timer: 0.01...100 ms (in increments of 0.01 ms), default: 10.0 ms)
No. of device points: Retentive timer (ST)	0 points by default (changeable) (Low-speed and high-speed retentive timers available) Low-speed or high-speed is specified by an instruction. The measurement unit is set by parameter. (Low-speed retentive timer: 1...1000 ms (in increments of 1 ms), default: 100 ms) (High-speed retentive timer: 0.01...100 ms (in increments of 0.01 ms), default: 10.0 ms)
No. of device points: Counter (C)	Normal counter: 1024 points (C0...1023) by default (changeable)
No. of device points: Data register (D)	22528 points (D0...22527) by default (changeable)
No. of device points: Extended data register (D)	0 points by default (changeable)
No. of device points: Link register (W)	8192 points (W0...1FFF) by default (changeable)
No. of device points: Extended link register (W)	0 points by default (changeable)
No. of device points: Annunciator (F)	2048 points (F0...2047) by default (changeable)
No. of device points: Edge relay (V)	2048 points (V0...2047) by default (changeable)
No. of device points: File register (R): Without an extended SRAM cassette	32768 points (R0...32767) (Maximum 131072 points are available by switching blocks.)
No. of device points: File register (R): With Q4MCA-1MBS	32768 points (R0...32767) (Maximum 655360 points are available by switching blocks.)
No. of device points: File register (R): With Q4MCA-2MBS	32768 points (R0...32767) (Maximum 1179648 points are available by switching blocks.)
No. of device points: File register (R): With Q4MCA-4MBS	32768 points (R0...32767) (Maximum 2228224 points are available by switching blocks.)
No. of device points: File register (R): With Q4MCA-8MBS	32768 points (R0...32767) (Maximum 4325376 points are available by switching blocks.)
No. of device points: File register (ZR): Without an extended SRAM cassette	131072 points (ZR0...131071) (Blocks do not need to be switched.)
No. of device points: File register (ZR): With Q4MCA-1MBS	655360 points (ZR0...655359) (Blocks do not need to be switched.)
No. of device points: File register (ZR): With Q4MCA-2MBS	1179648 points (ZR0...1179647) (Blocks do not need to be switched.)
No. of device points: File register (ZR): With Q4MCA-4MBS	2228224 points (ZR0...2228223) (Blocks do not need to be switched.)
No. of device points: File register (ZR): With Q4MCA-8MBS	4325376 points (ZR0...4325375) (Blocks do not need to be switched.)
No. of device points: Link special relay (SB)	2048 points (SB0...7FF) by default (changeable)
No. of device points: Link special register (SW)	2048 points (SW0...7FF) by default (changeable)
No. of device points: Step relay (S)	8192 points (S0...8191) by default (changeable)
No. of device points: Index register/standard device register (Z)	20 points (Z0...19) (maximum)
No. of device points: Index register (Z) (32-bit index modification of ZR device)	10 points (Z0...18) (maximum) (The index register is used as a double-word device.)
No. of device points: Pointer (P)	4096 points (P0...4095) (The number of device points is fixed.) (The local pointer range and the common pointer range can be set by parameter.)
No. of device points: Interrupt pointer (I)	256 points (I0...255) (The number of device points is fixed.) (The fixed scan interval for the system interrupt pointer I28 to 31 can be set by parameter.) 0.5...1000.0 ms (in increments of 0.5 ms) Default I28: 100 ms, I29: 40 ms, I30: 20 ms, I31: 10 ms
No. of device points: Special relay (SM)	2048 points (SM0...2047) (The number of device points is fixed.)
No. of device points: Special register (SD)	2048 points (SD0...2047) (The number of device points is fixed.)
No. of device points: Function input (FX)	16 points (FX0...F) (The number of device points is fixed.)
No. of device points: Function output (FY)	16 points (FY0...F) (The number of device points is fixed.)
No. of device points: Function register (FD)	5 points (FD0...4) (The number of device points is fixed.)
Link direct device	Device that directly accesses the link device of a network module Specification format: J□□\X□□, J□□\Y□□, J□□\SB□□, J□□\W□□, J□□\SW□□
Intelligent function module device	Device that directly accesses the buffer memory of an intelligent function module Specified form: U...\G...
Latch (data retention during power failure) range	8192 points (L0...8191) by default (The latch range can be set for the devices, B, F, V, T, ST, C, D, and W.)
RUN/PAUSE contact	One contact can be set up in X0 to X1FFF for each of RUN and PAUSE.
Clock function	Year, month, date, hour, minute, second, and day of week (automatic leap year detection) Accuracy: -2.97...+3.75 s (TYP. +0.39 s)/d at 0 ˚C Accuracy: -2.97...+3.75 s (TYP. +0.39 s)/d at 25 ˚C Accuracy: -12.77...+2.13 s (TYP. -5.32 s)/d at 55 ˚C
Allowable momentary power failure time	The time differs depending on the power supply module used.
Internal current consumption (5 V DC)	0.58 A (only CPU module), 0.6 A (with an extended SRAM cassette)
External dimensions: Height	98 mm
External dimensions: Width	27.4 mm
External dimensions: Depth	115 mm
Weight	0.20 kg

Specifications of the built-in Ethernet function

Transmission specifications: Data transmission speed	100/10 Mbps
Transmission specifications: Communication mode	Full-duplex/Half-duplex
Transmission specifications: Transmission method	Base band
Transmission specifications: Maximum distance between hub and node	100 m
Number of connections	Total of 16 for Socket communications, MELSOFT connections, and MC protocols. 1 for FTP.

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C (The storage ambient temperature is -20 to 75 ˚C if the system includes the AnS/A Series modules.)
Operating ambient humidity	5...95 %RH, non-condensing (The operating ambient humidity and storage ambient humidity are 10 to 90 %RH if the system includes the AnS/A Series modules.)
Storage ambient humidity	5...95 %RH, non-condensing (The operating ambient humidity and storage ambient humidity are 10 to 90 %RH if the system includes the AnS/A Series modules.)
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QCPU User's Manual (Hardware Design, Maintenance and Inspection) (SH-080483ENG-BC)	PDF · 11.02MB
QnUCPU User's Manual (Function Explanation, Program Fundamentals) (SH-080807ENG-AF)	PDF · 8.49MB
QCPU User's Manual (Multiple CPU System) (SH-080485ENG-V)	PDF · 3.40MB
QnUCPU User's Manual (Communication via Built-in Ethernet Port) (SH-080811ENG-Y)	PDF · 6.91MB
CC-Link IE Field Network Basic Reference Manual (SH-081684ENG-J)	PDF · 4.67MB
QnUDVCPU/LCPU User's Manual (Data Logging Function) (SH-080893ENG-U)	PDF · 7.37MB
MELSEC-Q/L Programming Manual (Common Instruction) (SH-080809ENG-X)	PDF · 24.23MB
MELSEC-Q/L Programming Manual (Structured Text) (SH-080366E-K)	PDF · 2.14MB
MELSEC-Q/L/QnA Programming Manual (PID Control Instructions) (SH-080040-S)	PDF · 7.54MB
MELSEC-Q/L/QnA Programming Manual (SFC) (SH-080041-X)	PDF · 9.11MB
