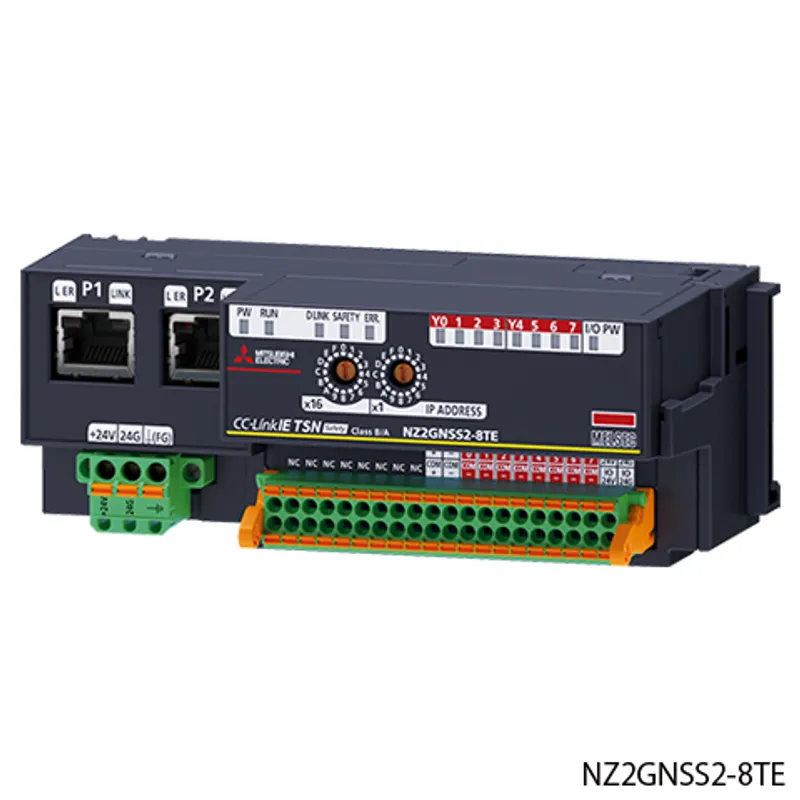

The Mitsubishi Electric NZ2GNSS2-8TE is a remote I/O in the MELSEC network modules. Transistor output: 8 points (single wiring), 4 points (double wiring), 24 V DC, 0.5 A/point, response time: 0.4 ms, 8 points/common, source + source type, spring-clamp terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Safety I/O
Subtype	Output
Outline	Transistor output: 8 points (single wiring), 4 points (double wiring), 24 V DC, 0.5 A/point, response time: 0.4 ms, 8 points/common, source + source type, spring-clamp terminal block

Specifications

Output type	Source + source type
Number of output points	8 points (single wiring), 4 points (double wiring)
Rated load voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Maximum load current	0.5 A/point, 4 A/common
Maximum inrush current	1.0 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.5 V DC (TYP.) 0.5 A, 0.8 V DC (MAX.) 0.5 A
Output circuit response time: OFF to ON	0.4 ms or less (24 V DC)
Output circuit response time: ON to OFF	0.4 ms or less (24 V DC)
Safety remote station refresh response processing time	2.0 ms
Output response time of safety remote station	Output circuit response time
Surge suppressor	Zener diode
Protection function	Output overload protection function
External power supply for output part: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply for output part: Current	70 mA
External power supply for output part: Protection function	External power supply overvoltage protection function
Output common terminal arrangement	8 points/common (spring clamp terminal block type)
Dielectric withstand voltage	Between all DC external terminals and ground: 510 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Station type	Remote station
CC-Link IE TSN Class	CC-Link IE TSN Class B CC-Link IE TSN Class A
CC-Link IE TSN protocol version: CC-Link IE TSN Class B	Protocol version 2.0/1.0
CC-Link IE TSN protocol version: CC-Link IE TSN Class A	Protocol version 2.0
Maximum response time for time-managed polling: CC-Link IE TSN Class A	512 µs
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Multicast filter	Available
Cyclic transmission: RX/RY points	16 points
Cyclic transmission: RWr/RWw points	4 points
Cyclic transmission: SA\X/SA\Y points	32 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	170 mA
Module power supply: Protection function	Module power supply overvoltage protection function, module power supply overcurrent protection function
Module power supply: Fuse	1.6 A (not replaceable)
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) I/O part, external power supply part: 40-point two-piece spring clamp terminal block (push-in)
External dimensions: Height	50 mm
External dimensions: Width	142 mm
External dimensions: Depth	68 mm
Weight	0.25 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-40...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , duration of action 11 ms, 3 times in X, Y, Z directions respectively by sine half-wave pulse)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class III

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link IE TSN Remote I/O Module (With Safety Functions) User's Manual (SH-082227ENG-D)	PDF · 7.23MB
Before Using the Product (BCN-P5999-1254-D)	PDF · 0.91MB
