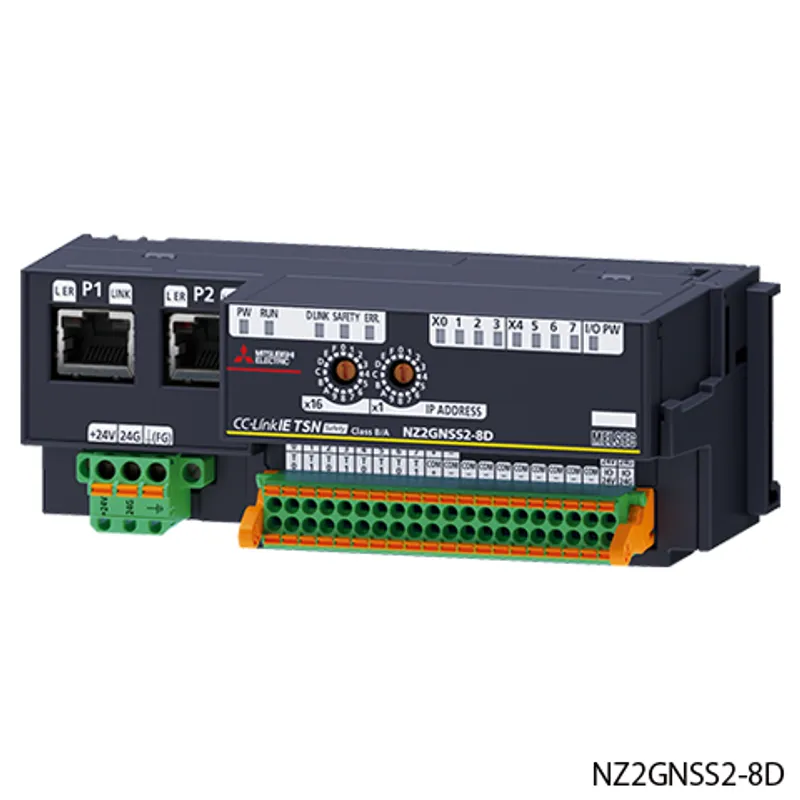

The Mitsubishi Electric NZ2GNSS2-8D is a remote I/O in the MELSEC network modules. DC input: 8 points (single wiring), 4 points (double wiring), 24 V DC, 7.3 mA, response time: 1...70 ms, 8 points/common, negative common type, spring-clamp terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Safety I/O
Subtype	Input
Outline	DC input: 8 points (single wiring), 4 points (double wiring), 24 V DC, 7.3 mA, response time: 1...70 ms, 8 points/common, negative common type, spring-clamp terminal block

Specifications

Input type	DC input (negative common type)
Number of input points	8 points (single wiring) 4 points (double wiring)
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current	7.3 mA TYP. (24 V DC)
Maximum number of simultaneous input points	100 %
ON voltage/ON current	12 V DC or more/3 mA or more
OFF voltage/OFF current	5 V DC or less/1.3 mA or less
Input resistance	2.6 kΩ
Input circuit response time: OFF to ON	0.4 ms or less (24 V DC)
Input circuit response time: ON to OFF	0.4 ms or less (24 V DC)
Safety remote station refresh response processing time	2.0 ms
Input response time of safety remote station	Input circuit response time + Input response time (1.0 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 50 ms, 70 ms)
External power supply for input part: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply for input part: Current	100 mA
External power supply for input part: Protection function	External power supply overvoltage protection function
Power supply current for input device (COM+)	0.4 A/terminal
Input common terminal arrangement	8 points/common (spring clamp terminal block type)
Dielectric withstand voltage	Between all DC external terminals and ground: 510 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Station type	Remote station
CC-Link IE TSN Class	CC-Link IE TSN Class B CC-Link IE TSN Class A
CC-Link IE TSN protocol version: CC-Link IE TSN Class B	Protocol version 2.0/1.0
CC-Link IE TSN protocol version: CC-Link IE TSN Class A	Protocol version 2.0
Maximum response time for time-managed polling: CC-Link IE TSN Class A	512 µs
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Multicast filter	Available
Cyclic transmission: RX/RY points	16 points
Cyclic transmission: RWr/RWw points	4 points
Cyclic transmission: SA\X/SA\Y points	32 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	160 mA
Module power supply: Protection function	Module power supply overvoltage protection function, module power supply overcurrent protection function
Module power supply: Fuse	1.6 A (not replaceable)
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) I/O part, external power supply part: 40-point two-piece spring clamp terminal block (push-in)
External dimensions: Height	50 mm
External dimensions: Width	142 mm
External dimensions: Depth	68 mm
Weight	0.25 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-40...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , duration of action 11 ms, 3 times in X, Y, Z directions respectively by sine half-wave pulse)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class III

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link IE TSN Remote I/O Module (With Safety Functions) User's Manual (SH-082227ENG-D)	PDF · 7.23MB
Before Using the Product (BCN-P5999-1252-D)	PDF · 0.91MB
