NZ2GNS12A2-16DTE Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GNS12A2-16DTE · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE TSN
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GNS12A2-16DTE be shipped?

NZ2GNS12A2-16DTE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GNS12A2-16DTE in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GNS12A2-16DTE and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GNS12A2-16DTE, subject to availability and destination.

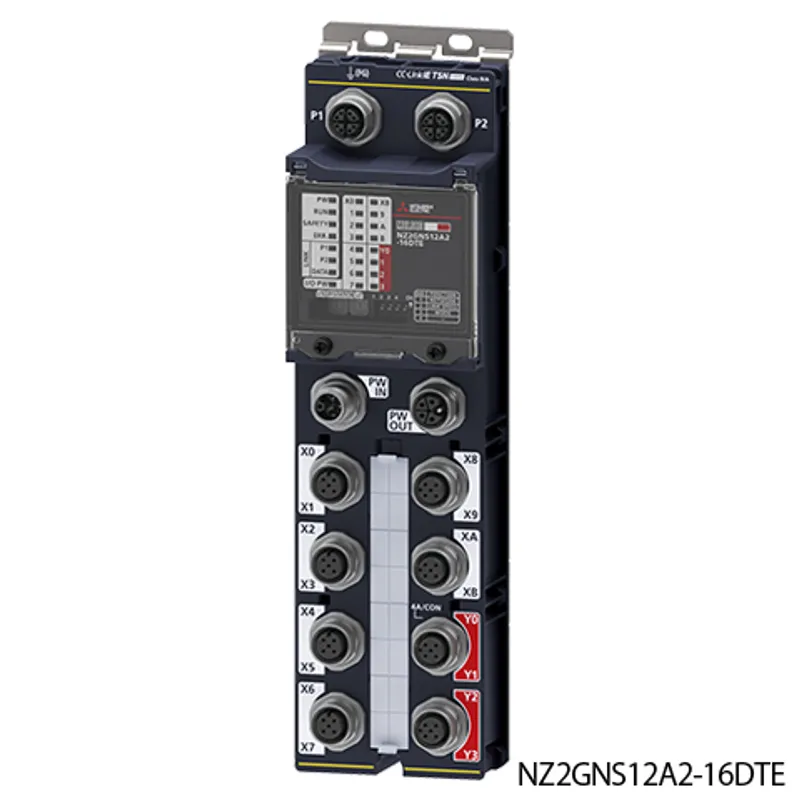

The Mitsubishi Electric NZ2GNS12A2-16DTE is a remote I/O in the MELSEC network modules. DC input: 12 points (single wiring) 6 points (double wiring), 24 V DC, 6.8 mA, response time: 1...70 ms, 12 points/common, negative common, transistor output: 4 points (single wiring), 2 points (double wiring), 24 V DC, 1 A/point, response time: 0.4 ms, 4 points/common, source + source type, waterproof connector type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Safety I/O
Subtype	I/O
Outline	DC input: 12 points (single wiring) 6 points (double wiring), 24 V DC, 6.8 mA, response time: 1...70 ms, 12 points/common, negative common, transistor output: 4 points (single wiring), 2 points (double wiring), 24 V DC, 1 A/point, response time: 0.4 ms, 4 points/common, source + source type, waterproof connector type

Specifications

Input type	DC input (negative common type)
Number of input points	12 points (single wiring) 6 points (double wiring)
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current	6.8 mA TYP. (24 V DC)
Maximum number of simultaneous input points	100 %
ON voltage/ON current	11 V DC or more/4 mA or more
OFF voltage/OFF current	5 V DC or less/1.5 mA or less
Input resistance	3.2 kΩ
Input circuit response time: OFF to ON	0.4 ms or less (24 V DC)
Input circuit response time: ON to OFF	0.4 ms or less (24 V DC)
Safety remote station safety cycle time	2.0 ms
Communication path response time	0.3 ms
Safety remote station refresh response processing time	Safety remote station safety cycle time + Communication path response time
Input response time of safety remote station	Input circuit response time + Input response time (1 ms, 1.5 ms, 5 ms, 10 ms (factory default), 20 ms, 50 ms, 70 ms)
Load power supply and external power supply for output part: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Load power supply and external power supply for output part: Current	60 mA
Load power supply and external power supply for output part: Protection function	External power supply overvoltage protection function
Power supply current for input device	0.4 A/terminal
Input common terminal arrangement	12 points/common
Output type	Transistor output (source + source type)
Number of output points	4 points (single wiring), 2 points (double wiring)
Rated load voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Maximum load current	4 A/point (Y0 to Y1), 2 A/point (Y2 to Y3), 8 A/common
Maximum inrush current	Current is limited by the overload protection function.
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	1.0 V DC or less
Output circuit response time: OFF to ON	0.4 ms or less (24 V DC)
Output circuit response time: ON to OFF	0.4 ms or less (24 V DC)
Output response time of safety remote station	Output circuit response time
Surge suppressor	Zener diode
Protection function	Limited current when detecting overcurrent: 4.4...5.2 A/point
Output common terminal arrangement	4 points/common
Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP67
Station type	Remote station
CC-Link IE TSN Class	CC-Link IE TSN Class B (factory default) CC-Link IE TSN Class A
CC-Link IE TSN protocol version: CC-Link IE TSN Class B	CC-Link IE TSN Protocol version 1.0 CC-Link IE TSN Protocol version 2.0
CC-Link IE TSN protocol version: CC-Link IE TSN Class A	CC-Link IE TSN Protocol version 2.0
Maximum response time for time-managed polling: CC-Link IE TSN Class A	512 µs
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Multicast filter	Available
Cyclic transmission: RX/RY points	16 points
Cyclic transmission: RWr/RWw points	20 points
Cyclic transmission: SA\X/SA\Y points	SA\X: 32 points SA\Y: 32 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	260 mA
Module power supply: Protection function	Module power supply overvoltage protection function, module power supply overcurrent protection function
Module power supply: Fuse	1.6 A (not replaceable), 7 A (not replaceable)
External interface	Communication part: M12 waterproof connector, 8 pins, female, X-code Module power supply part: M12 waterproof connector, 5 pins, male, female, L-code I/O part: M12 waterproof connector, 5 pins, female, A-code
External dimensions: Height	238 mm
External dimensions: Width	63 mm
External dimensions: Depth	49 mm
Weight	0.52 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	Compliant with IP67
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class III
