NZ2GFS12A2-14DT Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GFS12A2-14DT · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2GFS12A2-14DT (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the NZ2GFS12A2-14DT now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2GFS12A2-14DT, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NZ2GFS12A2-14DT be shipped?

NZ2GFS12A2-14DT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GFS12A2-14DT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GFS12A2-14DT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GFS12A2-14DT, subject to availability and destination.

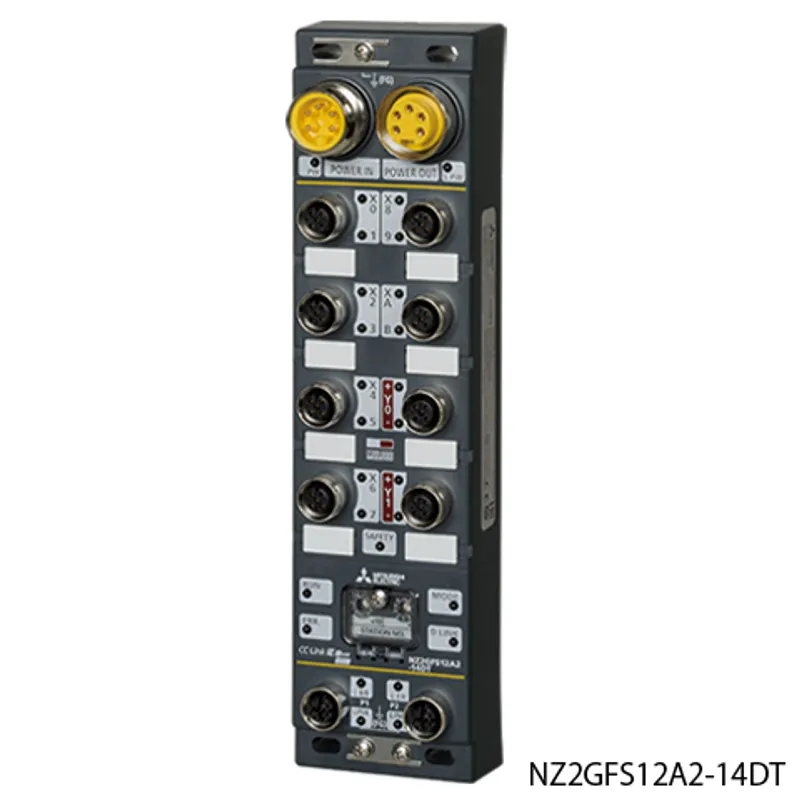

The Mitsubishi Electric NZ2GFS12A2-14DT is a remote I/O in the MELSEC network modules. DC input: 12 points (single wiring) 6 points (double wiring), 24 V DC, 6 mA, response time: 0...1000 ms, 12 points/common, negative common, transistor output: single wiring is not possible, 2 points (double wiring), 24 V DC, 2 A/point, response time: 10 ms, 4 points/common, source + sink type, waterproof connector type, Powered by Molex. Mitsubishi Electric has discontinued it (2023/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
