What is the Mitsubishi Electric NZ2GF2S-60IOLD8?

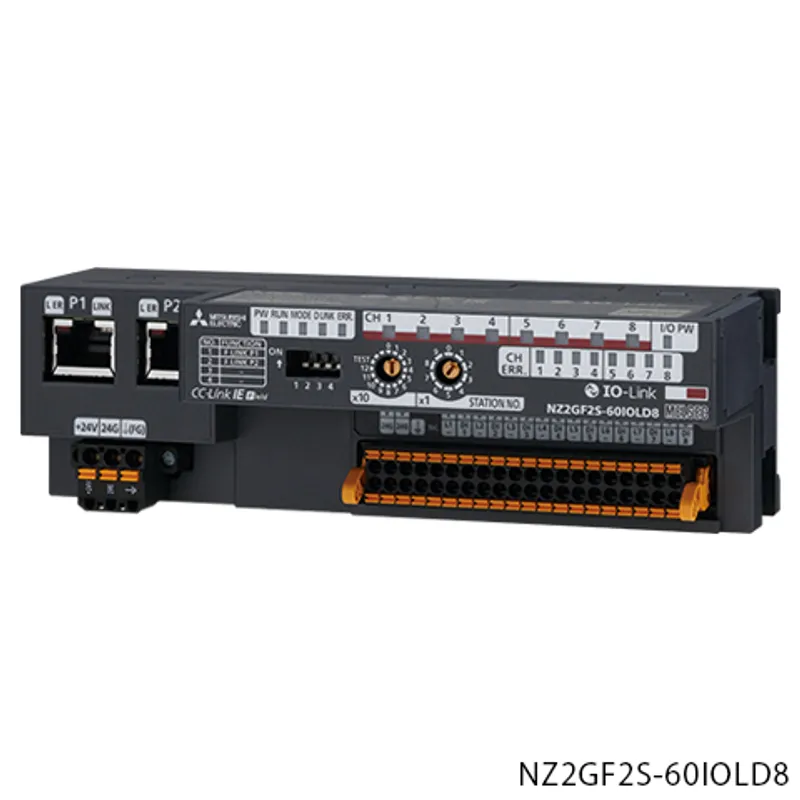

The Mitsubishi Electric NZ2GF2S-60IOLD8 is a remote I/O in the MELSEC network modules. IO-Link master function: max. 8 channels, SIO mode function: sink input, max. 8 channels, source output, max. 8 channels. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeIO-Link
OutlineIO-Link master function: max. 8 channels, SIO mode function: sink input, max. 8 channels, source output, max. 8 channels

Specifications

Module type: CC-Link IE Field NetworkIntelligent device station
Module type: IO-LinkIO-Link master
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Isolation methodBetween I/O and power supply: Digital isolator Between channels: None
Dielectric withstand voltageBetween all DC external terminals and ground: 500 V DC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Common terminal arrangement8 points/common
Surge suppressorZener diode
FuseNone
Protection functionC/Q: Overcurrent, overload protection L+: Overcurrent
External interfaceCC-Link IE Field network part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (spring clamp terminal block (push-in)) IO-Link part: 40-point two-piece spring clamp terminal block (push-in)
Module operation start time: IO-Link mode• 1 channel: 1.5...4 seconds • 8 channels: 12...32 seconds
Module operation start time: SIO mode• 1 channel: 0.2 seconds • 8 channels: 0.2 seconds
Operation modeThe following 6 modes are available. • Disabled mode • IO-Link (standard) mode • IO-Link (sink input) mode • SIO (sink input) mode • SIO (source output) mode • Power supply mode
IO-Link mode: Supported protocolv1.1.2
IO-Link mode: Number of channelsMaximum 8 channels
IO-Link mode: Maximum load current: CQ200 mA/channel, 4 A/common
IO-Link mode: Maximum load current: L+1.6 A/channel, 4 A/common
IO-Link mode: Transmission speed• COM1: 4.8kbps • COM2: 38.4kbps • COM3: 230.4kbps Determined by the IO-Link device connected.
IO-Link modeCompliant with IO-Link standard
Cyclic transmission: RX/RY points48 points
Cyclic transmission: RWr/RWw points132 points
IO-Link (sink input) mode: Number of channelsMaximum 8 channels
IO-Link (sink input) mode: Rated input current2.5 mA TYP. (24 V DC)
IO-Link (sink input) mode: Input response time• 0 ms • 1 ms • 1.5 ms • 5 ms • 10 ms (default value) • 20 ms • 70 ms
IO-Link (sink input) mode: ON voltage/ON current12 V DC or more/2 mA or more
IO-Link (sink input) mode: OFF voltage/OFF current6 V DC or less/2 mA or less
SIO (sink input) mode: Number of channelsMaximum 8 channels
SIO (sink input) mode: Rated input current2.4 mA TYP. (24 V DC)
SIO (sink input) mode: Input response time• 0 ms • 1 ms • 1.5 ms • 5 ms • 10 ms (default value) • 20 ms • 70 ms
SIO (sink input) mode: ON voltage/ON current11 V DC or more/2 mA or more
SIO (sink input) mode: OFF voltage/OFF current6 V DC or less/2 mA or less
SIO (source output) mode: Number of channelsMaximum 8 channels
SIO (source output) mode: Maximum load current200 mA/point, 4 A/common
SIO (source output) mode: Maximum inrush current650 mA, 100 µs or less
SIO (source output) mode: Leakage current at OFF0.1 mA or less
SIO (source output) mode: Maximum voltage drop at ON0.88 V or less, 0.2 mA
IO-Link cable: Cable typeUnshielded
IO-Link cable: Cable length20 m maximum
IO-Link cable: Cable diameterCore 0.2...1.5 mm 2
Communication cableAn Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
Module power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current130 mA or less (at 24 V DC, all points ON)
Module power supply: Protection functionNone
Module power supply: FuseNone
External power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply: Current95 mA or less (24 V DC and all points ON)
External power supply: Protection functionNone
External power supply: FuseNone
External dimensions: Height50 mm
External dimensions: Width163 mm
External dimensions: Depth68 mm
Weight0.24 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases, flammable gases, less conductive dust
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I

NZ2GF2S-60IOLD8: frequently asked questions

When can NZ2GF2S-60IOLD8 be shipped?

NZ2GF2S-60IOLD8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GF2S-60IOLD8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GF2S-60IOLD8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GF2S-60IOLD8, subject to availability and destination.
