NZ2GF2B2-16R Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GF2B2-16R · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GF2B2-16R be shipped?

NZ2GF2B2-16R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GF2B2-16R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GF2B2-16R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GF2B2-16R, subject to availability and destination.

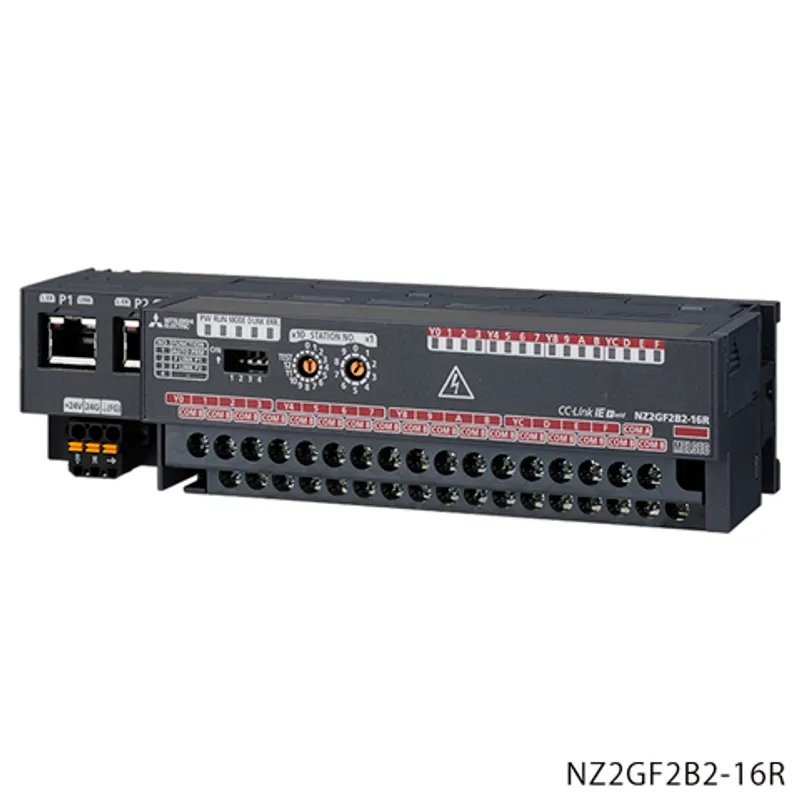

The Mitsubishi Electric NZ2GF2B2-16R is a remote I/O in the MELSEC network modules. Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, 2-wire terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Output
Outline	Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, 2-wire terminal block type

Output specifications

Output type	Contact output
Number of output points	16 points
Rated switching voltage, current	24 V DC 2 A (resistive load)/point, 240 V AC 2 A (cosø=1)/point, 8 A/common
Minimum switching load	5 V DC, 1 mA
Maximum switching voltage	264 V AC, 125 V DC
Life: Mechanical	20 million times or more
Life: Electrical	Rated switching voltage/current load: More than 100 thousand times 200 V AC 1.5 A, 240 V AC 1 A (COSø=0.7): 100 thousand times 200 V AC 0.4 A, 240 V AC 0.3 A (COSø=0.7): 300 thousand times 200 V AC 1 A, 240 V AC 0.5 A (COSø=0.35): 100 thousand times 200 V AC 0.3 A, 240 V AC 0.15 A (COSø=0.35): 300 thousand times 24 V DC 1 A, 100 V DC 0.1 A (L/R=7 ms): 100 thousand times 24 V DC 0.3 A, 100 V DC 0.0
Maximum switching frequency	3600 times/hour
Output response time: OFF to ON	10 ms or less
Output response time: ON to OFF	12 ms or less
Surge suppressor	None
Fuse	None
Output common terminal arrangement	16 points/common (2-wire, screw terminal block type)

Common specifications

Dielectric withstand voltage	Between all AC external terminals and ground: 2300 V AC rms for 1 minute Between all DC external terminals and ground: 510 V AC rms for 1 minute
Insulation resistance	Between all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP1X
Availability of connecting extension module	Connectable (Max. one module)
Station type	Remote device station
Cyclic transmission: RX/RY points	16 points × (1 + number of extension modules)
Cyclic transmission: RWr/RWw points	20 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	190 mA or less (at 24 V DC, all points ON)
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) I/O part: 34-point two-piece terminal block (M3 screw)
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height	50 mm
External dimensions: Width	200 mm
External dimensions: Depth	68 mm
Weight	0.45 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
