What is the Mitsubishi Electric NZ2GF2B2-16A?

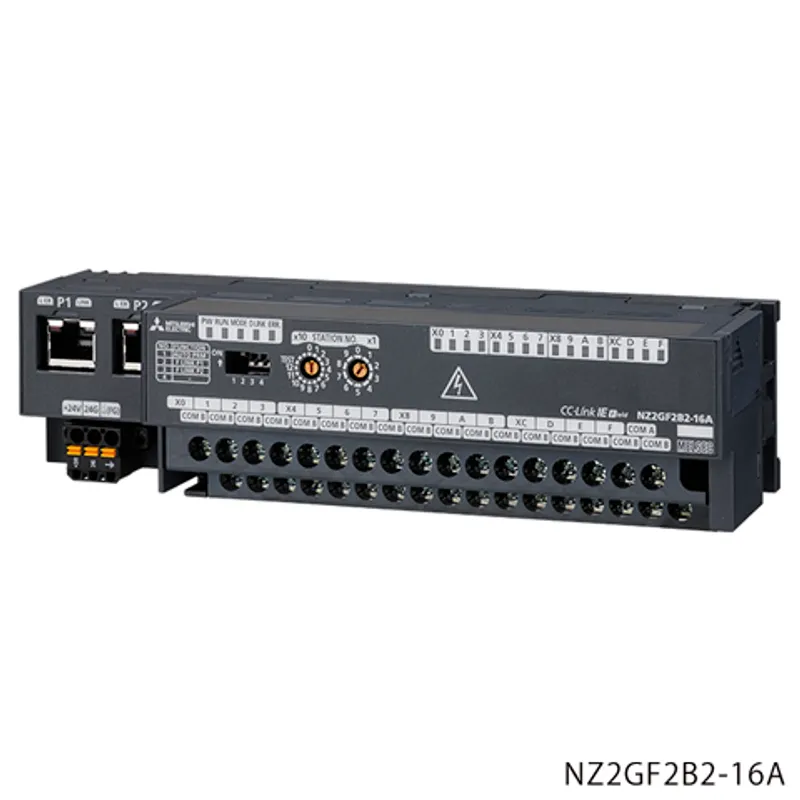

The Mitsubishi Electric NZ2GF2B2-16A is a remote I/O in the MELSEC network modules. AC input: 16 points, 100...120 V AC 8.2 mA (100 V AC, 60 Hz)/6.8 mA (100 V AC, 50 Hz), response time: 20 ms, 16 points/common, 2-wire terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeInput
OutlineAC input: 16 points, 100...120 V AC 8.2 mA (100 V AC, 60 Hz)/6.8 mA (100 V AC, 50 Hz), response time: 20 ms, 16 points/common, 2-wire terminal block

Input specifications

Input typeAC input
Number of input points16 points
Rated input voltage, frequency100...120 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Input voltage distortionWithin 5 %
Rated input current8.2 mA (100 V AC, 60 Hz) 6.8 mA (100 V AC, 50 Hz)
Inrush currentMaximum 200 mA, within 1 ms
ON voltage/ON current80 V AC or more/5 mA or more (50 Hz, 60 Hz)
OFF voltage/OFF current30 V AC or less/1.7 mA or less (50 Hz, 60 Hz)
Input impedanceApprox. 15 kΩ (60 Hz), approx. 18 kΩ (50 Hz)
Input response time: OFF to ON20 ms or less (100 V AC, 60 Hz)
Input response time: ON to OFF20 ms or less (100 V AC, 60 Hz)
Input common terminal arrangement16 points/common (2-wire, screw terminal block type)

Common specifications

Dielectric withstand voltageBetween all AC external terminals and ground: 1400 V AC rms for 1 minute Between all DC external terminals and ground: 510 V AC rms for 1 minute
Insulation resistanceBetween all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP1X
Availability of connecting extension moduleConnectable (Max. one module)
Station typeRemote device station
Cyclic transmission: RX/RY points16 points × (1 + number of extension modules)
Cyclic transmission: RWr/RWw points20 points
Module power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current130 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) I/O part: 34-point two-piece terminal block (M3 screw)
Communication cableAn Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height50 mm
External dimensions: Width200 mm
External dimensions: Depth68 mm
Weight0.4 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

NZ2GF2B2-16A: frequently asked questions

When can NZ2GF2B2-16A be shipped?

NZ2GF2B2-16A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GF2B2-16A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GF2B2-16A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GF2B2-16A, subject to availability and destination.
