NZ2EX2B1N-16T Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2EX2B1N-16T · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2EX2B1N-16T be shipped?

NZ2EX2B1N-16T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2EX2B1N-16T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2EX2B1N-16T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2EX2B1N-16T, subject to availability and destination.

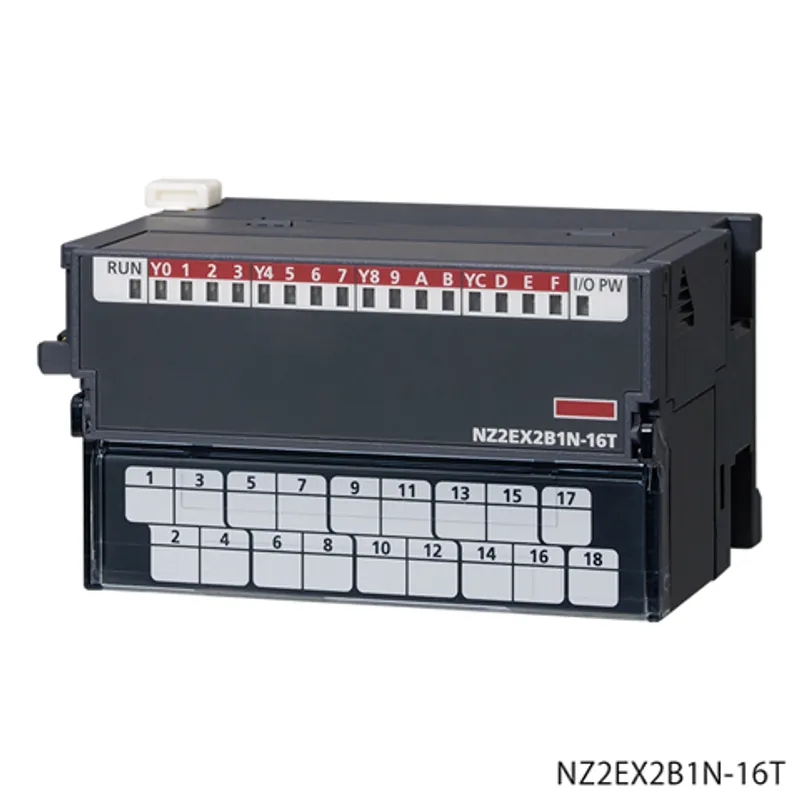

The Mitsubishi Electric NZ2EX2B1N-16T is a remote I/O in the MELSEC network modules. Transistor output: 16 points, 12/24 V DC, 0.5 A/point, 4 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Output (extension)
Outline	Transistor output: 16 points, 12/24 V DC, 0.5 A/point, 4 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire terminal block type

Output specifications

Output type	Transistor output (sink type)
Number of output points	16 points
Rated load voltage	12...24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC)
Maximum load current	0.5 A/point, 4 A/common
Maximum inrush current	Current is limited by the overload protection function.
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.3 V DC or less (TYP.) 0.5 A, 0.6 V DC or less (MAX.) 0.5 A
Output response time: OFF to ON	0.5 ms or less
Output response time: ON to OFF	1.5 ms or less (resistive load)
Surge suppressor	Zener diode
Protection function: Overheat protection function	Activated in increments of 1 point.
Protection function: Overload protection function	Limit current with overload protection at overcurrent detection: 1 A or more/point Activated in increments of 1 point.
External power supply for output part: Voltage	12...24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC)
External power supply for output part: Current	8 mA or less (TYP. 24 V DC/common), excluding external load current
Output common terminal arrangement	16 points/common (1-wire, terminal block type)
Output isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 510 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Cyclic transmission: RX/RY points	16 points
Cyclic transmission: RWr/RWw points	0 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	30 mA or less (at 24 V DC, all points ON)
External interface	I/O part: 18-point two-piece terminal block (M3 screw)
External dimensions: Height	50 mm
External dimensions: Width	84.5 mm
External dimensions: Depth	68 mm
Weight	0.19 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
