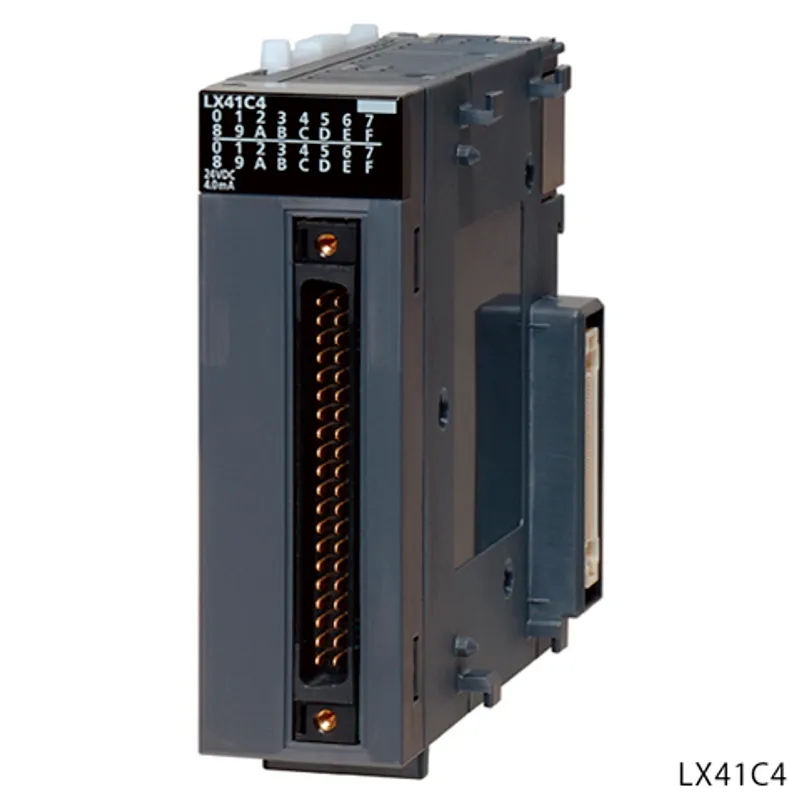

Mitsubishi Electric LX41C4

Mitsubishi MELSEC-L Series Input

MPN
LX41C4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric LX41C4?

The Mitsubishi Electric LX41C4 is a input in the MELSEC-L Series. DC input: 32 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, 40-pin connector. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryInput
TypeDC input (positive/negative common shared)
Sales status2027/09 To be end of order (Mitsubishi Electric)
OutlineDC input: 32 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, 40-pin connector

Input specifications

Input typeDC input (positive/negative shared common type)
Number of input points32 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current4.0 mA TYP. (24 V DC)
ON voltage/ON current19 V or more/3 mA or more
OFF voltage/OFF current9 V or less/1.7 mA or less
Input resistance5.7 kΩ
Input response time: OFF to ON1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less
Input response time: ON to OFF1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less
Input common terminal arrangement32 points/common

Common specifications

Dielectric withstand voltage510 V AC/minute (altitude 2000 m)
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP2X
External interface40-pin connector
External interface: Applicable connectorA6CON1, A6CON2, A6CON3, A6CON4 (sold separately)
Number of occupied I/O points32 points (I/O assignment: Input 32 points)
Internal current consumption (5 V DC)100 mA
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth95 mm
Weight0.11 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

LX41C4: frequently asked questions

When can LX41C4 be shipped?

LX41C4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LX41C4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LX41C4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LX41C4, subject to availability and destination.
