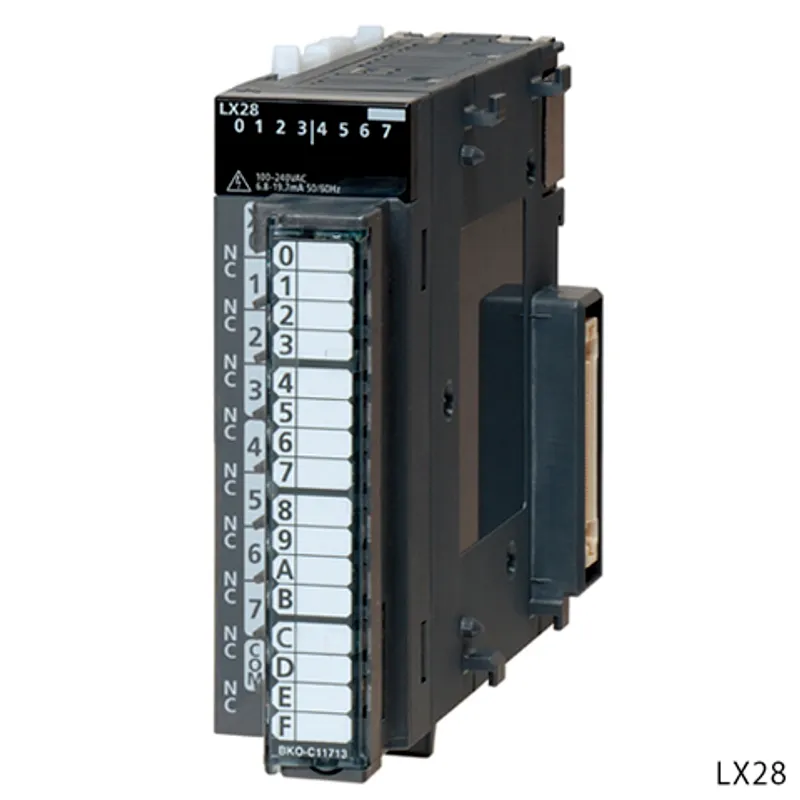

Mitsubishi Electric LX28

Mitsubishi MELSEC-L Series Input

MPN
LX28
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original LX28 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric LX28?

The Mitsubishi Electric LX28 is a input in the MELSEC-L Series. AC input: 8 points, 100...240 V AC 16.4 mA (200 V AC, 60 Hz)/13.7 mA (200 V AC, 50 Hz)/8.2 mA (100 V AC, 60 Hz)/6.8 mA (100 V AC, 50 Hz), response time: 20 ms, 8 points/common, 18-point terminal block. Mitsubishi Electric has discontinued it (2024/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryInput
TypeAC input
Sales status2024/09 Discontinued (Mitsubishi Electric)
OutlineAC input: 8 points, 100...240 V AC 16.4 mA (200 V AC, 60 Hz)/13.7 mA (200 V AC, 50 Hz)/8.2 mA (100 V AC, 60 Hz)/6.8 mA (100 V AC, 50 Hz), response time: 20 ms, 8 points/common, 18-point terminal block

Input specifications

Input typeAC input
Number of input points8 points
Rated input voltage, frequency100...240 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Input voltage distortionWithin 5 %
Rated input current16.4 mA (200 V AC, 60 Hz) 13.7 mA (200 V AC, 50 Hz) 8.2 mA (100 V AC, 60 Hz) 6.8 mA (100 V AC, 50 Hz)
Inrush currentMaximum 950 mA, within 1 ms
ON voltage/ON current80 V AC or more/5 mA or more (50 Hz, 60 Hz)
OFF voltage/OFF current30 V AC or less/1.7 mA or less (50 Hz, 60 Hz)
Input impedance12.2 kΩ (60 Hz), 14.6 kΩ (50 Hz)
Input response time: OFF to ON15 ms or less (100 V AC 50 Hz, 60 Hz) 10 ms or less (200 V AC 50 Hz, 60 Hz)
Input response time: ON to OFF20 ms or less (100/200 V AC, 50 Hz, 60 Hz)
Input common terminal arrangement8 points/common

Common specifications

Dielectric withstand voltage2300 V AC/minute (altitude 2000 m)
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP1X
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Input 16 points)
Internal current consumption (5 V DC)80 mA (TYP. all points ON)
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth117 mm
Weight0.15 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

LX28: frequently asked questions

Can I still buy the LX28 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the LX28, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can LX28 be shipped?

LX28 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LX28 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LX28 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LX28, subject to availability and destination.
