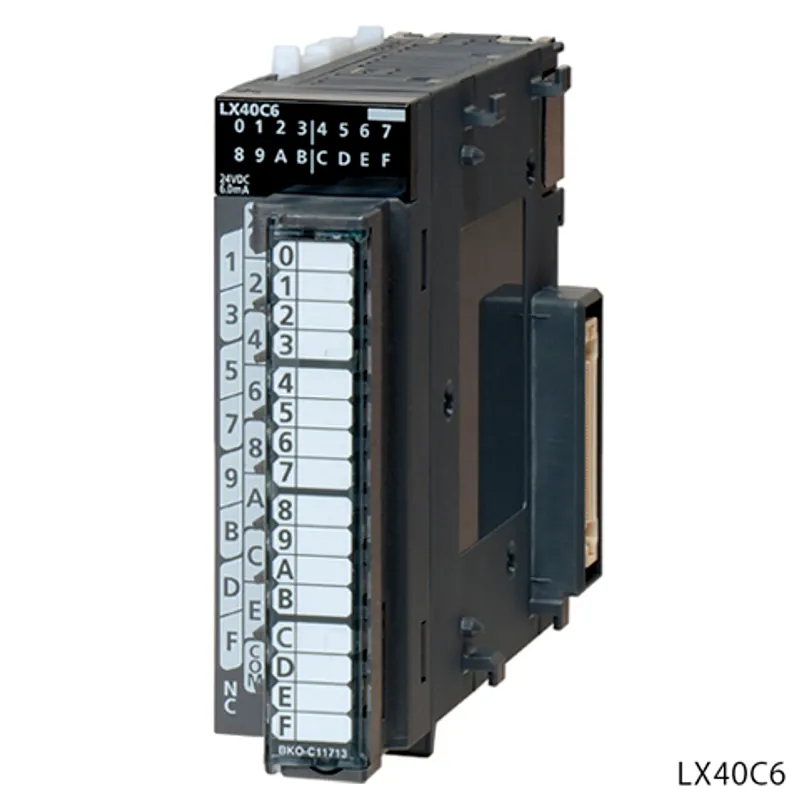

LX40C6 Mitsubishi MELSEC-L Series Input

MPN: LX40C6 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-L Series – I/O
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can LX40C6 be shipped?

LX40C6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LX40C6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LX40C6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LX40C6, subject to availability and destination.

The Mitsubishi Electric LX40C6 is a input in the MELSEC-L Series. DC input: 16 points, 24 V DC 6mA, response time: 1/5/10/20/70 ms, 16 points/common, positive/negative common shared type, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-L Series
Category	Input
Type	DC input (positive/negative common shared)
Sales status	2027/09 To be end of order (Mitsubishi Electric)
Outline	DC input: 16 points, 24 V DC 6mA, response time: 1/5/10/20/70 ms, 16 points/common, positive/negative common shared type, 18-point terminal block

Input specifications

Input type	DC input (positive/negative shared common type)
Number of input points	16 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current	6.0 mA TYP. (24 V DC)
ON voltage/ON current	15 V or more/4 mA or more
OFF voltage/OFF current	8 V or less/2 mA or less
Input resistance	Approx. 3.8 kΩ
Input response time: OFF to ON	1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less
Input response time: ON to OFF	1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less
Input common terminal arrangement	16 points/common

Common specifications

Dielectric withstand voltage	510 V AC/minute (altitude 2000 m)
Insulation resistance	10 MΩ or higher by insulation resistance tester
Protection degree	IP2X
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Input 16 points)
Internal current consumption (5 V DC)	90 mA
External dimensions: Height	90 mm
External dimensions: Width	28.5 mm
External dimensions: Depth	117 mm
Weight	0.15 kg
