What is the Mitsubishi Electric HK-ST1724WB?

The Mitsubishi Electric HK-ST1724WB is a MELSERVO-J5 series in the MELSERVO servo. 200 V: 1000 400 V: 2000. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J5 series
Type200 V AC 400 V AC
Outline200 V: 1000 400 V: 2000

Specifications

SeriesMELSERVO-J5 series
Power class200 V AC 400 V AC
Model nameHK-ST1724WB
Compatible servo amplifier *1Refer to " Combinations of Rotary Servo Motors and Servo Amplifiers ".
Power supply capacity [kVA]Refer to "Power Supply Capacity" for the power supply capacity in "MELSERVO-J5 catalog".
Continuous running duty *5: Rated output [kW]200 V: 0.85 400 V: 1.75
Continuous running duty *5: Rated torque [N・m] *4 *6200 V: 8.1 400 V: 8.4
Maximum torque [N・m] *4200 V: 24.4 400 V: 25.1
Rated speed [r/min] *4 *5200 V: 1000 400 V: 2000
Maximum speed [r/min] *5200 V: 2000 400 V: 4000
Power rate at continuous rated torque [kW/s] *4200 V: 48.3 400 V: 51.1
Rated current [A] *4200 V: 4.5 400 V: 4.7
Maximum current [A] *4200 V: 17 400 V: 16
Moment of inertia J [x 10 -4 kg・m 2 ]13.7
Recommended load to motor inertia ratio *2200 V: 24 times or less 400 V: 4 times or less *9 (When connected with MR-J5D, 11 times or less)
Speed・position detectorBatteryless absolute/incremental 26-bit encoder (resolution: 67,108,864 pulses/rev)
TypePermanent magnet synchronous motor
Oil sealNone (Servo motors with an oil seal are available.)
ThermistorNone
Insulation class155 (F)
StructureTotally enclosed, natural cooling (IP rating: IP67) *3
Environment: Ambient temperature: Operation0 °C to 60 °C (non-freezing) *20
Environment: Ambient temperature: Strage-15 °C to 70 °C (non-freezing)
Environment: Ambient humidity: Operation10 %RH to 90 %RH (non-condensing)
Environment: Ambient humidity: Strage10 %RH to 90 %RH (non-condensing)
Environment: Ambience *19Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust, no object generating a strong magnetic field
Environment: Altitude2000 m or less *21
Environment: External magnetic field10 mT or less
Environment: Vibration resistance *50X: 24.5 m/s 2 ,Y: 49 m/s 2
Vibration rankV10 *50
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Permissible load for the shaft *50: L [mm]55
Permissible load for the shaft *50: Radial [N]980
Permissible load for the shaft *50: Thrust [N]490
Mass [kg]8.8

Specifications

Electromagnetic Brake *22: Servo motor model nameHK-ST1724WB
Electromagnetic Brake *22: TypeSpring actuated type safety brake
Electromagnetic Brake *22: Rated voltage24 V DC (-10 % to 0 %)
Electromagnetic Brake *22: Power consumption [W] at 20 ゚C20
Electromagnetic Brake *22: Electromagnetic brake static friction torque [N・m]8.5 or higher
Electromagnetic Brake *22: Permissible braking work: Per braking [J]400
Electromagnetic Brake *22: Permissible braking work: Per hour [J]4000
Electromagnetic Brake *22: Electromagnetic brake life *23: Number of braking times20000
Electromagnetic Brake *22: Electromagnetic brake life *23: Work per braking [J]200

HK-ST1724WB: frequently asked questions

When can HK-ST1724WB be shipped?

HK-ST1724WB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HK-ST1724WB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HK-ST1724WB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HK-ST1724WB, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

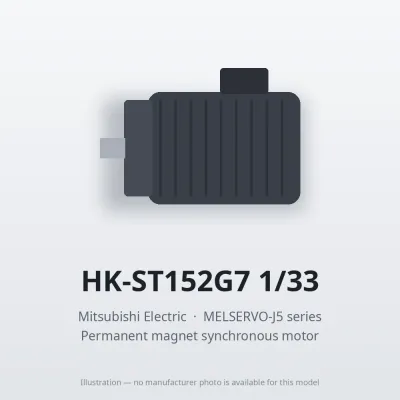

Mitsubishi Electric HK-ST152G7 1/33 – Mitsubishi MELSERVO servo MELSERVO-J5 series
