Mitsubishi MELSERVO servo – Rotary servo motors Parts

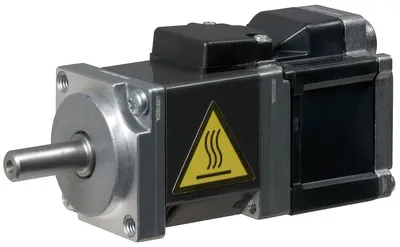

Available on requestHG-AK0336B-S100 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0336B-S100 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0236B-S100 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0236B-S100 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0136B-S100 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0136B-S100 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0336-S100 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0336-S100 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0236-S100 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0236-S100 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0136-S100 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0136-S100 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0336B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0336B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0236B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0236B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0136B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0136B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0336 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0336 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0236 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0236 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-AK0136 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-AK0136 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

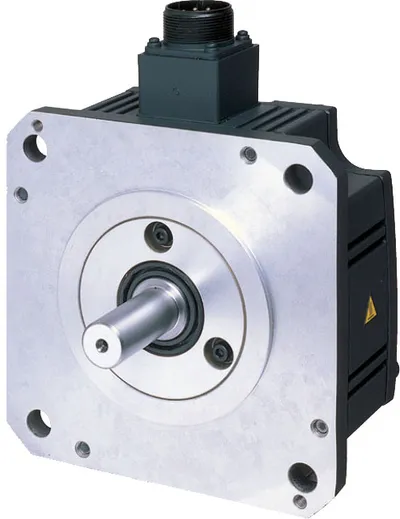

Available on requestHG-UR502B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR502B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-UR352B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR352B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-UR202B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR202B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-UR152B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR152B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-UR72B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR72B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-UR502 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR502 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-UR352 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR352 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-UR202 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR202 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-UR152 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR152 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-UR72 Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-UR72 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

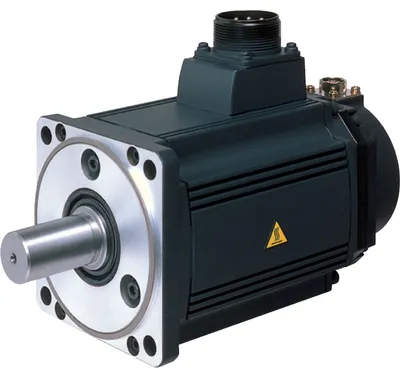

Available on requestHG-RR503B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-RR503B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestHG-RR353B Mitsubishi MELSERVO servo MELSERVO-J4 seriesMPN: HG-RR353B · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteCompare Mitsubishi MELSERVO servo – Rotary servo motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model name | Continuous running duty *1: Rated torque [N・m] *2 | Power rate at continuous rated torque [kW/s] | Moment of inertia J [x 10 -4 kg・m 2 ] | Mass [kg] |
|---|---|---|---|---|---|
| HG-AK0336B-S100 | HG-AK0336B-S100 | 0.095 | 12.32 | 0.0074 | 0.26 |
| HG-AK0236B-S100 | HG-AK0236B-S100 | 0.064 | 6.99 | 0.0058 | 0.24 |
| HG-AK0136B-S100 | HG-AK0136B-S100 | 0.032 | 2.41 | 0.0042 | 0.22 |
| HG-AK0336-S100 | HG-AK0336-S100 | 0.095 | 14.95 | 0.0061 | 0.16 |
| HG-AK0236-S100 | HG-AK0236-S100 | 0.064 | 9.01 | 0.0045 | 0.14 |
| HG-AK0136-S100 | HG-AK0136-S100 | 0.032 | 3.54 | 0.0029 | 0.12 |
| HG-AK0336B | HG-AK0336B | 0.095 | 12.32 | 0.0074 | 0.26 |
| HG-AK0236B | HG-AK0236B | 0.064 | 6.99 | 0.0058 | 0.24 |
| HG-AK0136B | HG-AK0136B | 0.032 | 2.41 | 0.0042 | 0.22 |
| HG-AK0336 | HG-AK0336 | 0.095 | 14.95 | 0.0061 | 0.16 |
| HG-AK0236 | HG-AK0236 | 0.064 | 9.01 | 0.0045 | 0.14 |
| HG-AK0136 | HG-AK0136 | 0.032 | 3.54 | 0.0029 | 0.12 |
| HG-UR502B | HG-UR502B | 23.9 | 46.0 | 124 | 30 |
| HG-UR352B | HG-UR352B | 16.7 | 32.8 | 85.1 | 26 |
| HG-UR202B | HG-UR202B | 9.5 | 19.5 | 46.8 | 22 |
| HG-UR152B | HG-UR152B | 7.2 | 21.2 | 24.2 | 13 |
| HG-UR72B | HG-UR72B | 3.6 | 10.3 | 12.5 | 10 |
| HG-UR502 | HG-UR502 | 23.9 | 49.6 | 115 | 24 |
| HG-UR352 | HG-UR352 | 16.7 | 36.5 | 76.5 | 20 |
| HG-UR202 | HG-UR202 | 9.5 | 23.9 | 38.2 | 16 |
| HG-UR152 | HG-UR152 | 7.2 | 23.2 | 22.1 | 11 |
| HG-UR72 | HG-UR72 | 3.6 | 12.3 | 10.4 | 8.0 |
| HG-RR503B | HG-RR503B | 15.9 | 163 | 15.5 | 21 |
| HG-RR353B | HG-RR353B | 11.1 | 105 | 11.8 | 15 |
Common to all listed parts
| Series | MELSERVO servo |
| Category | MELSERVO-J4 series |
| Thermistor | None |
| Environment *50: Ambient temperature: Operation | 0 °C to 40 °C (non-freezing) |
| Environment *50: Ambient temperature: Strage | -15 °C to 70 °C (non-freezing) |
| Environment *50: Ambient humidity: Operation | 10 %RH to 80 %RH (non-condensing) |
| Environment *50: Ambient humidity: Strage | 10 %RH to 90 %RH (non-condensing) |
| Vibration rank | V10 *50 |
