Mitsubishi Electric GT27-VHOUT
Mitsubishi GOT HMI Option unit
- MPN
- GT27-VHOUT
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

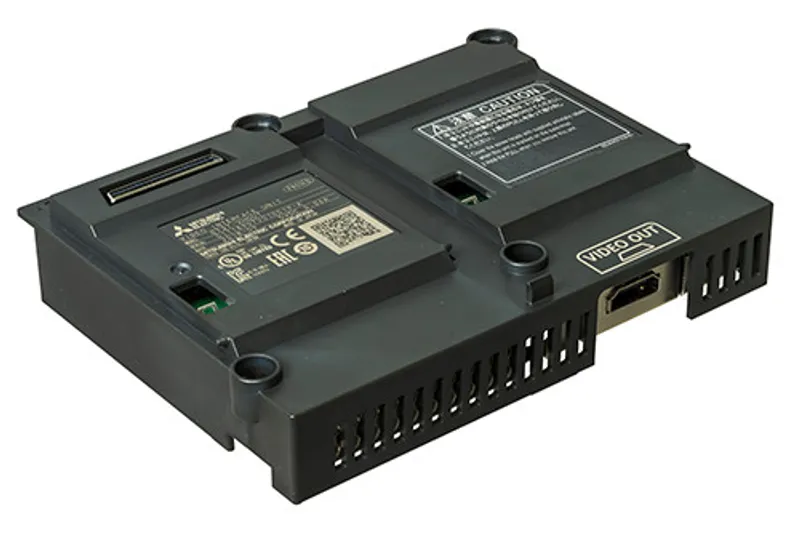

What is the Mitsubishi Electric GT27-VHOUT?
The Mitsubishi Electric GT27-VHOUT is a option unit in the GOT HMI. For digital video output: 1ch Output format: TMDS (Transition Minimized Differential Signaling) Connector shape: HDMI Type A connector. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | GOT HMI |
| Outline | For digital video output: 1ch Output format: TMDS (Transition Minimized Differential Signaling) Connector shape: HDMI Type A connector |
Specifications
| Model | GT27-VHOUT |
| Category | Option units |
| Product name | Digital video output unit |
| Series name | GOT2000 |
| Digital video output section: Output format | TMDS (Transition Minimized Differential Signaling) |
| Digital video output section: Resolution | [GT2715-X] XGA: 1024 x 768 dot [GT2712-S, GT2710-S, GT2708-S] SVGA: 800 x 600 dot [GT2710-V, GT2708-V] VGA: 640 x 480 dot |
| Digital video output section: Number of channels | 1 channel |
| Digital video output section: Horizontal frequency | [GT2715-X] 48.4 kHz [GT2712-S, GT2710-S, GT2708-S] 37.9 kHz [GT2710-V, GT2708-V] 31.5 kHz |
| Digital video output section: Vertical frequency 60 | 60 Hz |
| Digital video output section: Connector for external connection | HDMI Type A connector |
| Internal current consumption: 5 V DC | 0.06 A |
| Weight | 0.16 kg (0.35 lb) |
| Supported model | GT27 (Excluding GT2705-VTBD.) |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- GOT2000 Series Digital Video Output Unit (IB-0800616E-C)
- GOT2000系列 主机使用说明书(硬件篇) (SH-081202CHN-AW)
- GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 (SH-081200ENG-AS)
- GOT2000系列 连接手册(微型计算机/MODBUS/现场总线/周边机器连接篇) 对应GT Works3 Version1 (SH-081208CHN-AS)
GT27-VHOUT: frequently asked questions
When can GT27-VHOUT be shipped?
GT27-VHOUT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GT27-VHOUT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GT27-VHOUT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT27-VHOUT, subject to availability and destination.
