GT2506HS-VTBD Mitsubishi GOT HMI 6.5"

MPN: GT2506HS-VTBD · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi GOT HMI – GOTs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can GT2506HS-VTBD be shipped?

GT2506HS-VTBD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT2506HS-VTBD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT2506HS-VTBD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT2506HS-VTBD, subject to availability and destination.

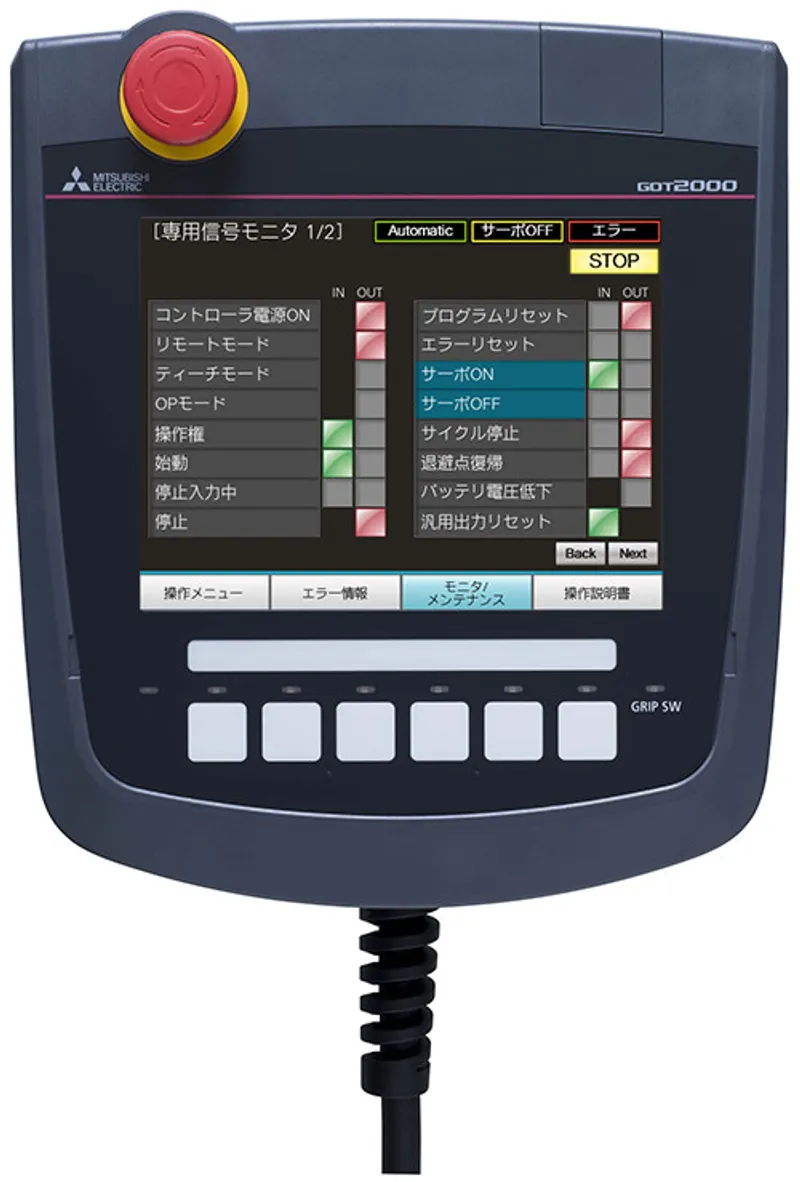

The Mitsubishi Electric GT2506HS-VTBD is a 6.5" in the GOT HMI. Handy GOT. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	GOT HMI
Category	6.5"
Type	VGA: 640 x 480 dots
Outline	Handy GOT

Specifications

Model	GT2506HS-VTBD
Product name	GT25 Handy GOT
Series name	GOT2000
Model name	GT25 Handy GOT

Specifications

Display section 1 2: Display device	TFT color LCD
Display section 1 2: Screen size	6.5"
Display section 1 2: Resolution	VGA: 640 x 480 dots
Display section 1 2: Display size	132.5 (W) x 99.4 (H) mm (5.22 (W) x 3.91 (H) inch)
Display section 1 2: Number of displayed characters	16-dot standard font: 40 characters x 30 lines (two-byte characters) 12-dot standard font: 53 characters x 40 lines (two-byte characters)
Display section 1 2: Display color	65536 colors
Display section 1 2: Brightness adjustment	32 levels
Display section 1 2: Registrable number of screen	4096
Display section 1 2: Backlight	LED (not replaceable)
Display section 1 2: Backlight life *4	Approx. 40000 h (operating ambient temperature: 25°C, display intensity: 50%)
Display section 1 2: Backlight color	White
Touch panel 3 10: Type	Analog resistive film
Touch panel 3 10: Key size	Minimum 2 x 2 dots *7 (per key)
Touch panel 3 10: Simultaneous press	Not available *8 (Only 1 point can be touched.)
Touch panel 3 10: Life	1 million touches or more (operating force: 0.98 N or less)
Human sensor: Detection length	－
Human sensor: Detection temperature	－
User memory	Memory for storage (ROM) *11 : 32 MB Memory for operation (RAM) : 80 MB Life (number of write times) : 100000 times
Built-in clock precision	±90 seconds/month (ambient temperature: 25°C)
Battery: Type	GT15-BAT lithium battery
Battery: Backup target	SRAM data, clock data, system status log data
Battery: Life	Approx. 5 years (ambient temperature: 25°C)
Built-in interface: RS-232: Number of channel	RS-232 or RS-422/485, 1 channel (Select one channel. RS-422/485 is set as the factory default.)
Built-in interface: RS-232: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-232: Connector shape	Square 42 pins (male)
Built-in interface: RS-422/485: Number of channel	RS-232 or RS-422/485, 1 channel (Select one channel. RS-422/485 is set as the factory default.)
Built-in interface: RS-422/485: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-422/485: Connector shape	Square 42 pins (male)
Built-in interface: RS-422/232: Number of channel	－
Built-in interface: RS-422/232: Transmission speed	－
Built-in interface: RS-422/232: Connector shape	－
Built-in interface: RS-422: Number of channel	－
Built-in interface: RS-422: Transmission speed	－
Built-in interface: RS-422: Connector shape	－
Built-in interface: Ethernet: Number of channel	1 channel
Built-in interface: Ethernet: Data transfer method	100BASE-TX, 10BASE-T
Built-in interface: Ethernet: Connector shape	Square 42 pins (male)
Built-in interface: Bus interface: Type	－
Built-in interface: Bus interface: Number of channel	－
Built-in interface: RGB interface	－
Built-in interface: Printer interface	－
Built-in interface: USB (host): Number of channel	1 channel (top face)
Built-in interface: USB (host): Maximum transfer rate	High-Speed 480 Mbps
Built-in interface: USB (host): Connector shape	USB-A
Built-in interface: USB (device): Number of channel	1 channel (top face)
Built-in interface: USB (device): Maximum transfer rate	High-Speed 480 Mbps
Built-in interface: USB (device): Connector shape	USB Mini-B
Built-in interface: SD memory card *11	1 channel, SDHC compliant (maximum 32 GB)
Built-in interface: Wireless LAN communication unit interface	－
Built-in interface: Sound output interface	－
Switch specifications: Operation switch	6 switches (6 contacts/common) N/O contact Max. rating: 10 mA/24 V DC Life: 1000000 times
Switch specifications: Grip switch	1 switch (single wiring) 2 N/O contacts 3-position system OFF - ON - OFF enable switch (deadman switch) Max. rating: 1 A/24 V DC (resistance load) Max. rating: 0.3 A/24 V DC (induction load) Life: 100000 times
Switch specifications: Emergency stop switch	1 switch (single wiring) 3 N/C contacts Max. rating: 1 A/24 V DC (resistance load) Max. rating: 0.3 A/24 V DC (induction load) Life: 100000 times
Switch specifications: Keylock switch (2-position switch)	1 switch (single wiring), 2-position, 2-notch type (A key can be inserted and removed on only the left side. Two keys are provided.), Max. rating 1 A/24 V DC (resistance load), Max. rating 0.3 A/24 V DC (induction load), Life: 100000 times
Buzzer sound	Single tone (tone and tone length adjustable)
LED specifications: POWER LED	2 colors (blue and orange)
LED specifications: Operation switch LED	6 green LEDs (lighting control from display section)
LED specifications: Grip switch LED	1 green LED (lighting control from display section)
Installation method	Handy GOT
Panel color	Black
Protective structure *6	IP65F *9 (When an external cable is connected. The rating is not applied to the relay connector side of the external cable.)
External dimensions	201 (W) x 230 (H) x 97 (D) mm (7.91 (W) x 9.06 (H) x 3.82 (D) inch) (excluding projections such as the emergency stop switch)
Weight (excluding a fitting)	1.2 kg (2.6 lb) (GOT main unit only)

Specifications

Ambient operating temperature	0°C to 40°C
Ambient storage temperature	-20°C to 60°C
Ambient operating humidity	10% RH to 90% RH, non-condensing
Ambient storage humidity	10% RH to 90% RH, non-condensing
Vibration resistance: Approval standards	Compliant with JIS B 3502 and IEC 61131-2 *12
Vibration resistance: Under intermittent vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 3.5 mm Sweep count: 10 times in each X, Y, or Z direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 9.8 m/s 2 Sweep count: 10 times in each X, Y, or Z direction
Vibration resistance: Under continuous vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 1.75 mm [ Frequency: 8.4 to 150 Hz ] Acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 (15 G), 3 times in each X, Y, or Z direction) *12
Operating atmosphere	No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude	2000 m or less
Overvoltage category	II or less
Pollution degree	2 or less
Cooling method	Self-cooling
Grounding	Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm 2 or more. If impossible, connect the ground cable to the control panel.
Remarks: Operating altitude	Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
Remarks: Overvoltage category	This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.
Remarks: Pollution degree	This indicates the occurrence rate of conductive material in an environment where a device is used. Pollution degree 2 indicates an environment where only non-conductive pollution occurs normally and a temporary conductivity caused by condensation shall be expected depending on the conditions.

Specifications

Power supply voltage	24 V DC (+10%, -15%)
Power supply frequency	－
Maximum apparent power	－
Power consumption: Under the maximum load	11.6 Ｗ or less
Power consumption: Main unit (backlight OFF)	8.2 W
Inrush current	30 A or less (2 ms, ambient temperature: 25°C, under the maximum load)
Permissible instantaneous power failure time	5 ms or less
Noise immunity	Noise voltage: 1000 Vp-p, noise width: 1 μs, measured by a noise simulator with noise frequency ranging from 30 Hz to 100 Hz
Withstand voltage	500 V DC for 1 minute across power terminals and earth
Insulation resistance	500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester
