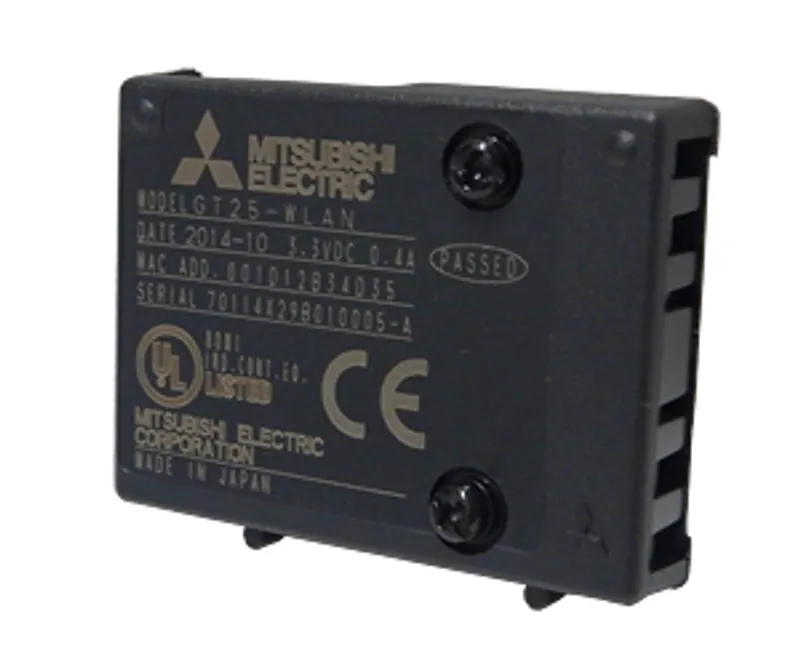

GT25-WLAN Mitsubishi GOT HMI Communication unit
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original GT25-WLAN (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi GOT HMI – Communication units |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the GT25-WLAN now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the GT25-WLAN, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can GT25-WLAN be shipped?
GT25-WLAN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GT25-WLAN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GT25-WLAN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT25-WLAN, subject to availability and destination.
The Mitsubishi Electric GT25-WLAN is a communication unit in the GOT HMI. IEEE802.11b/g/n compliant built-in antenna, wireless LAN access point (base station), station (client) connection to personal computer, tablet, smartphone. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | GOT HMI |
| Sales status | 2025/03 Discontinued (Mitsubishi Electric) |
| Outline | IEEE802.11b/g/n compliant built-in antenna, wireless LAN access point (base station), station (client) connection to personal computer, tablet, smartphone |
Specifications
| Model | GT25-WLAN |
| Category | Communication units |
| Product name | Wireless LAN communication unit |
| Series name | GOT2000 |
| Communication specifications: Standard *1 | IEEE802.11b/g/n compatible |
| Communication specifications: Channel | 11ch (1 to 11ch) |
| Communication specifications: Data rates *2 | IEEE802.11b: up to 11 Mbps IEEE802.11g: up to 54 Mbps IEEE802.11n: up to 72.2 Mbps |
| Communication specifications: Maximum RF power | 15 dBm±2 dB |
| Communication specifications: Bandwidth (Center frequency) | 2412 to 2462 MHz |
| Communication specifications: Wireless connection mode | Infrastructure mode |
| Communication specifications: Security *3 | 64 bit/128 bit WEP WPA-PSK (TKIP, AES) WPA2-PSK (TKIP, AES) |
| Communication specifications: Number of antennae | 1 (Build-in chip antenna) |
| Communication specifications: Action mode | Access point (base station), station (client) *4 |
| Communication specifications: Maximum number of connectable stations (GOT action mode: access point) | 5 |
| Compliance with | Japan Radio Law *5 , FCC standards *6 , RE Directive *8 (R&TTEDirective *6 ), KC *7 , Radio Equipment Regulations (UKCA) *9 |
| Country where the unit can be used | Japan, the United States, the EU member states, the UK, Switzerland, Norway, Iceland, Liechtenstein, and South Korea |
| Internal current consumption: 3.3 V DC | 0.4 A |
| Weight | 0.05 kg |
| Supported model | GT27, GT25 (Excluding GT2505-VTBD, GT2506HS-VTBD, and GT2505HS-VTBD.) *10 , GT25 wide models, GT25 rugged model |
| Remarks -1 | Use compatible versions of the screen design software and BootOS. - Screen design software: GT Works3 Version1.105K or later (for use as a station (client)) GT Works3 Version1.144A or later (for use as an access point (base station) or a station (client)) - BootOS : Version C or later |
| Remarks -2 | Data rates: The values of data rates (11Mbps and others), used in this document and the setting screen, are the theoretical maximum of the wireless LAN standard. These values do not indicate the effective data rates. |
| Remarks -3 | Security: When security authentication is performed by WEP or TKIP method, the wireless LAN communication unit cannot communicate by IEEE802.11n. To communicate by IEEE 802.11n, perform the security authentication by WPA-PSK (AES) or WPA2-PSK (AES) method. |
| Remarks -4 | Data transfer in wireless LAN communication may not be as stable as that in cable communication. A packet loss may occur depending on the surrounding environment and the installation location. Be sure to perform a confirmation of operation before using this product. |
