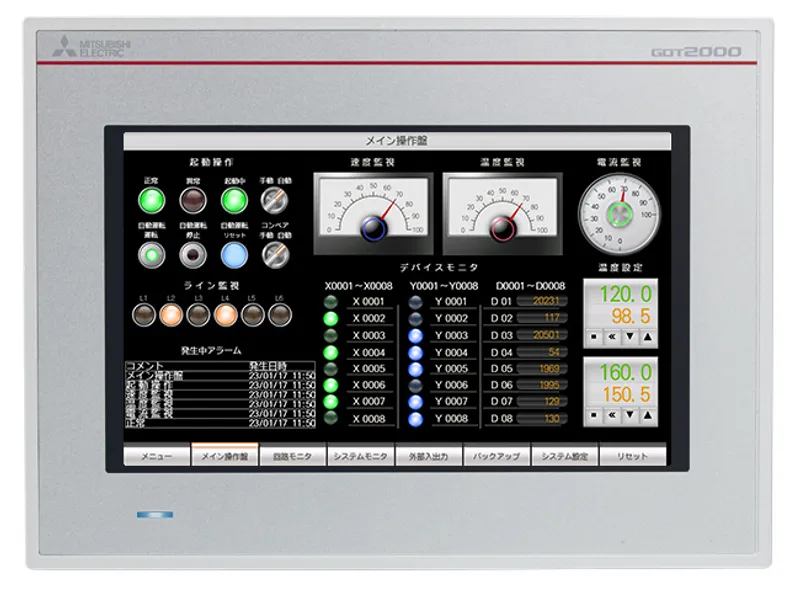

GT2507T-WTSD Mitsubishi GOT HMI 7" Wide

MPN: GT2507T-WTSD · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi GOT HMI – GOTs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can GT2507T-WTSD be shipped?

GT2507T-WTSD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT2507T-WTSD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT2507T-WTSD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT2507T-WTSD, subject to availability and destination.

The Mitsubishi Electric GT2507T-WTSD is a 7" Wide in the GOT HMI. Standard. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	GOT HMI
Category	7" Wide
Type	WVGA: 800 x 480 dots
Outline	Standard

Specifications

Model	GT2507T-WTSD
Product name	GT25 Rugged model
Series name	GOT2000
Model name	GT25 Rugged

Specifications

Display section 1 2: Display device	TFT color LCD
Display section 1 2: Screen size	7" Wide
Display section 1 2: Resolution	WVGA: 800 x 480 dots
Display section 1 2: Display size	152.40 (W) x 91.44 (H) mm (6.00 (W) x 3.60 (H) inch)
Display section 1 2: Number of displayed characters	16-dot standard font: 50 characters x 30 lines (two-byte characters) 12-dot standard font: 66 characters x 40 lines (two-byte characters)
Display section 1 2: Display color	65536 colors
Display section 1 2: Brightness adjustment	32 levels
Display section 1 2: Registrable number of screen	4096
Display section 1 2: Backlight	LED (not replaceable)
Display section 1 2: Backlight life *4	Approx. 50000 h (operating ambient temperature: 25°C, display intensity: 50%)
Display section 1 2: Backlight color	White
Touch panel 3 9: Type	Analog resistive film
Touch panel 3 9: Key size	Minimum 2 x 2 dots *7 (per key)
Touch panel 3 9: Simultaneous press	Not available *5 (Only 1 point can be touched.)
Touch panel 3 9: Life	1 million touches or more (operating force: 0.98 N or less)
Human sensor: Detection length	－
Human sensor: Detection temperature	－
User memory	Memory for storage (ROM) *10 : 32 MB Memory for operation (RAM) : 128 MB Life (number of write times) : 100000 times
Built-in clock precision	±90 seconds/month (ambient temperature: 25°C)
Battery: Type	GT11-50BAT lithium battery
Battery: Backup target	SRAM data, clock data
Battery: Life	Approx. 5 years (ambient temperature: 25°C)
Built-in interface: RS-232: Number of channel	1 channel
Built-in interface: RS-232: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-232: Connector shape	D-sub 9-pin (male)
Built-in interface: RS-422/485: Number of channel	1 channel
Built-in interface: RS-422/485: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-422/485: Connector shape	D-sub 9-pin (female)
Built-in interface: RS-422/232: Number of channel	－
Built-in interface: RS-422/232: Transmission speed	－
Built-in interface: RS-422/232: Connector shape	－
Built-in interface: RS-422/232: Application	－
Built-in interface: RS-422: Number of channel	－
Built-in interface: RS-422: Transmission speed	－
Built-in interface: RS-422: Connector shape	－
Built-in interface: Ethernet: Number of channel	2 channel
Built-in interface: Ethernet: Data transfer method	100BASE-TX, 10BASE-T
Built-in interface: Ethernet: Connector shape	RJ45 (modular jack) AUTO MDI/MDI-X
Built-in interface: Bus interface: Type	－
Built-in interface: Bus interface: Number of channel	－
Built-in interface: RGB interface	－
Built-in interface: Printer interface	－
Built-in interface: USB (host): Number of channel	1 channel (rear face)
Built-in interface: USB (host): Maximum transfer rate	High-Speed 480 Mbps
Built-in interface: USB (host): Connector shape	USB-A
Built-in interface: USB (device): Number of channel	1 channel (front face)
Built-in interface: USB (device): Maximum transfer rate	High-Speed 480 Mbps
Built-in interface: USB (device): Connector shape	USB Mini-B
Built-in interface: SD memory card *10	1 channel, SDHC compliant (maximum 32 GB)
Built-in interface: CF card interface	－
Built-in interface: PC card interface	－
Built-in interface: Option function board interface	－
Built-in interface: Memory board interface	－
Built-in interface: Wireless LAN communication unit interface	－
Built-in interface: Sound output interface	－
Buzzer sound	Single tone (tone and tone length adjustable)
LED specifications: POWER LED	2 colors (blue and orange)
Installation method	Standard
Panel color	Silver
Protective structure *6	Front: IP66F 8 , IP67F 8 Inside control panel: IP2X
External dimensions	214 (W) x 158 (H) x 55 (D) mm (8.43 (W) x 6.22 (H) x 2.17 (D) inch)
Panel cut dimensions	197 (W) x 141 (H) mm (7.76 (W) x 5.55 (H) inch)
Weight (excluding a fitting)	1.2 kg (2.6 lb)

Specifications

Ambient operating temperature	-20ºC to 65ºC
Ambient storage temperature	-30ºC to 75ºC
Ambient operating humidity	10% RH to 90% RH, non-condensing
Ambient storage humidity	10% RH to 90% RH, non-condensing
Vibration resistance: Approval standards	IEC 60068-2-6
Vibration resistance: Under intermittent vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 7.0 mm Sweep count: 10 times in each X, Y, or Z direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 19.6 m/s 2 Sweep count: 10 times in each X, Y, or Z direction
Vibration resistance: Under continuous vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 7.0 mm [ Frequency: 8.4 to 150 Hz ] Acceleration: 19.6 m/s 2
Shock resistance	IEC 60068-2-27 (392 m/s 2 , 3 times in each X, Y, or Z direction)
Operating atmosphere	No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude	2000 m or less
Installation location	Inside control panel
Overvoltage category	II or less
Pollution degree	2 or less
Cooling method	Self-cooling
Grounding	Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm 2 or more. If impossible, connect the ground cable to the control panel.
Remarks: Ambient operating temperature	Includes the temperature inside the enclosure of the control panel to which the GOT is installed.
Remarks: Operating altitude	Communication units and options usable with the rugged model can be used in the environment described in the general specifications of the rugged model. However, when a protective cover for oil is mounted on the GOT, the operating ambient temperature must be -20°C to 50°C. For using peripheral devices to be connected to the GOT, please refer to the relevant product manual.
Remarks: Overvoltage category	Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
Remarks: Pollution degree	This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.

Specifications

Power supply voltage	24 V DC (+25%, -20%)
Power supply frequency	－
Maximum apparent power	－
Power consumption: Under the maximum load	17 W or less
Power consumption: Main unit	11 W
Power consumption: Main unit (backlight OFF)	7 W
Inrush current	59 A or less (2 ms, ambient temperature: 25°C, under the maximum load)
Permissible instantaneous power failure time	5 ms or less
Noise immunity	Noise voltage: 500 Vp-p, noise width: 1 μs, measured by a noise simulator with noise frequency ranging from 25 Hz to 60 Hz
Withstand voltage	350 V AC for 1 minute across power terminals and earth
Insulation resistance	500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester
Applicable wire	0.75 mm 2 to 2 mm 2
Applicable solderless terminal	Solderless terminal for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A
Applicable tightening torque (for terminal block terminal screws)	0.5 N・m to 0.8 N・m
