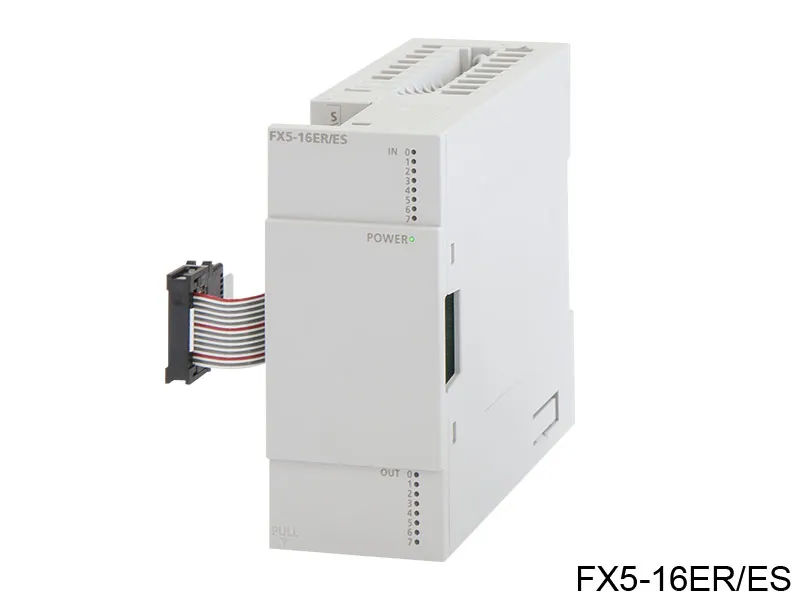

Mitsubishi Electric FX5-16ER/ES

Mitsubishi MELSEC iQ-F Series Input/Output Module

MPN
FX5-16ER/ES
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-16ER/ES?

The Mitsubishi Electric FX5-16ER/ES is a input/Output Module in the MELSEC iQ-F Series. Screw terminal block type Input: 8 points 24 V DC Sink/source Output: 8 points Relay. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryInput/Output Module
OutlineScrew terminal block type Input: 8 points 24 V DC Sink/source Output: 8 points Relay

Specifications

Applicable ControllerMX Controller MX-F model *1
Applicable CPU moduleFX5UJ CPU module FX5U CPU module FX5UC CPU module* * FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Mass (weight)Approx. 0.25 kg

Power supply specifications

Rated voltage: Input24 V DC (supplied from 24 V DC service power supply or external power supply) 5 V DC (supplied from PLC)
Rated voltage: Output24 V DC (supplied from PLC) 5 V DC (supplied from PLC)
Current consumption (5 V DC)100 mA
Current consumption (24 V DC)125 mA (85 mA*) *Current consumption when external power supply is used for the input circuit.

Input specifications

No. of input points8 points
Input connection typeScrew terminal block (M3 screws)
Input typeSink/source
Input signal voltage24 V DC +20%, -15%
Input signal current4.0 mA/24 V DC
Input impedance5.6 kΩ
Input sensitivity current: ON3.0 mA or more
Input sensitivity current: OFF1.5 mA or less
Input response timeON: 50 μs or less OFF: 150 μs or less
Input signal format (Input sensor form)No-voltage contact input Sink: NPN open collector transistor Source: PNP open collector transistor
Input circuit insulationPhoto-coupler insulation
Indication of input operationLED is lit when input is on

Output specifications

No. of output points8 points
Output connection typeScrew terminal block (M3 screws)
Output typeRelay output
External power supply30 V DC or less 240 V AC or less (250 V AC or less when the module does not comply with CE UL, cUL standards)
Max. load2 A/point The total load current of resistance loads per common terminal should be the following value. • 8 output points/common terminal: 8 A or less
Min. load5 V DC, 2 mA (reference values)
Open circuit leakage current-
Response time: OFF→ONApprox. 10 ms
Response time: ON→OFFApprox. 10 ms
Output circuit insulationMechanical insulation
Indication of output operationLED is lit when output is on

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX5-16ER/ES: frequently asked questions

When can FX5-16ER/ES be shipped?

FX5-16ER/ES is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-16ER/ES in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-16ER/ES and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-16ER/ES, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

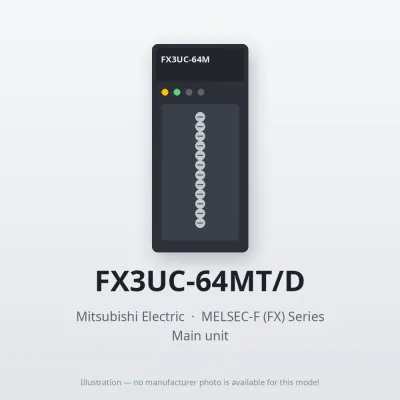

Mitsubishi Electric FX3UC-64MT/D – Mitsubishi MELSEC-F (FX) Series Main unit
