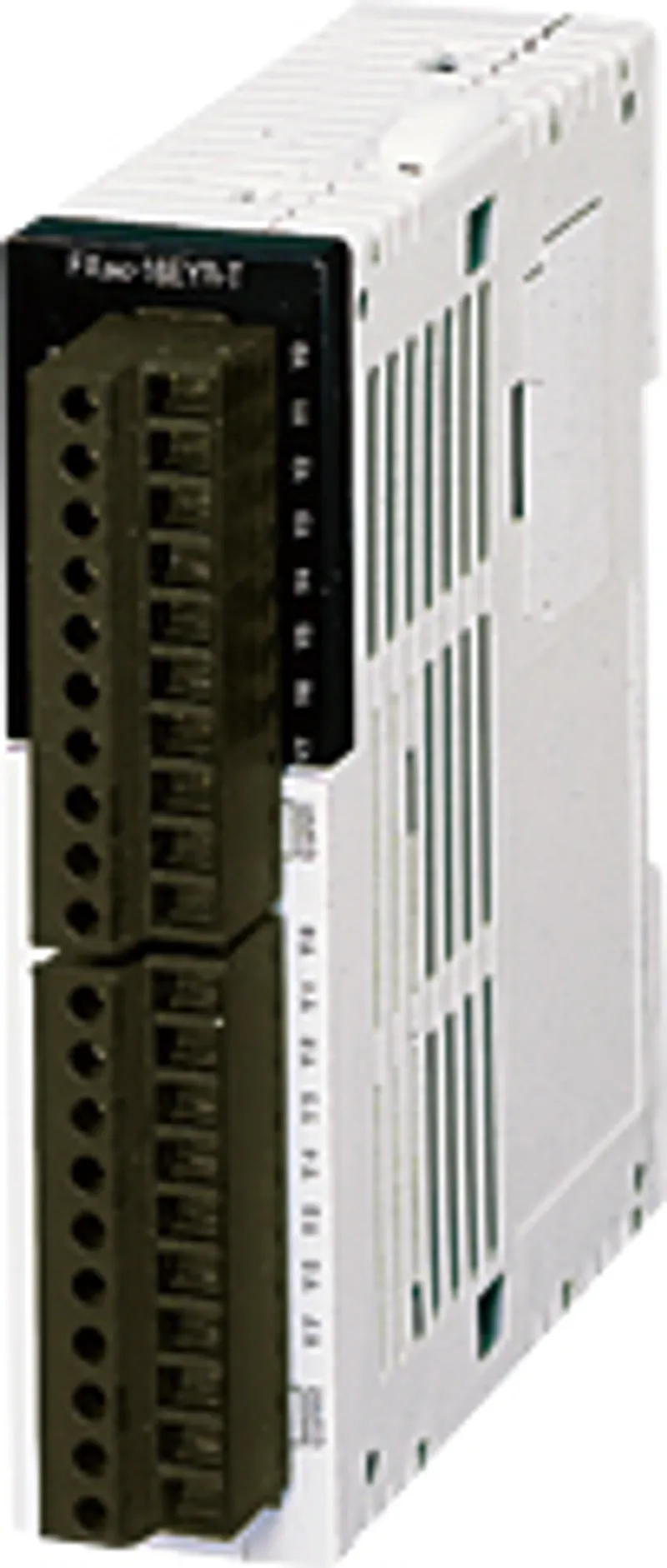

FX2NC-16EYR-T Mitsubishi MELSEC-F (FX) Series Input/output extension

MPN: FX2NC-16EYR-T · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Input/output extension
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX2NC-16EYR-T be shipped?

FX2NC-16EYR-T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2NC-16EYR-T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2NC-16EYR-T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2NC-16EYR-T, subject to availability and destination.

The Mitsubishi Electric FX2NC-16EYR-T is a input/output extension in the MELSEC-F (FX) Series. Output: 16 points. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Input/output extension
Sales status	2028/03 To be end of order (Mitsubishi Electric)
Outline	Output: 16 points

Specifications

Applicable PLC	FX1NC, FX3GC, FX2NC, FX3UC
Mass (weight)	0.15 kg

Power supply specifications

Rated voltage

PLC internal power

Output specifications

Power consumption	2.2 W
No. of output points	16 points
Output connection type	Terminal block for Europe
Output type	Relay
External power supply	30 V DC or less 250 V AC or less
Max. load: Resistance load	2 A/1 point When using one COM□ terminal, the total load of the 8 resistance load points must be 4 A or less. When connecting two COM□ terminals externally, the total load of the 8 resistance load points must be 8 A or less.
Max. load: Inductive load	80 VA
Min. load	5 V DC, 2 mA (reference value)
Response time: OFF→ON	Approx. 10 ms
Response time: ON→OFF	Approx. 10 ms
Insulation of circuit	Mechanical insulation
Indication of output operation	When power is applied to relay coil, LED is lit.

Specifications

Ambient temperature	0 to 55°C when operating and -20 to 70°C when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2.
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between output terminal (relay) of extension output block and ground terminal: 500 V AC for 1 min
Insulation resistance	Between output terminal (relay) of extension output block and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
