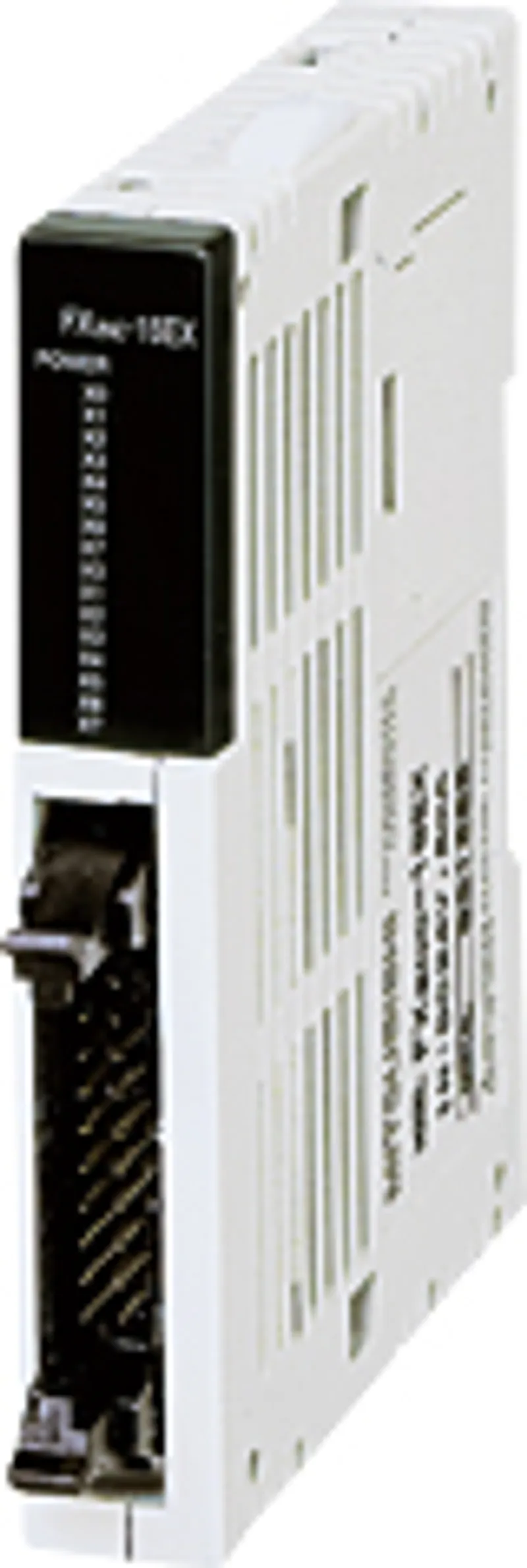

What is the Mitsubishi Electric FX2NC-16EX-D/UL?

The Mitsubishi Electric FX2NC-16EX-D/UL is a input/output extension in the MELSEC-F (FX) Series. Input: 16 points. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryInput/output extension
Sales status2028/03 To be end of order (Mitsubishi Electric)
OutlineInput: 16 points

Specifications

Applicable PLCFX1NC, FX3GC, FX2NC, FX3UC
Mass (weight)0.15 kg

Power supply specifications

Rated voltagePLC internal power

Input specifications

Power consumption2.2 W
No. of input points16 points
Input connection typeConnector
Input typeSink
Input signal formNo-voltage contact input or NPN open collector transistor
Input signal voltage24 V DC +20% -15% Ripple voltage (p-p) 5% or less
Input signal current5 mA/24 V DC
Input impedance4.3 kΩ
ON input sensitivity current3.5 mA or more
OFF input sensitivity current1.5 mA or less
Input response timeApprox. 10 ms
Input circuit insulationPhotocoupler insulation
Indication of input operationLED is lit when input is on

Specifications

Ambient temperature0 to 55°C when operating and -20 to 70°C when stored
Ambient humidity35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzAmplitude: 0.035mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2.
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween input terminal of extension input block and ground terminal: 500 V AC for 1 min
Insulation resistanceBetween input terminal of extension input block and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
